斗山零件查询OIL TANK SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
396 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

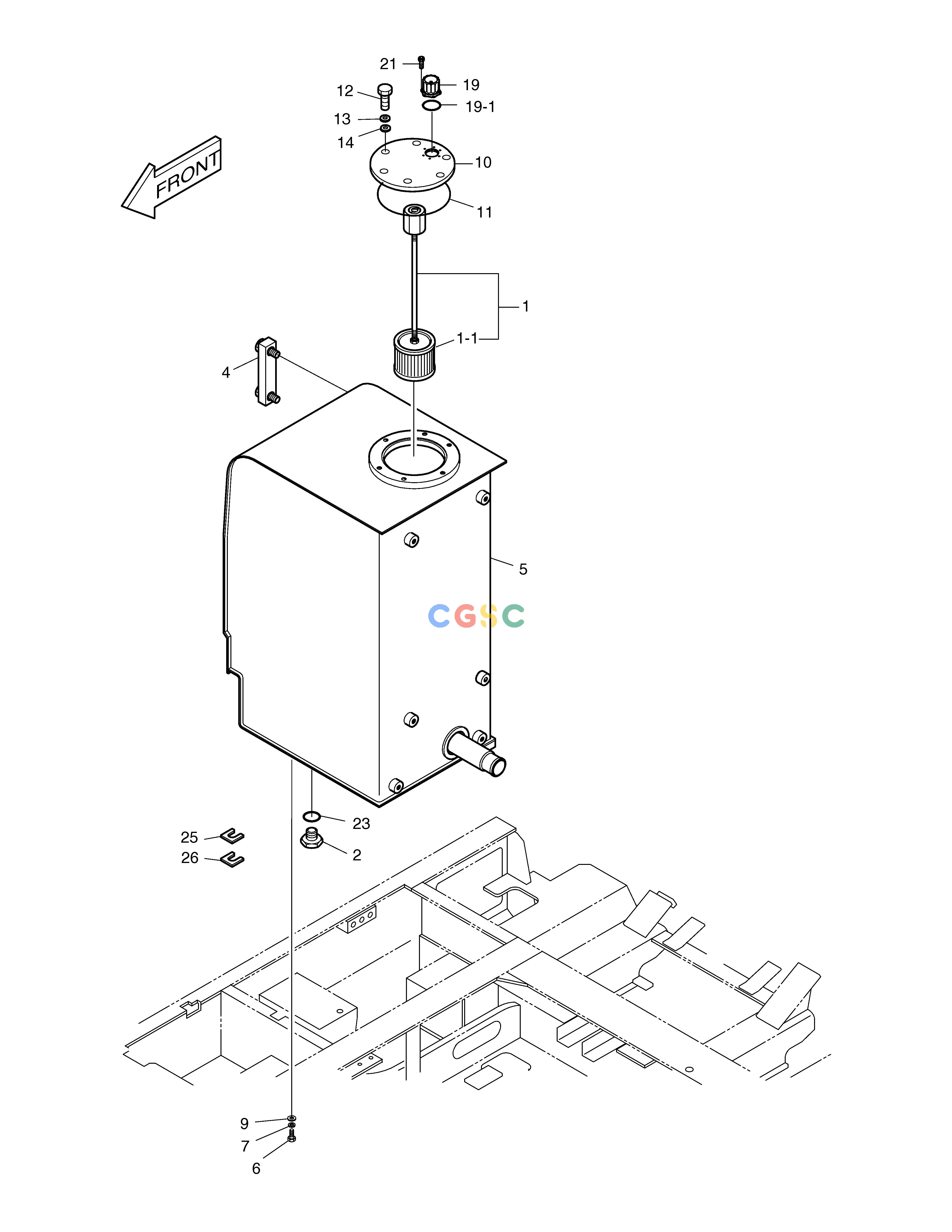

620-00001
|
[-] |
OIL TANK
|
|
| 1. |
471-00040
|
[1] |
FILTER;SUCTION
|
|
| 1-1. |
471-00052
|
[1] |
FILTER;SUCTION
|
|
| 10. |
2621-3308G
|
[1] |
COVER
|
|
| 11. |
S8011251
|
[1] |
O-RING
|
|
| 12. |
S0508653
|
[6] |
BOLT
|
|
| 13. |
S5102503
|
[6] |
. WASHER
|
|
| 14. |
S5010513
|
[6] |
WASHER
|
|
| 19. |
422-00027A
|
[1] |
BREATHER;AIR
|
|
| 19-1. |
180-00200
|
[1] |
PACKING
|
|
| 2. |
2181-1950D9
|
[1] |
PLUG
|
|
| 21. |
S2202761
|
[6] |
BOLT;SOCKET M5X0.8X8
|
|
| 23. |
S8000291
|
[1] |
O-RING
|
|
| 25. |
2114-1300
|
[2] |
SHIM
|
|
| 26. |
2114-1302
|
[2] |
SHIM
|
|
| 4. |
528-00034
|
[1] |
GAUGE;LEVEL
|
|
| 5. |
620-00036A
|
[1] |
TANK;HYD OIL
|
|
| 6. |
S0512053
|
[3] |
BOLT
|
|
| 7. |
S5102603
|
[3] |
. WASHER
|
|
| 9. |
2114-1058D5
|
[3] |
WASHER;PLAIN M10
|
|
