纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[007]) - WINTERIZATION-HEATER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
112 次

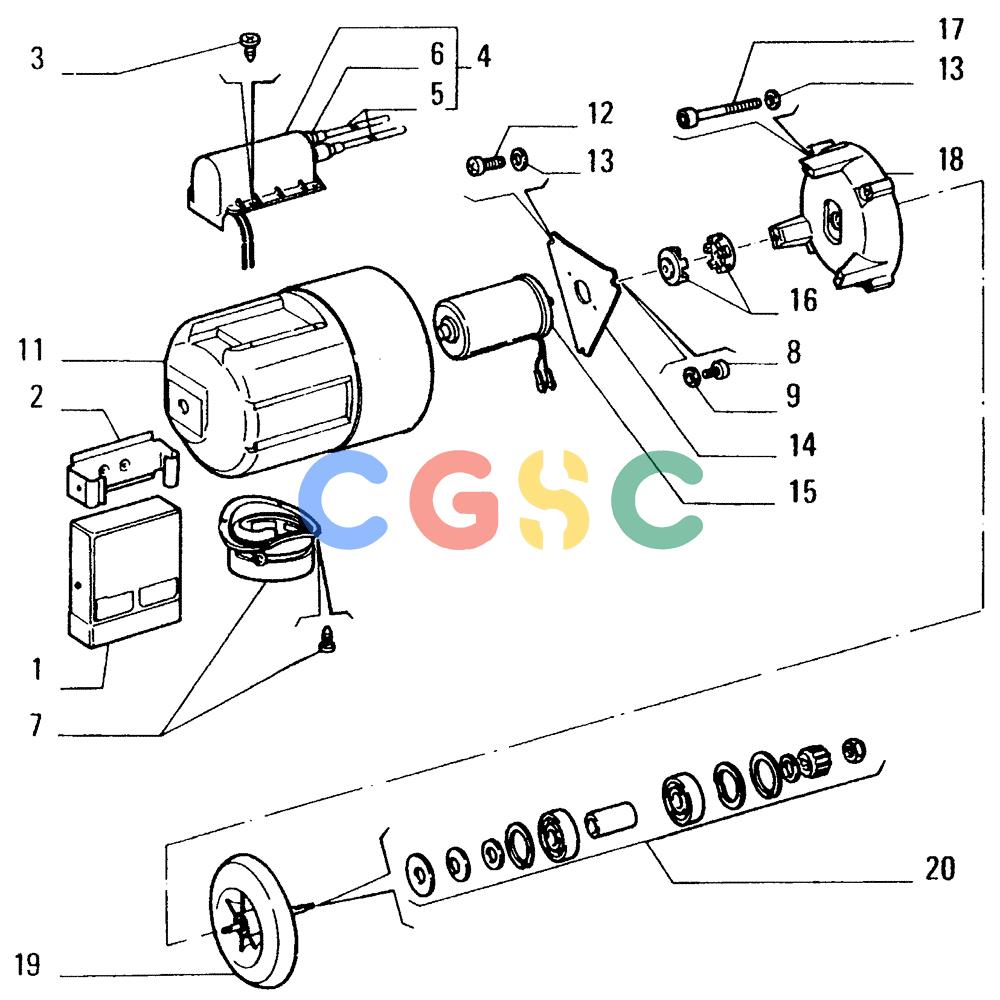

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76014207 | [1] | CASE | LEC |
| 2. | 79083438 | [1] | SUPPORT | LEC |
| 3. | 15901501 | [4] | SCREW | LEC Superseded by part number: 15901507 |
| 4. | 79083439 | [1] | COIL | LEC |
| 5. | 79083440 | [2] | GASKET | LECSEAL |
| 6. | 79083441 | [1] | ELECTRIC CABLE | LECCABLE |
| 7. | 79083442 | [1] | FLANGE | LEC |
| 8. | 13272011 | [4] | SCREW,Pozidriv Pan Hd, M4 x 12mm, Cl 5.8, Full Thd | LEC Superseded by part number: 13272024 |
| 11. | 79083444 | [1] | CASE | LEC |
| 12. | 80043982 | [3] | SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8 | BRR |
| 13. | 12035471 | [7] | LOCK WASHER | PLOLOCKWASHER |
| 14. | 79083445 | [1] | FLANGE | LEC |
| 15. | 79083446 | [1] | SMALL ELECTRIC MOTOR | LECELECTRIC MOTOR |
| 16. | 79083447 | [2] | HALF-COUPLING | LECHALF COUPLING |
| 17. | 14358721 | [4] | HEX SOC SCREW,M5 x 35mm, Cl 8.8 | MKT Superseded by part number: 1190772 |
| 18. | 79083449 | [1] | SUPPORT | LEC |
| 19. | 79083450 | [1] | BLOWER | LEC |
| 20. | 79083451 | [1] | KIT | LEC |
