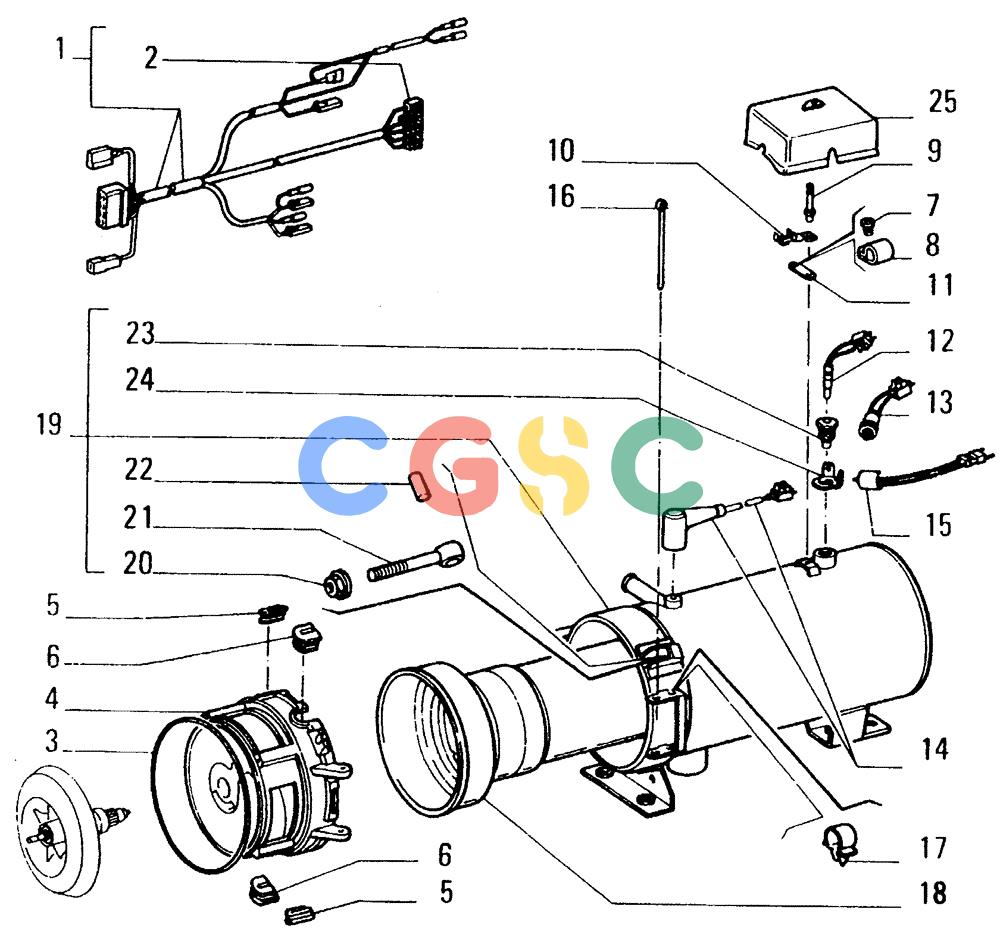

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[008]) - WINTERIZATION-HEATER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
977 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79083497 | [1] | ELECTRIC CABLE | LECCABLE |
| 2. | 79083448 | [1] | CONNECTING BLOCK | LECCONNECTION BLOCK |
| 3. | 79083452 | [1] | RING | LEC |
| 4. | 79083453 | [1] | BODY | LEC |
| 5. | 79083454 | [2] | GASKET | LECSEAL |
| 6. | 79083455 | [2] | GASKET | LECSEAL |
| 7. | 13271811 | [1] | SCREW,Cross Pan Hd, M4 x 8mm | MKT Superseded by part number: 13271814 |
| 8. | 79083479 | [1] | CLAMP | LEC |
| 9. | 79083480 | [1] | STUD | LEC |
| 10. | 79083481 | [1] | SUPPORT | LEC |
| 11. | 79083482 | [1] | BRACKET | LEC |
| 12. | 79083483 | [1] | FUSE | LEC |
| 13. | 79083486 | [1] | TRAVEL LIMITER | LEC |
| 14. | 79083487 | [1] | THERMOSTAT | LEC |
| 15. | 79083488 | [1] | THERMOSTAT | LEC |
| 16. | 10804801 | [1] | COTTER PIN,M6.3 x 96 | LEC5,7x122,6 |
| 17. | 79083489 | [1] | CLIP | LEC |
| 18. | 79083490 | [1] | CYLINDER | LEC |
| 19. | 79083491 | [1] | HEAT EXCHANGER | LEC |
| 20. | 79083492 | [2] | NUT | LEC |
| 21. | 79083493 | [2] | HYDRAULIC VALVE | LECVALVE |
| 22. | 79083494 | [2] | PIN | LEC |
| 23. | 79083495 | [1] | HYD CONNECTOR | LECFITTING |
| 24. | 79083496 | [1] | CLIP | LEC |
| 25. | 79083478 | [1] | COVER | LEC |
