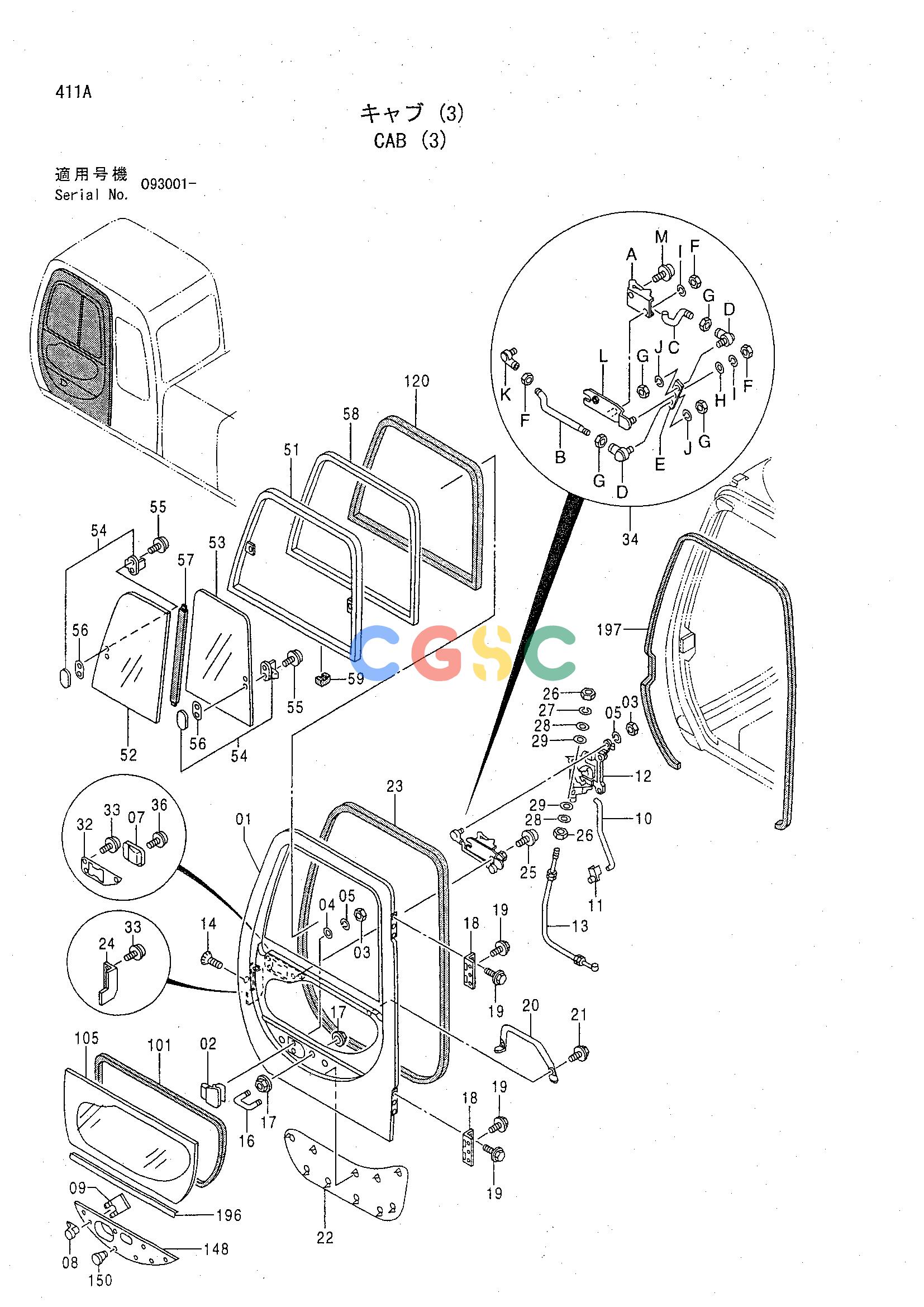

日立零件查询（CHR70）CAB (3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
886 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01-19. | 4369629 | [1] | DOOR ASS'Y | |
| 01. | 4369630 | [1] | DOOR | |
| 02. | 4369645 | [1] | HANDL;OUTER | |
| 03. | M500605 | [3] | NUT | |
| 04. | A590106 | [2] | WASHER;PLANE | |
| 05. | A590906 | [3] | WASHER;SPRING | |
| 07. | 4369633 | [1] | COVER | |
| 08. | 4362135 | [1] | LOCK;DOOR | |
| 09. | 4372091 | [1] | CLIP | |
| 10. | 4369643 | [1] | ROD | |
| 11. | 4372092 | [1] | HOLDER | |
| 12. | 4369631 | [1] | LOCK;DOOR | |
| 13. | 4369642 | [1] | WIRE | |
| 14. | 4382885 | [3] | SCREW;SEMS | |
| 16. | 4369661 | [1] | BOLT;U | |
| 17. | 4295662 | [4] | NUT | |
| 18. | 4369648 | [2] | HINGE;DOOR | |
| 19. | 4372261 | [12] | BOLT;SEMS | |
| 20. | 4369646 | [1] | HANDRAIL | |
| 21. | 4372225 | [2] | BOLT;SEMS | |
| 22. | 4369647 | [1] | SHEET | |
| 23. | 4369662 | [1] | WEATHER-STRIP | |
| 24. | 4369632 | [1] | COVER | |
| 25. | J680616 | [2] | SCREW;SEMS | |
| 26. | M500504 | [2] | NUT | |
| 27. | A590905 | [1] | WASHER;SPRING | |
| 28. | A590105 | [2] | WASHER;PLANE | |
| 29. | A590108 | [2] | WASHER;PLANE | |
| 32. | 4369644 | [1] | COVER | |
| 33. | J680510 | [5] | SCREW;SEMS | |
| 34. | 4369634 | [1] | HANDLE;INNER | |
| 34A. | 4369635 | [1] | LEVER | |
| 34B. | 4369636 | [1] | ROD | |
| 34C. | 4369637 | [1] | ROD | |
| 34D. | 4369638 | [2] | JOINT;BALL | |
| 34E. | 4369639 | [1] | PLATE | |
| 34F. | 4372215 | [3] | NUT | |
| 34G. | 4372216 | [4] | NUT | |
| 34H. | A590106 | [1] | WASHER;PLANE | |
| 34I. | A590906 | [2] | WASHER;SPRING | |
| 34J. | A590904 | [2] | WASHER;SPRING | |
| 34K. | 4369640 | [1] | JOINT;BALL | |
| 34L. | 4369641 | [1] | BRACKET;LEVER | |
| 34M. | J450614 | [1] | SCREW;SEMS | |
| 36. | J660512 | [1] | SCREW;SEMS | |
| 51-59. | 4379639 | [1] | SASH ASS'Y | |
| 51. | 4398091 | [1] | SASH | |
| 52. | 4398017 | [1] | GLASS | |
| 53. | 4398018 | [1] | GLASS | |
| 54. | 4369653 | [2] | LOCK | |
| 55. | J680410 | [4] | SCREW;SEMS | |
| 56. | 4372093 | [2] | SPACER | |
| 57. | 4398016 | [1] | SEAL | |
| 58. | 4398019 | [1] | SASH | |
| 59. | 4147896 | [8] | SPACER | |
| 101. | 4400087 | [1] | SEAL;RUBBER | |
| 105. | 4369657 | [1] | GLASS | |
| 120. | 4369656 | [1] | RUBBER | |
| 148. | 4369658 | [1] | PANEL | |
| 150. | 4369659 | [7] | CLIP | |
| 196. | 4369660 | [1] | RUBBER | |
| 197. | 4369663 | [1] | RUBBER | |
