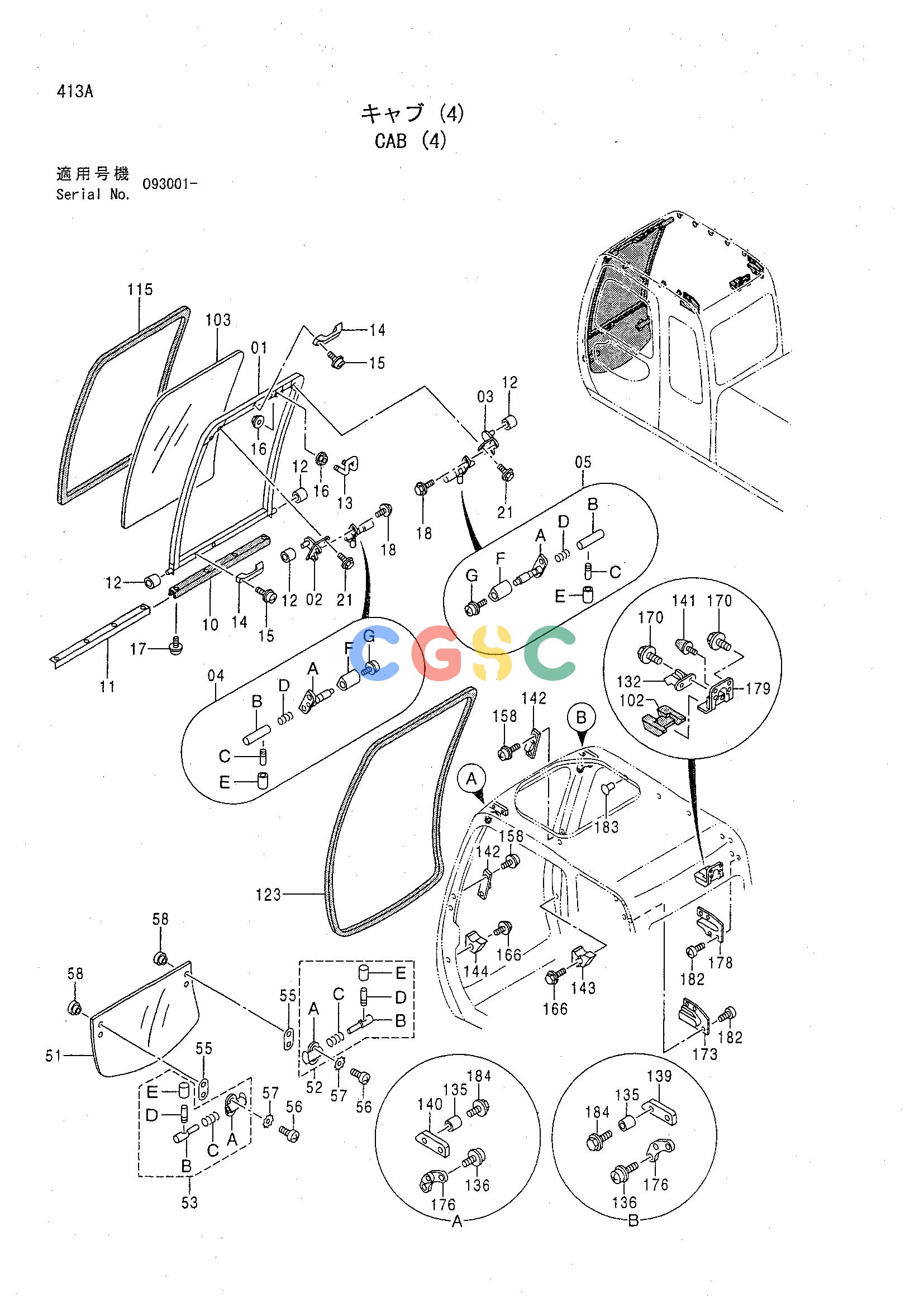

日立零件查询（CHR70）CAB (4) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
137 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01-21. | 4369595 | [1] | FRONT WINDOW ASS'Y | |
| 01. | 4369596 | [1] | FRAME;WINDOW | |
| 02. | 4369604 | [1] | BRACKET | |
| 03. | 4369603 | [1] | BRACKET | |
| 04. | 4395903 | [1] | LATCH;L ASS'Y | |
| 04A. | 4369602 | [1] | CASE | |
| 04B. | 4403327 | [1] | SHAFT | |
| 04C. | 4295480 | [1] | LEVER | |
| 04D. | 494918 | [1] | SPRING A | |
| 04E. | 4295876 | [1] | COVER | |
| 04F. | 4369600 | [1] | COVER | |
| 04G. | J680514 | [1] | SCREW;SEMS | |
| 05. | 4395902 | [1] | LATCH;R ASS'Y | |
| 05A. | 4369598 | [1] | CASE | |
| 05B. | 4403327 | [1] | SHAFT | |
| 05C. | 4295480 | [1] | LEVER | |
| 05D. | 494918 | [1] | SPRING A | |
| 05E. | 4295876 | [1] | COVER | |
| 05F. | 4369600 | [1] | COVER | |
| 05G. | J680514 | [1] | SCREW;SEMS | |
| 10. | 4369607 | [1] | RUBBER | |
| 11. | 4369608 | [1] | PLATE | |
| 12. | 4369606 | [4] | ROLLER | |
| 13. | 4369605 | [1] | STRIKER | |
| 14. | 4204579 | [2] | NANDLE | |
| 15. | J460616 | [4] | SCREW;SEMS | |
| 16. | 4414857 | [4] | NUT | |
| 17. | 4372214 | [4] | SCREW;TAPPING | |
| 18. | 4372225 | [4] | BOLT;SEMS | |
| 21. | 4377824 | [4] | BOLT;SEMS | |
| 51-58. | 4369587 | [1] | LOWER WINDOW ASS'Y | |
| 51. | 4369588 | [1] | GLASS | |
| 52. | 4395905 | [1] | LATCH;R ASS'Y | |
| 52A. | 4369590 | [1] | LATCH | |
| 52B. | 4369591 | [1] | SHAFT | |
| 52C. | 494918 | [1] | SPRING A | |
| 52D. | 4295480 | [1] | LEVER | |
| 52E. | 4295876 | [1] | COVER | |
| 53. | 4395904 | [1] | LATCH;L ASS'Y | |
| 53A. | 4369593 | [1] | LATCH | |
| 53B. | 4204547 | [1] | PIN | |
| 53C. | 494918 | [1] | SPRING A | |
| 53D. | 4295480 | [1] | LEVER | |
| 53E. | 4295876 | [1] | COVER | |
| 55. | 4369594 | [2] | PACKING | |
| 56. | 4372213 | [4] | SCREW | |
| 57. | 4372561 | [4] | WSHER | |
| 58. | 4369674 | [4] | RETAINER | |
| 102. | 4369563 | [1] | COVER | |
| 103. | 4369609 | [1] | GLASS | |
| 115. | 4369610 | [1] | RUBBER | |
| 123. | 4369586 | [1] | RUBBER | |
| 132. | 4369562 | [1] | LOCK | |
| 135. | 4369582 | [4] | COLLAR | |
| 136. | 4372210 | [4] | SCREW;SEMS | |
| 139. | 4369580 | [1] | STOPPER | |
| 140. | 4369581 | [1] | STOPPER | |
| 141. | 4204586 | [1] | STOPPER | |
| 142. | 4369578 | [4] | STOPPER | |
| 143. | 4403593 | [1] | STOPPER | |
| 144. | 4403594 | [1] | STOPPER | |
| 158. | 4372211 | [12] | SCREW;SEMS | |
| 166. | 4372221 | [2] | BOLT;SEMS | |
| 170. | 4372222 | [6] | BOLT;SEMS | |
| 173. | 4369584 | [1] | COVER | |
| 176. | 4369579 | [2] | GUIDE | |
| 178. | 4369583 | [1] | COVER | |
| 179. | 4369564 | [1] | BRACKET | |
| 182. | J680614 | [8] | SCREW;SEMS | |
| 183. | 4372088 | [10] | CLIP | |
| 184. | 4372224 | [4] | BOLT;SEMS | |
