纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[010]) - WINTERIZATION-HEATER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
864 次

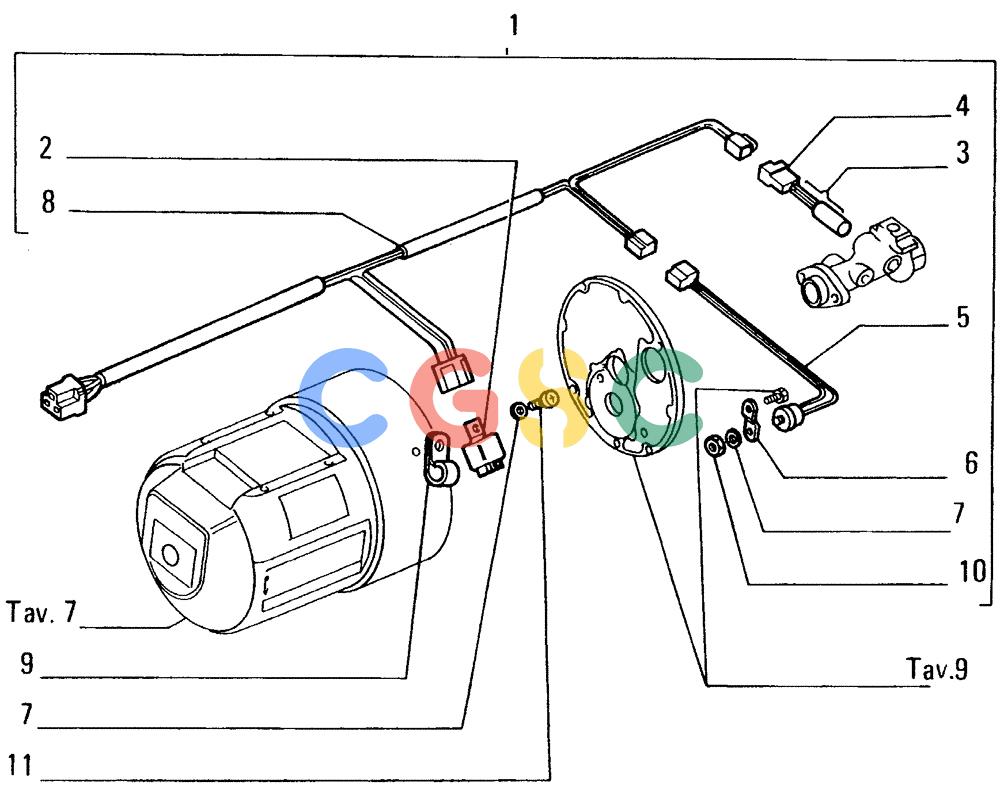

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79101970 | [1] | HEATER | LEC- ASSEMBLY |
| 2. | 79101973 | [1] | RELAY | LEC |
| 3. | 79101977 | [1] | SUPPORT | NH |
| 4. | 79101978 | [1] | GLOW PLUG | LEC |
| 5. | 79101976 | [1] | THERMOSTAT | LEC |
| 6. | 79101975 | [1] | PLATE | NH |
| 8. | 79101971 | [1] | CABLE | NH |
| 9. | 79083443 | [1] | CLAMP | LEC |
| 10. | 79101974 | [1] | NUT | NH |
| 11. | 13272011 | [2] | SCREW,Pozidriv Pan Hd, M4 x 12mm, Cl 5.8, Full Thd | LEC Superseded by part number: 13272024 |
