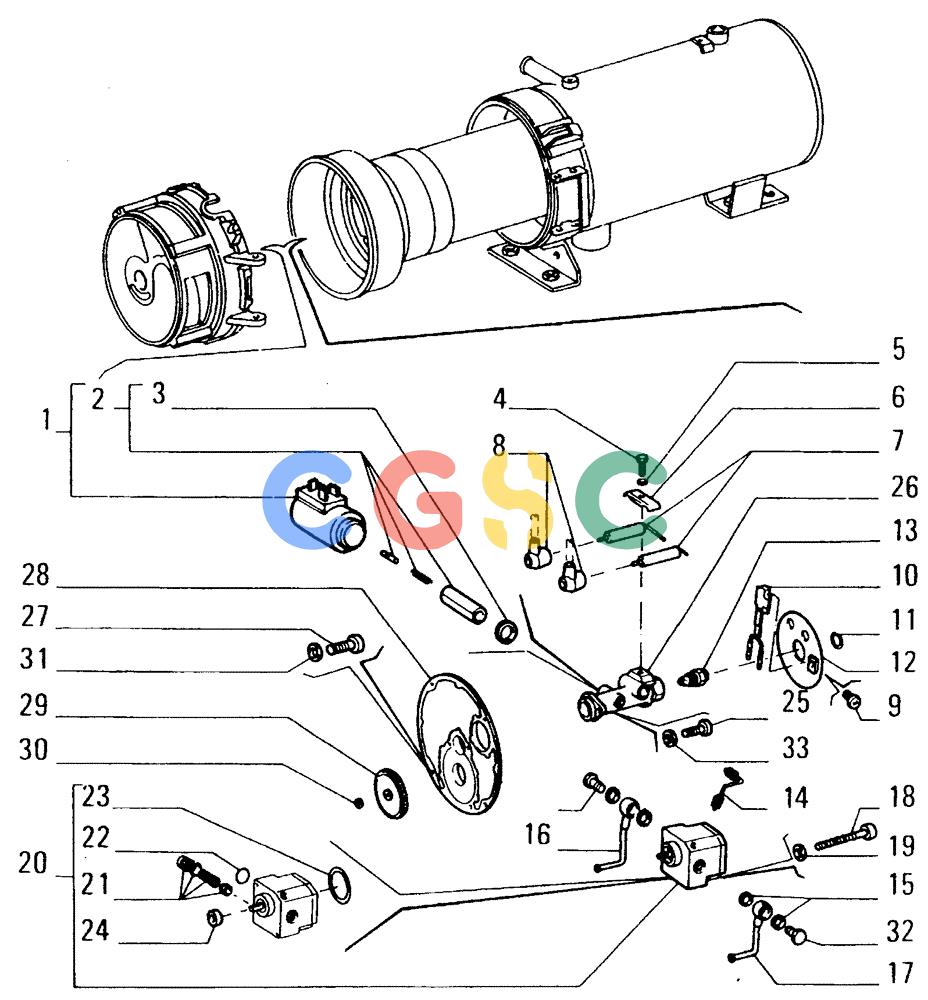

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[009]) - WINTERIZATION-HEATER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
337 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79083456 | [1] | PISTON SWIVEL HEAD | LECHEAD |
| 2. | 79083457 | [1] | KIT | LEC |
| 3. | 79083458 | [1] | GASKET | LECSEAL |
| 4. | 10902221 | [1] | BOLT,Hex, M6 x 16mm, CL 8.8 | BHBBOLT, Hex, M6 x 16, 8.8 Superseded by part number: |
| 5. | 12035670 | [1] | LOCK WASHER | TTFLOCKWASHER 6,1x1,3 Superseded by part number: 86517328 |
| 6. | 79083459 | [1] | BRACKET | LEC |
| 7. | 79083460 | [2] | ROD-TIP | LECPUSH ROD |
| 8. | 79083461 | [2] | PIN | LEC |
| 9. | 13271611 | [1] | SCREW | MKT Superseded by part number: 13271614 |
| 10. | 79083462 | [1] | RESISTOR | LECRESISTANCE |
| 11. | 79083463 | [1] | RING NUT | LEC |
| 12. | 79083464 | [1] | DISC | LEC |
| 13. | 79083465 | [1] | LUBE OIL NOZZLE | LECJET |
| 14. | 79083466 | [1] | RIGID TUBE | LECTUBE |
| 15. | 4858606 | [4] | SEAL,10.2mm ID x 16mm OD x 1mm Thk | TTFGASKET 10,2x14 |
| 16. | 79083468 | [1] | RIGID TUBE | LECTUBE |
| 17. | 79083469 | [1] | RIGID TUBE | LECTUBE |
| 18. | 14303521 | [2] | SCREW | LEC Superseded by part number: 14303531 |
| 19. | 12035370 | [4] | LOCK WASHER | MKTLOCKWASHER Superseded by part number: |
| 20. | 79083470 | [1] | HYDRAULIC PUMP | LECPUMP |
| 21. | 79083471 | [1] | HYDRAULIC VALVE | LECVALVE |
| 22. | 79083472 | [1] | FILTER | LEC |
| 23. | 79083473 | [1] | GASKET | LECSEAL |
| 24. | 79083474 | [1] | GASKET | LECSEAL |
| 25. | 10444621 | [2] | SCREW | MKT4x0,7x12 |
| 26. | 79083475 | [1] | INJECTOR NOZZLE HOLDER | LECNOZZLE HOLDER |
| 27. | 14304121 | [4] | HEX SOC SCREW,M5 x 12mm, Cl 8.8 | LECSCREW 5x0,8x12 Superseded by part number: |
| 28. | 79083476 | [1] | SUPPORT | LEC |
| 29. | 79083477 | [1] | GEAR | LEC |
| 30. | 86507012 | [1] | SNAP RING,M6, Ext | IMORING, SNAP, M6, Ext |
| 31. | 12035471 | [4] | LOCK WASHER | PLOLOCKWASHER |
| 32. | 79083467 | [2] | SCREW | LEC |
