| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

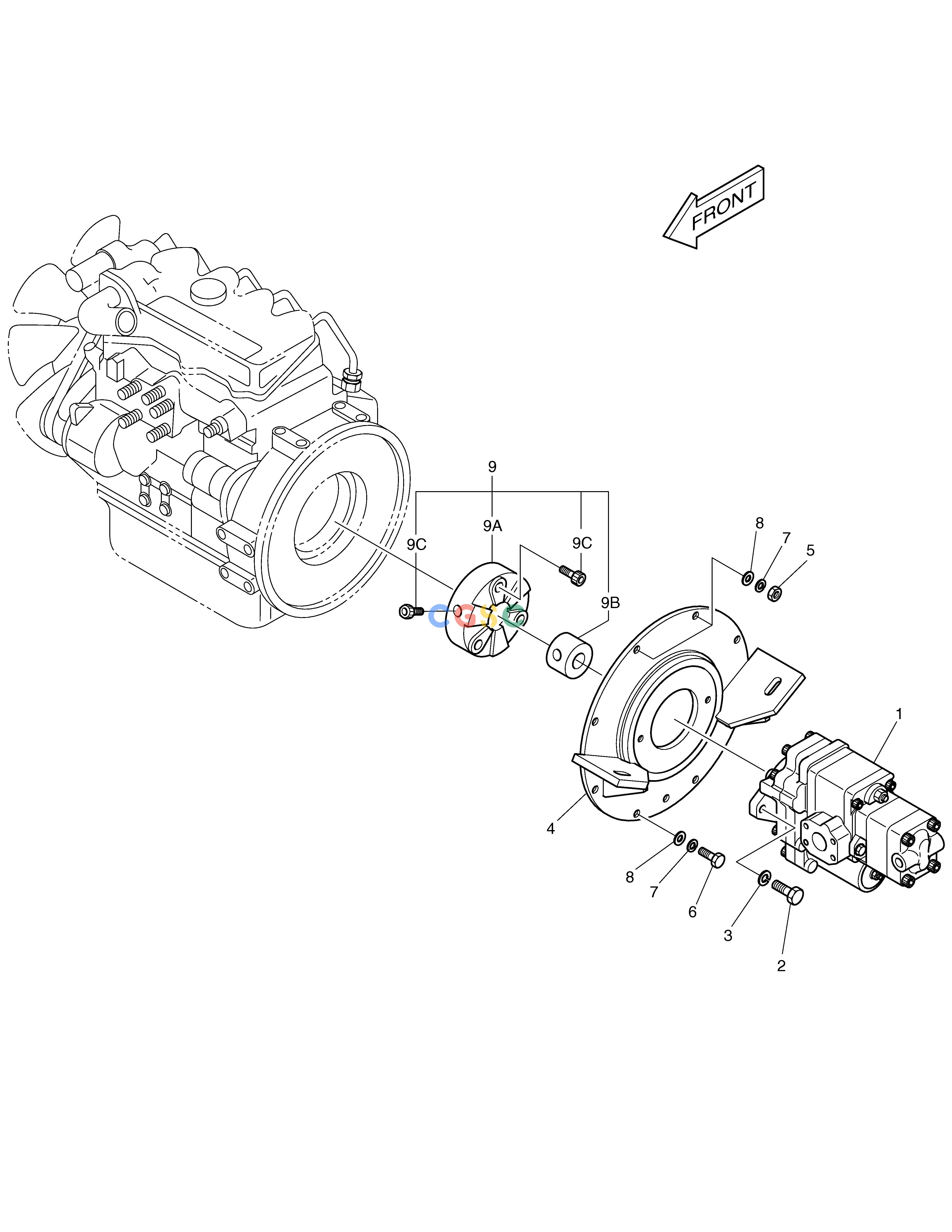

| -. | 401-00287 | [-] | PUMP MOUNTING | |
| 1. | 401-00261A | [1] | PUMP;MAIN | |
| 2. | S0515253 | [2] | . BOLT | |
| 3. | S5102703 | [2] | WASHER | |
| 4. | 2215-1022A | [1] | PUMP FLANGE ASS'Y | |
| 5. | S4012633 | [2] | NUT | |
| 6. | S0512053 | [6] | BOLT | |
| 7. | S5102603 | [8] | . WASHER | |
| 8. | S5010613 | [8] | WASHER | |
| 9. | 2414-9046 | [1] | COUPLING ASS'Y | |
| 9A. | K9000413 | [1] | RUBBER | |
| 9B. | NA00546 | [1] | HUB | |
| 9C. | K9000414 | [1] | SOCKET BOLT SET(6EA) |
