斗山零件查询PILOT PIPING(2) SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
557 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

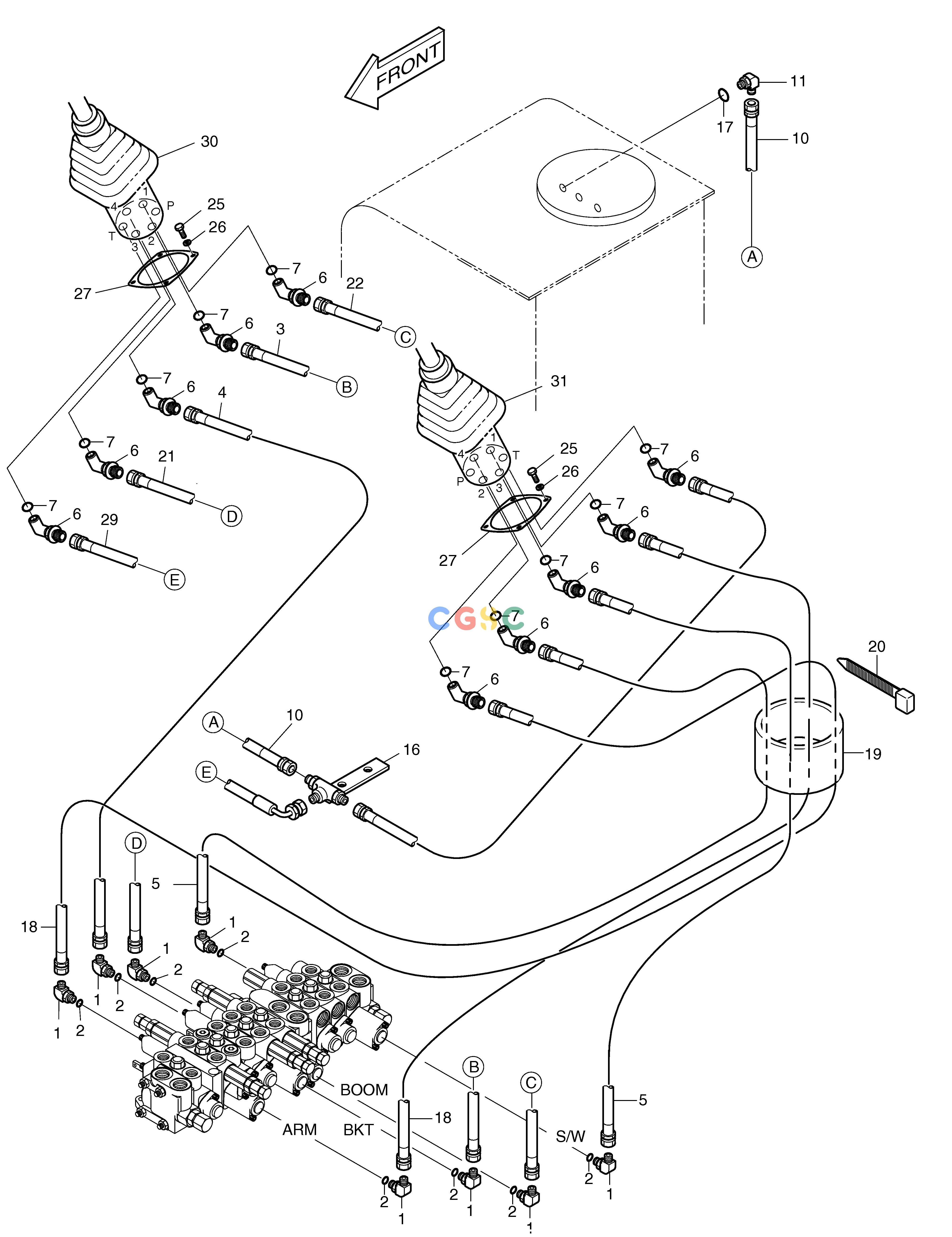

2400-2023
|
[-] |
PILOT PIPING
|
|
| 1. |
2181-1702D4
|
[8] |
ELBOW
|
|
| 10. |
2184-1026D90
|
[1] |
HOSE PF1/4-1100L
|
|
| 11. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 16. |
2423-1449B
|
[1] |
MANIFOLD
|
|
| 17. |
S8000111
|
[1] |
O-RING
|
|
| 18. |
2184-1045D115
|
[3] |
HOSE PF1/4-1280L
|
|
| 19. |
2161-2117
|
[4] |
PLATE;RUBBER
|
|
| 2. |
S8000111
|
[8] |
O-RING
|
|
| 20. |
2124-1084D3
|
[8] |
CLIP;BAND
|
|
| 21. |
2184-1045D221
|
[1] |
HOSE PF1/4-1650L
|
|
| 22. |
2184-1045D103
|
[1] |
HOSE PF1/4-1950L
|
|
| 25. |
S0505053
|
[8] |
BOLT
|
|
| 26. |
S5102303
|
[8] |
. WASHER
|
|
| 27. |
2621-2752
|
[2] |
PLATE
|
|
| 29. |
2184-1046D147
|
[1] |
HOSE PF1/4-1000L
|
|
| 3. |
2184-1045D110
|
[1] |
HOSE PF1/4-1850L
|
|
| 30. |
420-00449
|
[1] |
JOYSTICK(R.H)
|
420-00449A
|
| 30. |
420-00449A
|
[1] |
JOYSTICK(R.H)
|
|
| 31. |
420-00450
|
[1] |
JOYSTICK(L.H)
|
420-00450A
|
| 31. |
420-00450A
|
[1] |
JOYSTICK(L.H)
|
|
| 4. |
2184-1045D110
|
[1] |
HOSE PF1/4-1850L
|
|
| 5. |
2184-1045D210
|
[2] |
HOSE PF1/4-1040L
|
|
| 6. |
2181-2430D1
|
[10] |
ELBOW
|
|
| 7. |
S8000111
|
[10] |
O-RING
|
|
