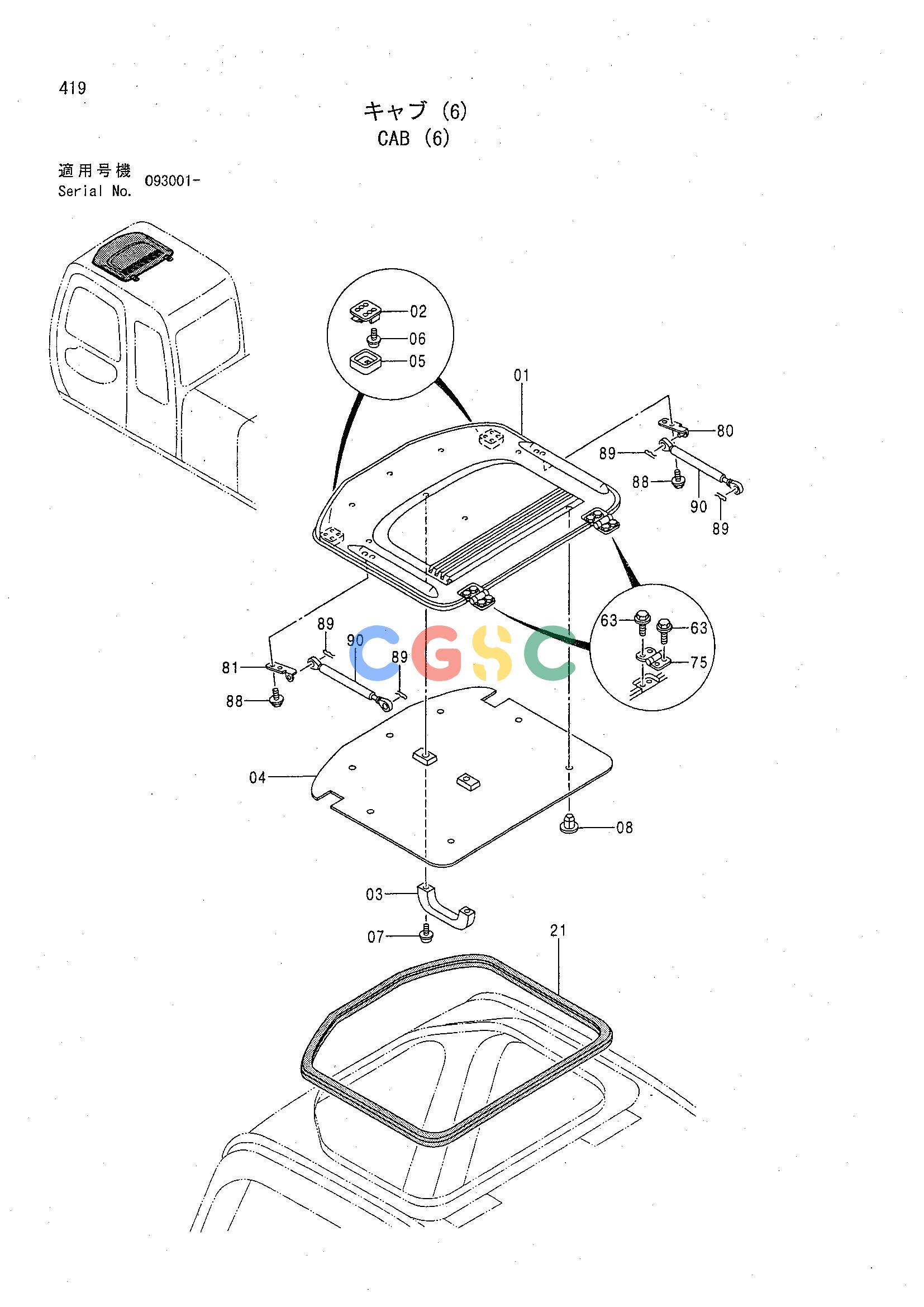

日立零件查询（CHR70）CAB (6) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
917 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01-08. | 4369611 | [1] | ROOF ASS'Y | |
| 01. | 4369612 | [1] | ROOF | |
| 02. | 4369615 | [2] | LOCK | |
| 03. | 4204579 | [1] | HANDLE | |
| 04. | 4369613 | [1] | SHEET | |
| 05. | 4369616 | [2] | COVER | |
| 06. | J460514 | [8] | SCREW;SEMS | |
| 07. | J460616 | [2] | SCREW;SEMS | |
| 08. | 4369614 | [7] | CLIP | |
| 21. | 4369553 | [2] | RUBBER | |
| 63. | 4372220 | [8] | BOLT;SEMS | |
| 75. | 4369620 | [2] | HINGE | |
| 80. | 4369617 | [1] | BRACKET;(R) | |
| 81. | 4369618 | [1] | BRACKET;(L) | |
| 88. | 4372222 | [4] | BOLT;SEMS | |
| 89. | 4022697 | [4] | PIN;LOCK | |
| 90. | 4369619 | [2] | SPRING | |
