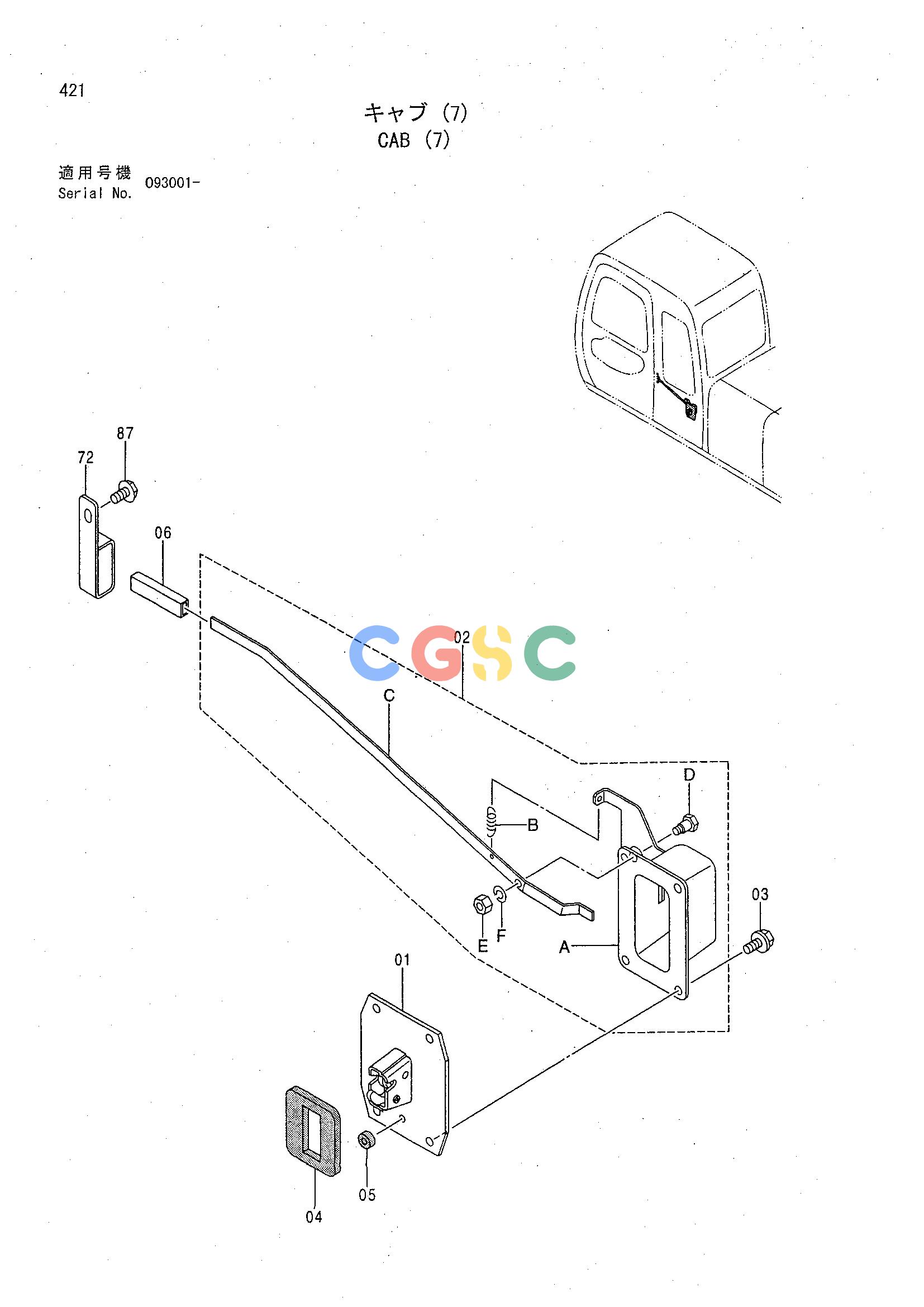

日立零件查询（CHR70）CAB (7) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
187 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01-06. | 4369621 | [4] | CATCH;DOOR ASS'Y | |
| 01. | 4372094 | [1] | CATCH;DOOR | |
| 02. | 4369622 | [1] | CASE ASS'Y | |
| 02A. | 4372095 | [1] | CASE | |
| 02B. | 4208103 | [1] | SPRING | |
| 02C. | 4369623 | [1] | LEVER | |
| 02D. | 4372209 | [1] | PIN | |
| 02E. | M500605 | [1] | NUT | |
| 02F. | A590906 | [1] | WASHER;SPRING | |
| 03. | J010820 | [4] | BOLT;SEMS | |
| 03. | J260820 | [4] | BOLT;SEMS | TJ900820 |
| 03. | J260820 | [4] | BOLT;SEMS | TA590108 |
| 04. | 4204590 | [1] | RUBBER | |
| 05. | 4204591 | [1] | RUBBER;SEAL | |
| 06. | 4089012 | [1] | CAP | |
| 72. | 4369624 | [1] | STOPPER | |
| 87. | 4372222 | [1] | BOLT;SEMS | |
