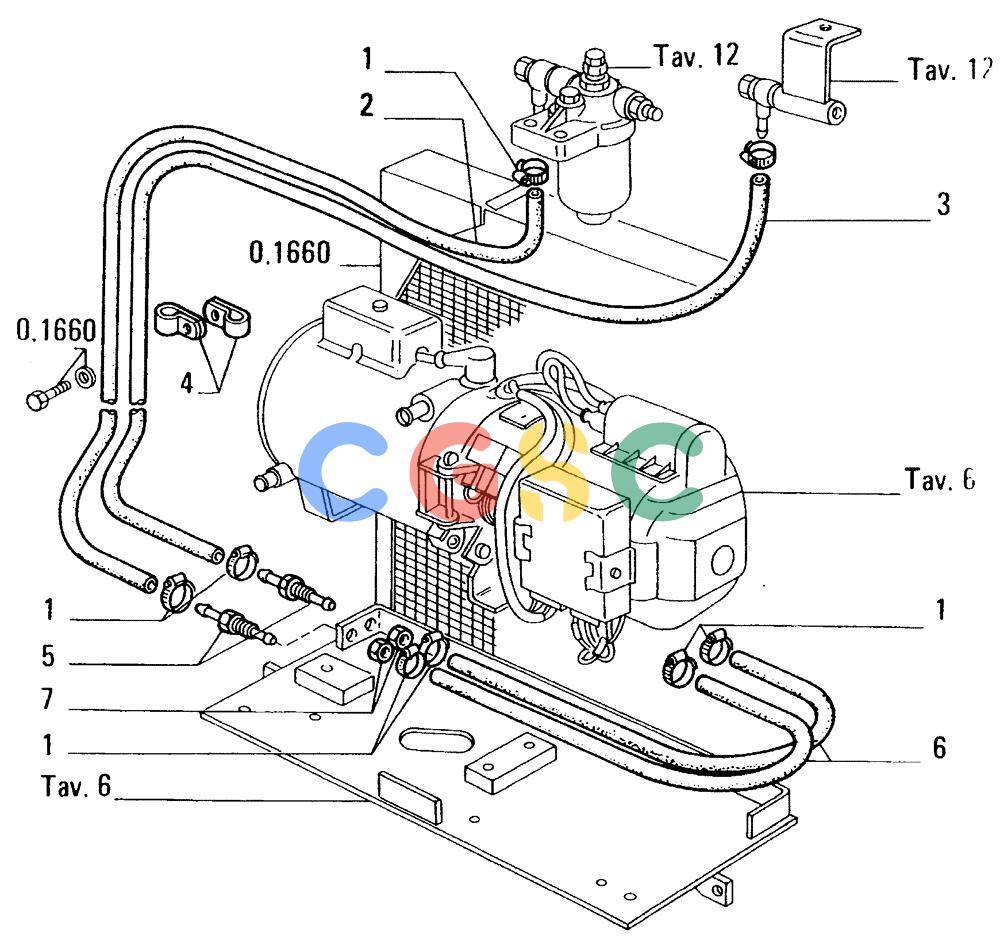

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[014]) - WINTERIZATION-PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
375 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79084752 | [8] | HOSE CLIP | LECCOLLAR Superseded by part number: 79084753 |
| 2. | 79100082 | [1] | HOSE | LEC Superseded by part number: 19056587 |
| 3. | 79100083 | [1] | HOSE | LEC Superseded by part number: 19056587 |
| 4. | 10450490 | [6] | CLAMP,16mm, Coat, 9mm Bolt Hole, P Type | LEC9mm hole dia. M16, 5/16" Bolt Superseded by part number: |
| 5. | 79099949 | [2] | HYD CONNECTOR | LECFITTING |
| 6. | 79100081 | [2] | HOSE | LEC |
| 7. | 12575621 | [2] | NUT | TTF10x1,25x10 Superseded by part number: 12574521 |
