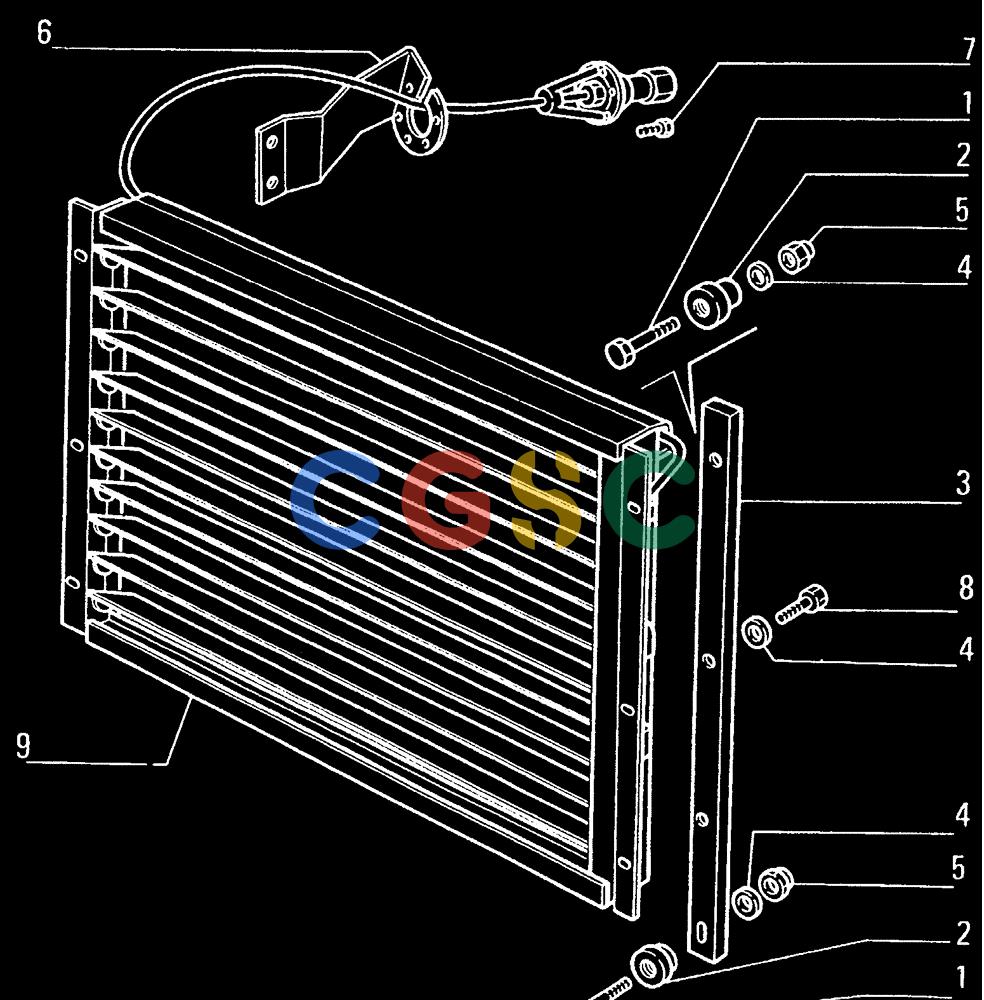

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[015]) - WINTERIZATION-CURTAIN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
655 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 16044031 | [4] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9 | LEC Superseded by part number: 9780069 |
| 2. | 79100066 | [4] | BUSHING | LEC |
| 3. | 79100067 | [2] | SHIM | LEC |
| 4. | 14496531 | [8] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 5. | 16104121 | [4] | NUT,M8 x 1.25, Cl 10 | LECNUT, LOCK, M8 x 1.25, Cl 10 Superseded by part number: 17152821 |
| 6. | 79100095 | [1] | BRACKET | LEC |
| 7. | 13273917 | [5] | SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 5.8, Full Thd | LEC Superseded by part number: 86585709 |
| 8. | 16043031 | [4] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
| 9. | 79100086 | [1] | CURTAIN | LEC |
