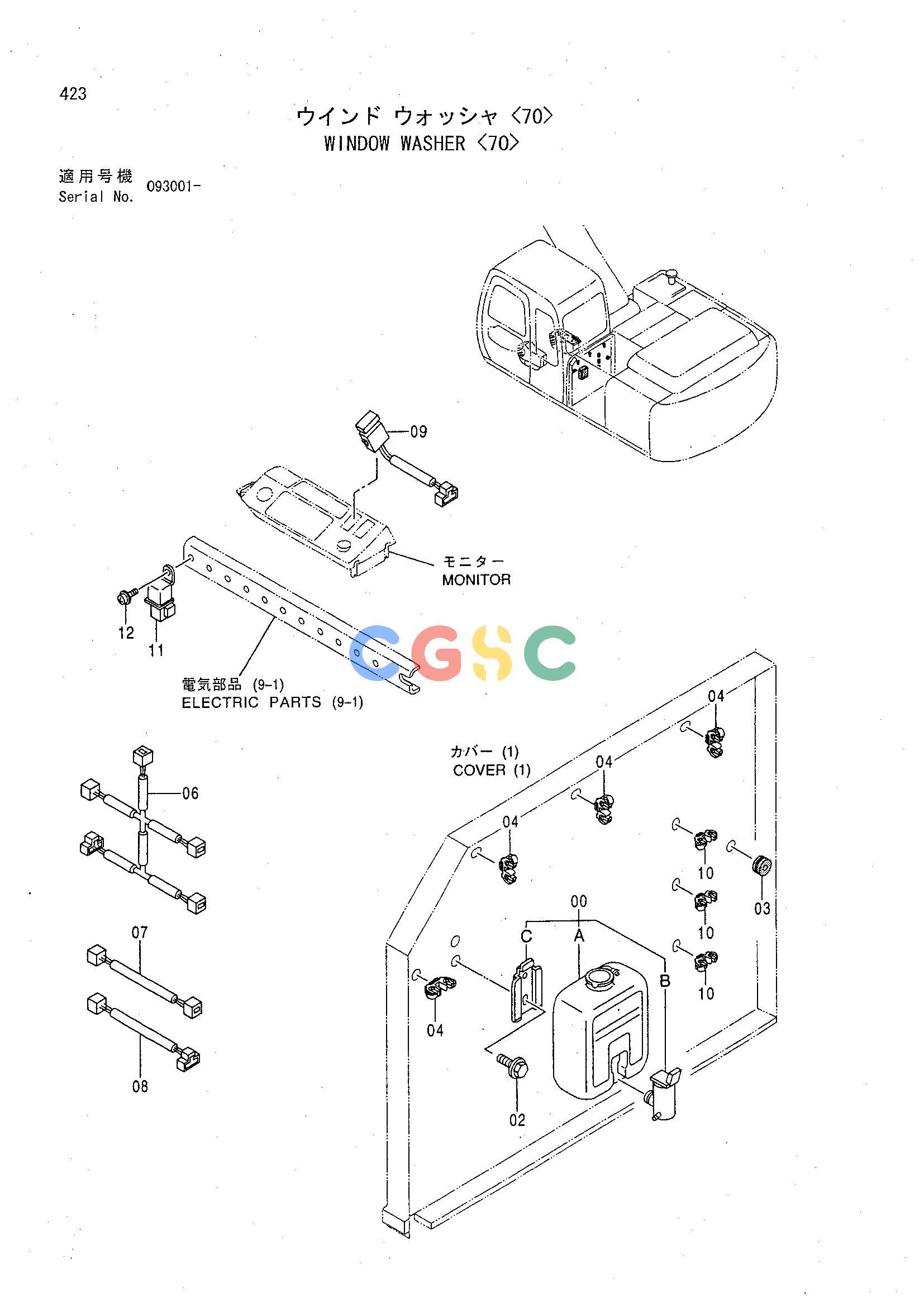

日立零件查询（CHR70）WINDOW WASHER <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
657 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4333185 | [1] | WINDOW-WASHER | |
| 00A. | 4369472 | [1] | TANK | |
| 00B. | 4326095 | [1] | MOTOR | |
| 00C. | 4338974 | [1] | BRACKET | |
| 02. | J020616 | [2] | BOLT;SEMS | |
| 02. | J260616 | [2] | BOLT;SEMS | TJ900616 |
| 02. | J260616 | [2] | BOLT;SEMS | TA590106 |
| 03. | 94-2817 | [1] | BUSHING;RUBBER | |
| 04. | 4343692 | [4] | CLIP | |
| 06. | 3078119 | [1] | HARNESS;WIRE | |
| 07. | 4384041 | [1] | HARNESS;WIRE | |
| 08. | 4366589 | [1] | HARNESS;WIRE | |
| 09. | 4352948 | [1] | SWITCH | |
| 10. | 4343690 | [3] | CLIP | |
| 11. | 4251588 | [1] | RELAY | |
| 12. | J460614 | [1] | SCREW;SEMS | |
