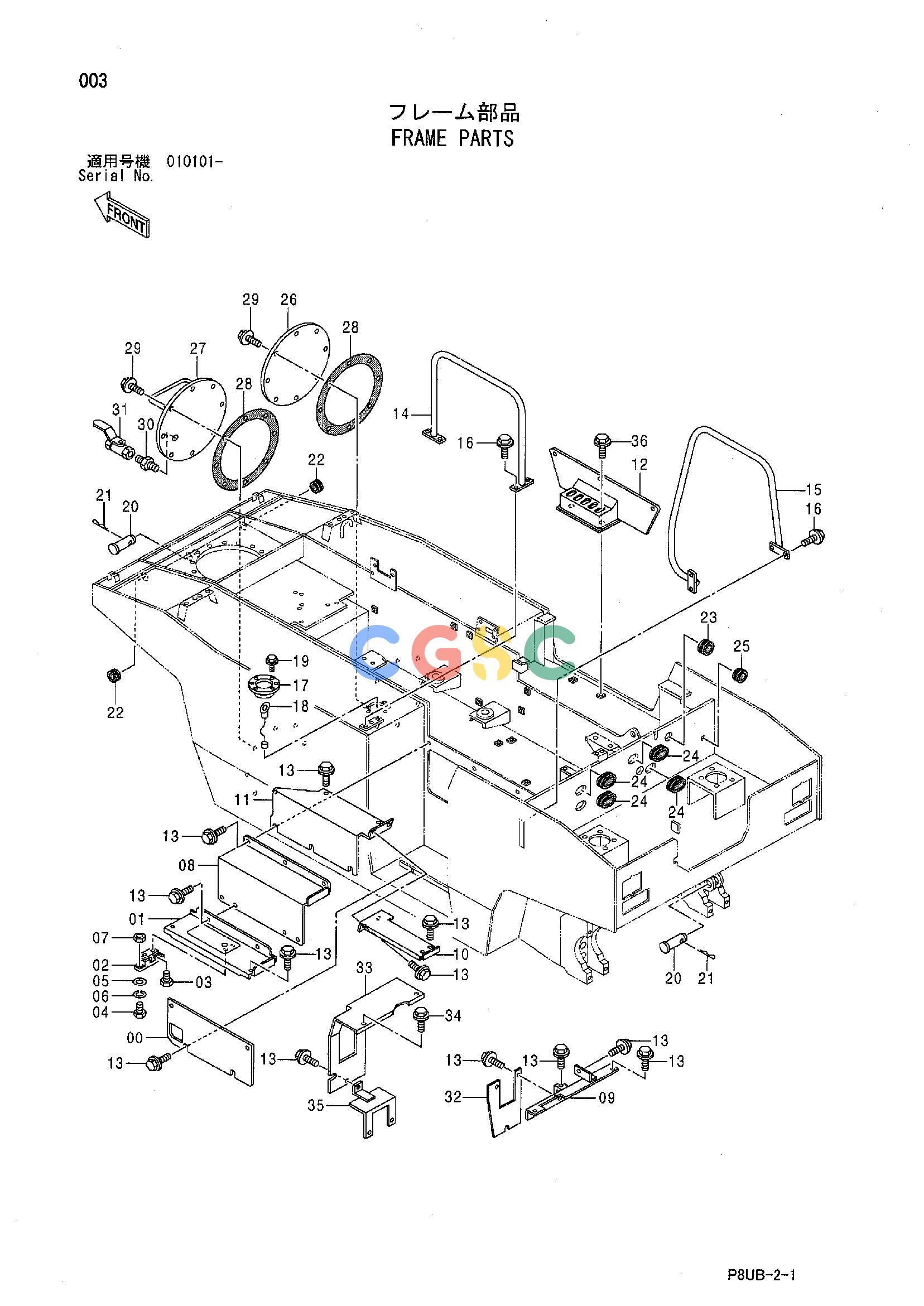

日立零件查询（CP210）FRAME PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
478 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426254 | [1] | COVER | |
| 01. | 426314 | [1] | COVER | |
| 02. | 438088 | [1] | CATCH | |
| 03. | 947826 | [2] | SCREW | |
| 04. | 535004 | [2] | SCREW | |
| 05. | 438155 | [2] | WASHER;PLANE | |
| 06. | 947884 | [2] | WASHER;SPRING | |
| 07. | 947851 | [2] | NUT | |
| 08. | 426327 | [1] | COVER | |
| 09. | 426342 | [1] | BRACKET | |
| 10. | 426338 | [1] | COVER | |
| 11. | 426339 | [1] | COVER | |
| 12. | 426322 | [1] | STEP | |
| 13. | 500028 | [27] | BOLT;SEMS | |
| 14. | 426328 | [1] | HANDRAIL | |
| 15. | 426311 | [1] | HANDRAIL | |
| 16. | 500048 | [8] | BOLT;SEMS | |
| 17. | 435082 | [1] | CAP | |
| 18. | 424252 | [1] | BRACKET | |
| 19. | 947818 | [6] | SCREW;SEMS | |
| 20. | 424354 | [2] | PIN | |
| 21. | 424641 | [2] | PIN;LOCK | |
| 22. | 424078 | [2] | BUSHING;RUBBER | |
| 23. | 426147 | [1] | BUSHING;RUBBER | |
| 24. | 424079 | [4] | BUSHING;RUBBER | |
| 25. | 424093 | [1] | BUSHING;RUBBER | |
| 26. | 441380 | [1] | COVER | |
| 27. | 426332 | [1] | COVER | |
| 28. | 440405 | [2] | RUBBER | |
| 29. | 500037 | [16] | BOLT;SEMS | |
| 30. | 947418 | [1] | ADAPTER | |
| 31. | 947387 | [1] | VALVE;BALL | |
| 32. | 426287 | [1] | COVER | |
| 33. | 426313 | [1] | COVER | |
| 34. | 500048 | [2] | BOLT;SEMS | |
| 35. | 426341 | [1] | BRACKET | |
| 36. | 500028 | [5] | BOLT;SEMS | |
