日立零件查询（CP210）ENGINE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
565 次

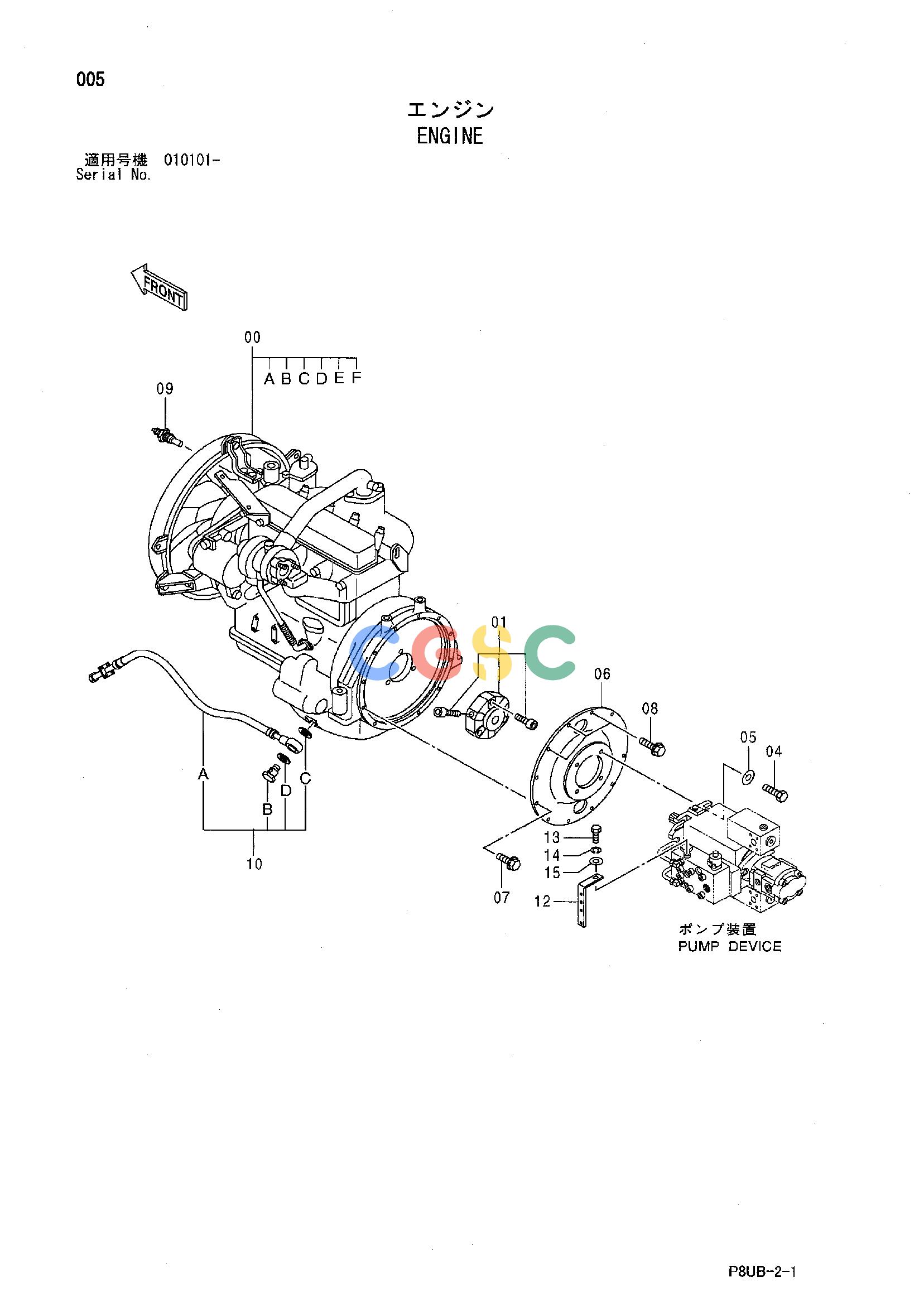

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426216 | [1] | ENGINE | |
| 00A. | 425982 | [1] | BELT;V (1=2 PIECES) | |
| 00B. | 425983 | [1] | FILTER;FUEL | |
| 00C. | 426175 | [1] | SWITCH;LEVEL | (OIL LEVEL SENSOR) |
| 00D. | 426209 | [1] | SWITCH;PRESSURE | |
| 00E. | 424731 | [1] | SWITCH;THERMOMETER | (OVER HEAT WARNING) |
| 00F. | 426210 | [1] | GENERATOR | |
| 01. | 426286 | [1] | COUPLING | |
| 04. | 947645 | [4] | BOLT | |
| 05. | 424195 | [8] | WASHER | |
| 06. | 424227 | [1] | COVER | |
| 07. | 500029 | [9] | BOLT;SEMS | |
| 08. | 500033 | [3] | BOLT;SEMS | |
| 09. | 424941 | [1] | UNIT | |
| 10. | ++++++ | [1] | DRAIN HOSE ASS'Y | |
| 10A. | 426252 | [1] | HOSE | |
| 10B. | 425658 | [1] | BOLT;JOINT | |
| 10C. | 162019 | [1] | PACKING | |
| 10D. | 438271 | [1] | PACKING | |
| 12. | 426243 | [1] | BRACKET | |
| 13. | 500027 | [1] | BOLT | |
| 14. | 947887 | [1] | WASHER;SPRING | |
| 15. | 947324 | [1] | WASHER;PLANE | |
