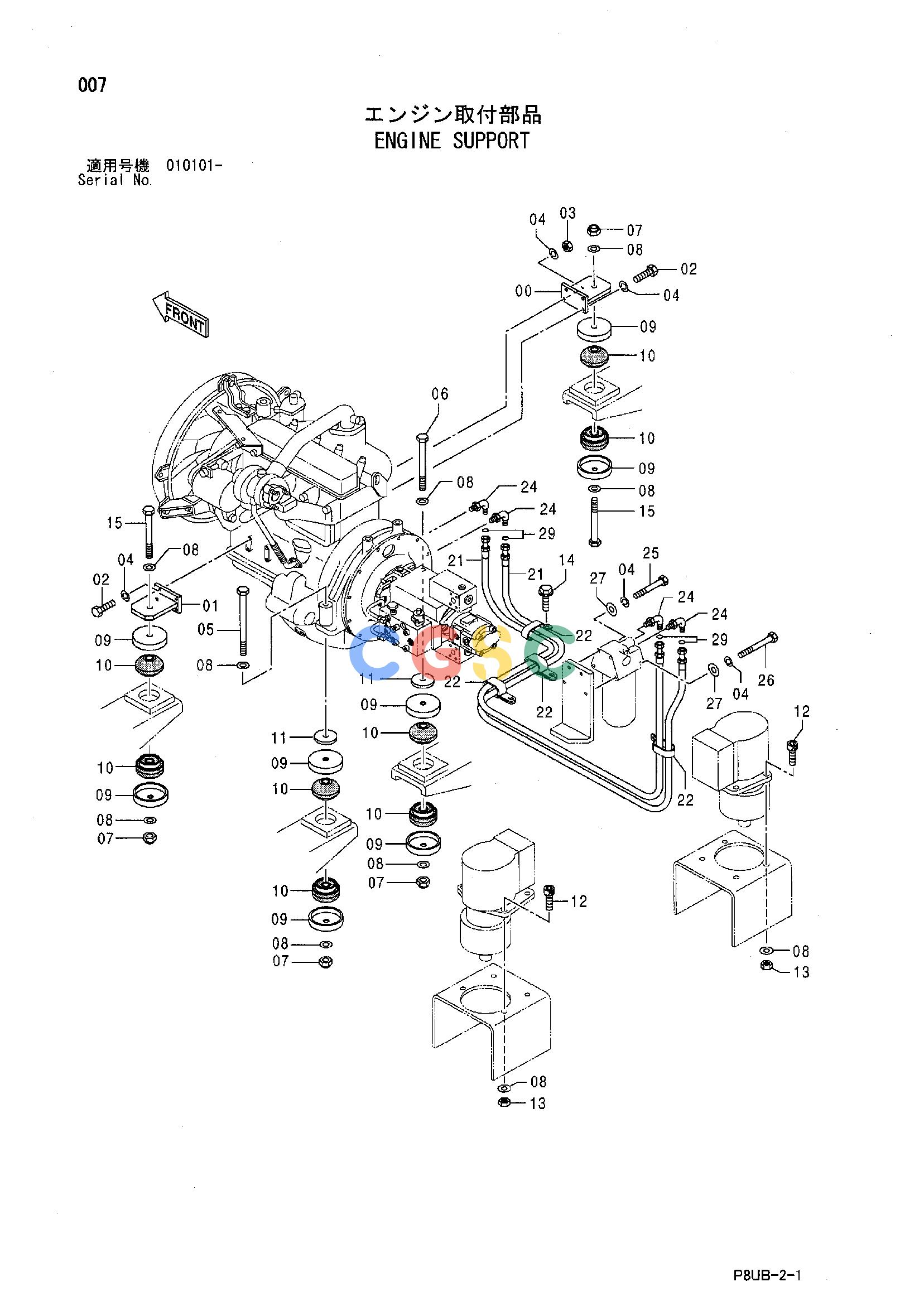

日立零件查询（CP210）ENGINE SUPPORT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
564 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 424487 | [1] | BRACKET | |
| 01. | 424488 | [1] | BRACKET | |
| 02. | 928069 | [7] | BOLT | |
| 03. | 947870 | [1] | NUT | |
| 04. | 947887 | [12] | WASHER;SPRING | |
| 05. | 424053 | [1] | BOLT | |
| 06. | 424211 | [1] | BOLT | |
| 07. | 570008 | [4] | NUT | |
| 08. | 424196 | [16] | WASHER | |
| 09. | 438487 | [8] | STOPPER | |
| 10. | 438486 | [8] | RUBBER | |
| 11. | 435664 | [2] | STOPPER | |
| 12. | 424744 | [8] | SOCKET | |
| 13. | 947858 | [8] | NUT | |
| 14. | 500048 | [4] | BOLT;SEMS | |
| 15. | 439765 | [2] | BOLT | |
| 21. | 426344 | [2] | HOSE ASS'Y | |
| 22. | 424954 | [4] | CLIP | |
| 24. | 426213 | [4] | ELBOW;S | |
| 24A. | 426142 | [1] | O-RING | |
| 25. | 500055 | [2] | BOLT | |
| 26. | 426223 | [2] | BOLT | |
| 27. | 947324 | [4] | WASHER;PLANE | |
| 29. | 426182 | [4] | O-RING | |
