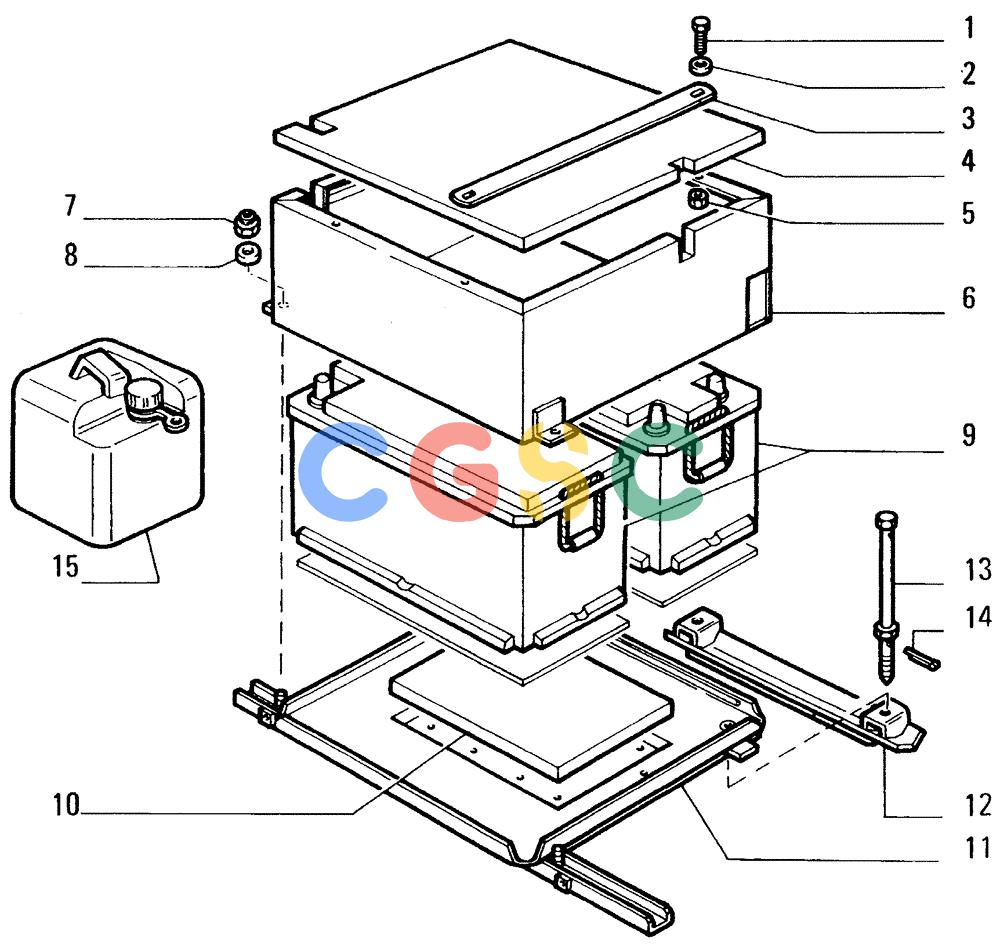

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[022]) - WINTERIZATION-BATTERY, SEAT AND SUPPORT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
915 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 13272117 | [4] | SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd | BUR |
| 2. | 10729901 | [4] | WASHER | HIT4,45x10 Superseded by part number: 13550001 |
| 3. | 79100077 | [2] | BRACKET | LEC |
| 4. | 79100072 | [1] | PANEL | LEC |
| 5. | 14190090 | [4] | NUT | MKT4 |
| 6. | 79100071 | [1] | GUARD | LEC |
| 7. | 16104121 | [2] | NUT,M8 x 1.25, Cl 10 | LECNUT, LOCK, M8 x 1.25, Cl 10 Superseded by part number: 17152821 |
| 8. | 12645031 | [2] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 9. | 79103737 | [2] | DRY BATTERY | LECBATTERY |
| 10. | 79100064 | [1] | PANEL | LEC |
| 11. | 79099971 | [1] | CONTAINER | LEC |
| 12. | 79099960 | [1] | BRACKET | LEC |
| 13. | 79100087 | [2] | TIE-ROD | LECTIEROD |
| 14. | 10796401 | [2] | COTTER PIN,M3.2 x 18 | TTF2,7x27,6 Superseded by part number: |
| 15. | 79103738 | [8] | BATTERY ACID | LECCONTAINER |
