纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[023]) - WINTERIZATION-ELECTRICAL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
676 次

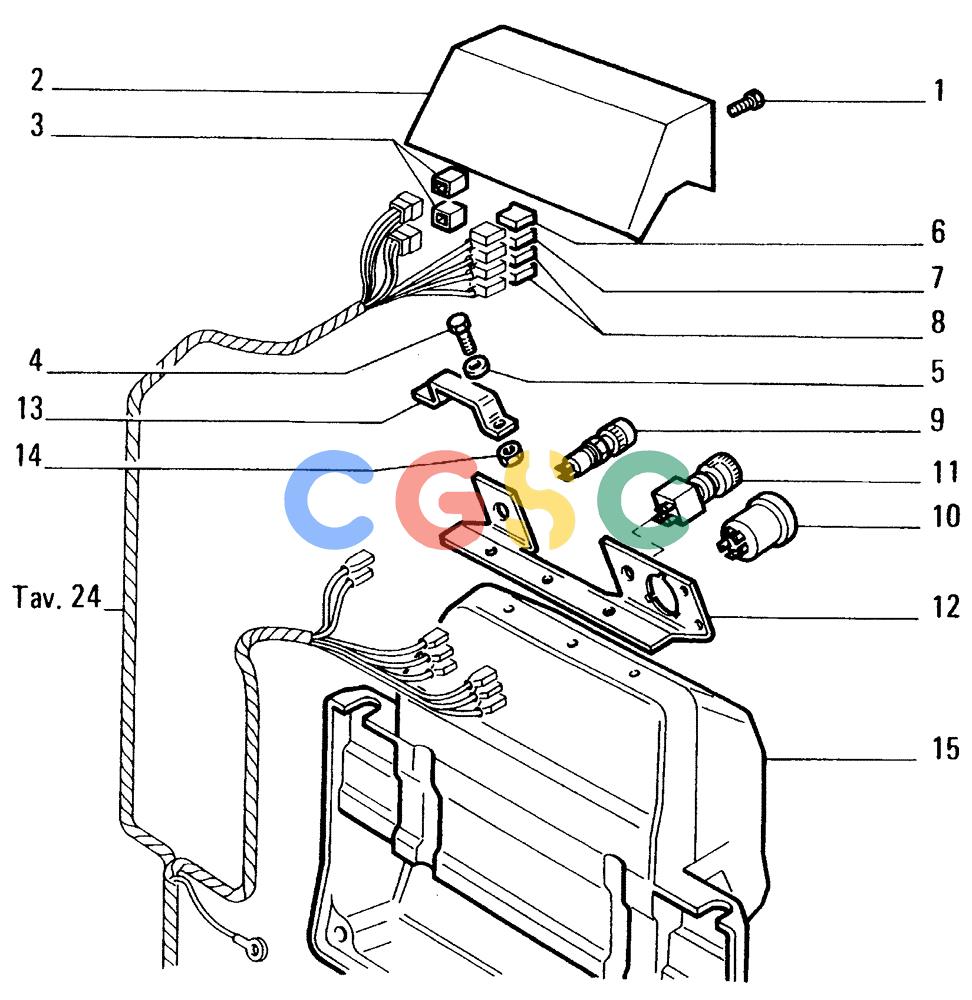

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 15688007 | [4] | SCREW | LEC |
| 2. | 79100050 | [1] | GUARD | LEC |
| 3. | 79069502 | [2] | RELAY,24V, 20A | LEC |
| 4. | 10902631 | [3] | BOLT,Hex, M6 x 25mm, Cl 10.9 | BHB Superseded by part number: 10902633 |
| 5. | 14496431 | [3] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 6. | 87717079 | [1] | FUSE | ZED |
| 7. | 84090658 | [1] | FUSE | ZED |
| 8. | 9804895 | [2] | FUSE,20A, Micro, Yellow | NH |
| 9. | 76008433 | [1] | INDICATOR | LEC |
| 10. | 79100078 | [1] | HOURMETER | LECTIMER |
| 11. | 79100079 | [1] | SWITCH | LEC |
| 12. | 79100049 | [1] | DASH PANEL | LECDASHBOARD |
| 13. | 79068201 | [1] | BRACKET | LEC |
| 14. | 12574221 | [3] | NUT,M6 x 1, Cl 10 | LECNUT, LOCK, M6 x 1, Cl 10 |
| 15. | 79100065 | [1] | DASH PANEL | LECDASHBOARD |
