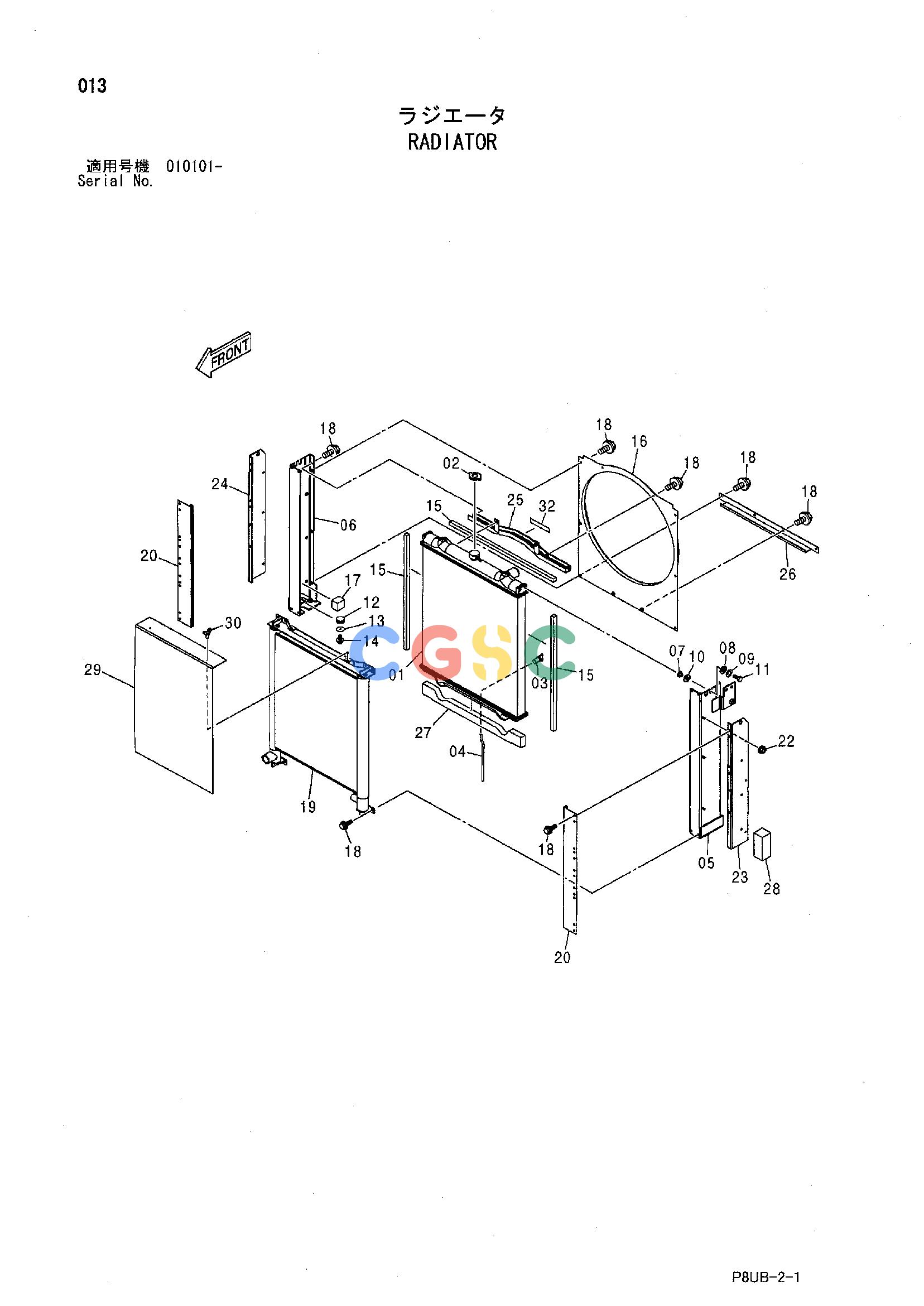

日立零件查询（CP210）RADIATOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
692 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 426179 | [1] | RADIATOR ASS'Y | |
| 01. | 426186 | [1] | CORE;RADIATOR | |
| 02. | 424718 | [1] | CAP | |
| 03. | 426197 | [1] | PLUG;DRAIN | |
| 04. | 424363 | [1] | HOSE | |
| 05. | 426188 | [1] | BRACKET | |
| 06. | 426189 | [1] | BRACKET | |
| 07. | 426198 | [4] | COLLAR | |
| 08. | 426199 | [4] | RUBBER | |
| 09. | 426200 | [4] | WASHER | |
| 10. | 426201 | [4] | RUBBER | |
| 11. | 426202 | [4] | BOLT | |
| 12. | 426203 | [2] | RUBBER | |
| 13. | 426204 | [2] | WASHER | |
| 14. | 424728 | [2] | BOLT | |
| 15. | 426205 | [4] | PACKING | |
| 16. | 426211 | [1] | GUIDE;FAN | |
| 17. | 426206 | [2] | PACKING | |
| 18. | 424730 | [24] | BOLT | |
| 19. | 426187 | [1] | COOLER;OIL | |
| 20. | 426190 | [2] | BRACKET | |
| 22. | 426207 | [6] | NUT | |
| 23. | 426191 | [1] | BRACKET | |
| 24. | 426192 | [1] | BRACKET | |
| 25. | 426193 | [1] | BRACKET | |
| 26. | 426194 | [1] | PLATE | |
| 27. | 426195 | [1] | PACKING | |
| 28. | 426208 | [1] | PACKING | |
| 29. | 426196 | [1] | NET | |
| 30. | 424676 | [2] | BOLT | |
