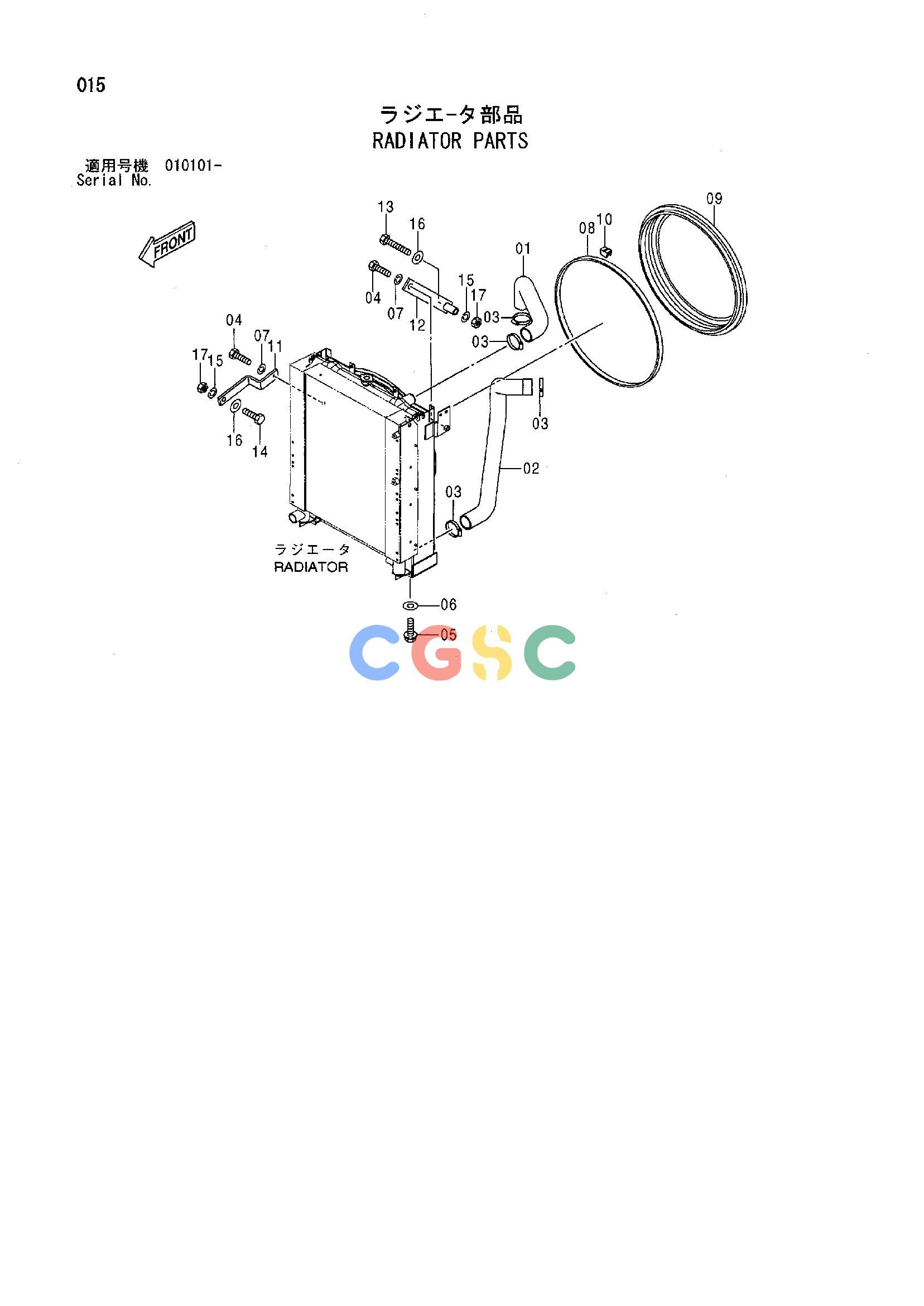

日立零件查询（CP210）RADIATOR PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
923 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 425981 | [1] | HOSE;WATER | |
| 02. | 425979 | [1] | HOSE;WATER | |
| 03. | 448186 | [4] | CLAMP;HOSE | |
| 04. | 500123 | [4] | BOLT | |
| 05. | 500051 | [2] | BOLT;SEMS | |
| 06. | 424195 | [4] | WASHER | |
| 07. | 947890 | [2] | WASHER;SPRING | |
| 08. | 426178 | [1] | BAND | |
| 09. | 426184 | [1] | RUBBER | |
| 10. | 426177 | [1] | LOCK | |
| 11. | 426270 | [1] | STAY | |
| 12. | 426353 | [1] | STAY | |
| 13. | 439742 | [1] | BOLT | |
| 14. | 947689 | [1] | BOLT | |
| 15. | 947888 | [2] | WASHER;SPRING | |
| 16. | 947325 | [2] | WASHER;PLANE | |
| 17. | 947856 | [2] | NUT | |
