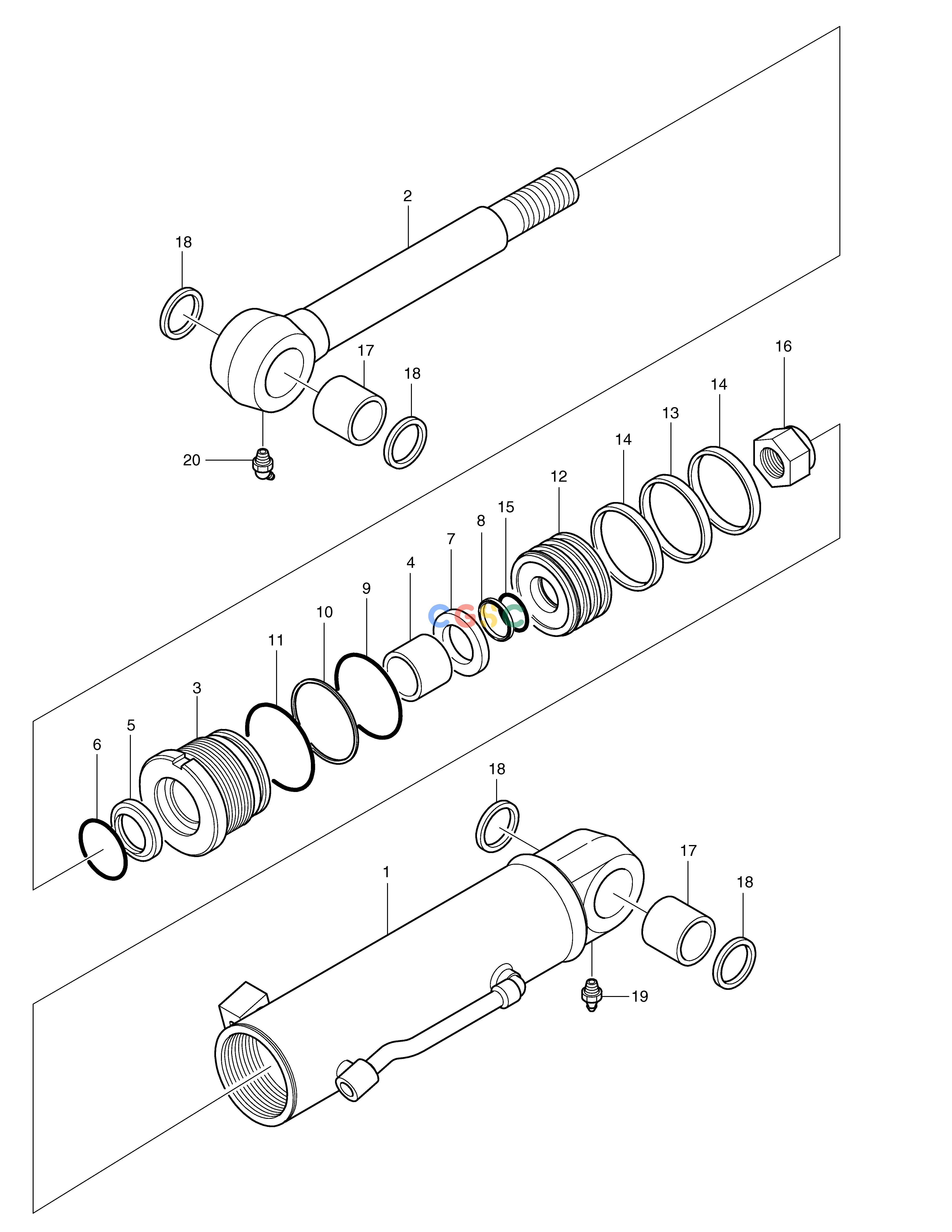

斗山零件查询DOZER CYLINDER SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
629 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9218AKT
|
[1] |
SEAL KIT;DOZER CYL.
|
|
| -. |
2440-9301E
|
[1] |
CYLINDER;DOZER
|
|
| 1. |
4111-0N0-D281
|
[1] |
TUBE ASS'Y
|
|
| 10. |
6113-112-0700
|
[1] |
RING;BACK UP
|
D510011
|
| 11. |
6111-212-0750
|
[1] |
O-RING 1BG-75
|
D510383
|
| 12. |
4711-3N0-4050
|
[1] |
PISTON
|
|
| 13. |
6119-171-0750
|
[1] |
SEAL;SLIPPER
|
D510013
|
| 14. |
6116-111-0750
|
[2] |
RING;WEAR
|
|
| 15. |
6111-112-0310
|
[1] |
O-RING 1BP-31
|
D501722
|
| 16. |
6223-322-0300
|
[1] |
NUT;NYLON
|
|
| 17. |
6341-170-4000
|
[2] |
BUSH
|
|
| 18. |
6120-252-0350
|
[4] |
PIN;WIPPER
|
|
| 19. |
6350-112-0070
|
[1] |
NIPPLE;GREASE
|
|
| 2. |
4511-0N0-4641
|
[1] |
PISTON ROD ASS'Y
|
|
| 20. |
6350-212-0070
|
[1] |
NIPPLE;GREASE
|
|
| 3. |
4811-3N0-3930
|
[1] |
ROD COVER
|
|
| 4. |
6340-100-4390
|
[1] |
BUSH
|
|
| 5. |
6120-181-0400
|
[1] |
WIPPER;DUST
|
|
| 6. |
6611-100-0520
|
[1] |
STOPPER
|
|
| 7. |
6112-111-0400
|
[1] |
U-PACKING
|
D510024
|
| 8. |
6113-312-0400
|
[1] |
RING;BACK UP
|
D501710
|
| 9. |
6111-212-0700
|
[1] |
O-RING 1BG-70
|
D510010
|
