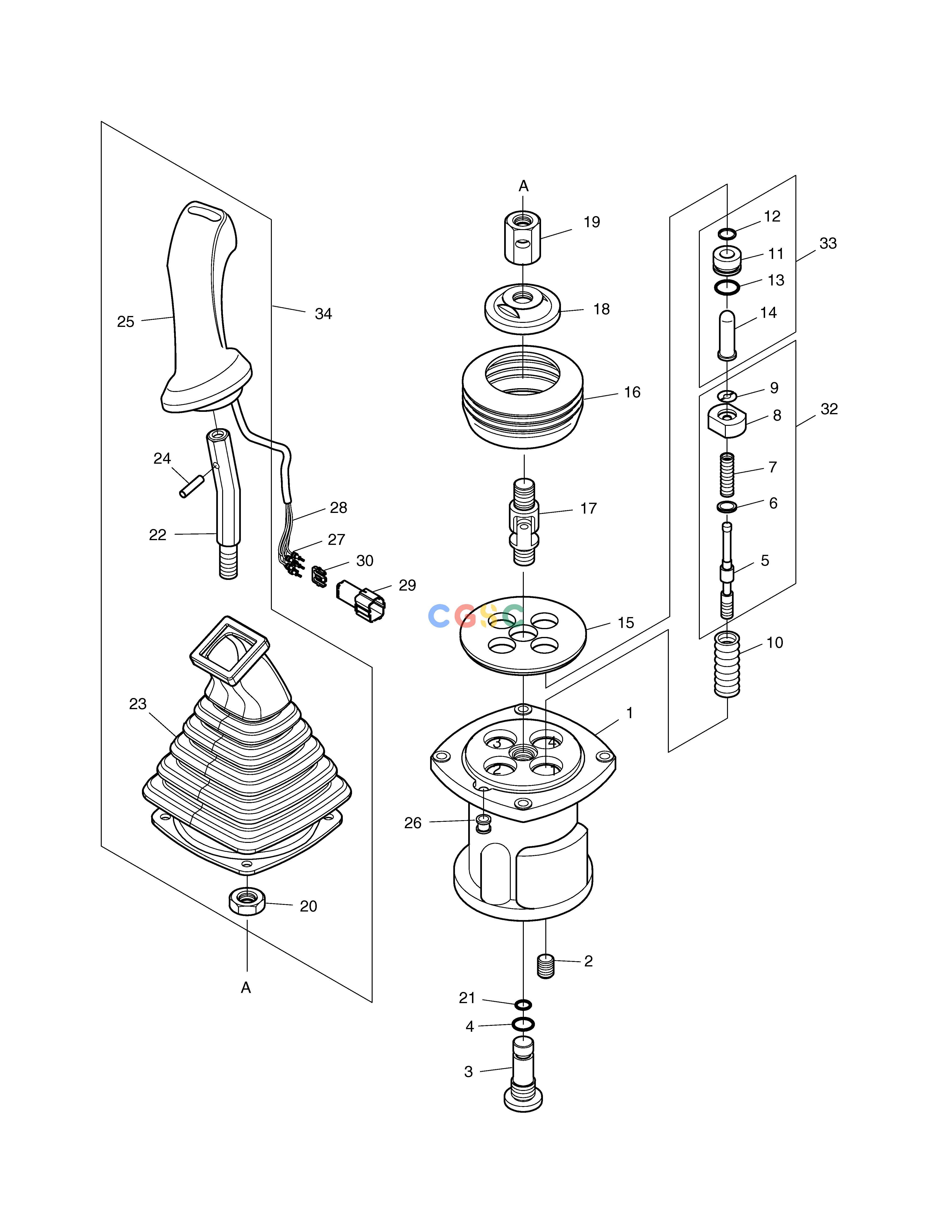

斗山零件查询JOYSTICK VALVE SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
980 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420-00450A
|
[1] |
JOYSTICK(L.H)
|
|
| -. |
420-00449A
|
[1] |
JOYSTICK(R.H)
|
|
| 1. |
1.402-00001
|
[1] |
CASE
|
|
| 10. |
1.129-00022
|
[4] |
SPRING
|
|
| 11. |
K9001126
|
[4] |
PLUG
|
|
| 12. |
K9001127
|
[4] |
SEAL;ROD
|
|
| 13. |
S8000205
|
[4] |
O-RING
|
|
| 14. |
1.428-00235
|
[4] |
ROD;PUSH
|
|
| 15. |
1.412-00017
|
[1] |
PLATE
|
|
| 16. |
1.160-00004
|
[1] |
BOOT
|
|
| 17. |
1.138-00004
|
[1] |
JOINT ASSY
|
|
| 18. |
1.412-00131
|
[1] |
PLATE;SWASH
|
|
| 19. |
1.121-00028
|
[1] |
NUT
|
|
| 2. |
2181-1116D1
|
[4] |
PLUG
|
|
| 20. |
S4032833
|
[1] |
NUT
|
|
| 21. |
S8002701
|
[1] |
. O-RING
|
|
| 22. |
1.178-00004
|
[1] |
BAR;HANDLE
|
|
| 23. |
1.160-00007
|
[1] |
BOOT
|
|
| 24. |
S5740800
|
[1] |
PIN;SPRING
|
|
| 25. |
K9001224
|
[1] |
HANDLE ASS'Y(L.H)
|
|
| 25. |
K9001225
|
[1] |
HANDLE ASS'Y(R.H)
|
|
| 26. |
1.110-00169
|
[1] |
BUSHING
|
|
| 27. |
NA01264
|
[5] |
TERMINAL
|
|
| 28. |
NA01345
|
[5] |
WIRE;SEAL
|
|
| 29. |
NA00528
|
[1] |
CARTER
|
|
| 3. |
2181-1890D3
|
[1] |
PLUG
|
|
| 30. |
NA00519
|
[1] |
|
|
| 32. |
K9001226
|
[1] |
SPOOL KIT
|
|
| 33. |
K9001227
|
[1] |
PLUG KIT
|
|
| 34. |
K9001228
|
[1] |
HANDLE KIT(L.H)
|
|
| 34. |
K9001229
|
[1] |
HANDLE KIT(R.H)
|
|
| 4. |
S8000141
|
[1] |
O-RING
|
|
| 5. |
1.424-00015
|
[4] |
SPOOL
|
|
| 6. |
1.114-00012
|
[4] |
SHIM
|
|
| 7. |
1.131-00022
|
[4] |
SPRING
|
|
| 8. |
1.427-00014
|
[4] |
SEAT;SPRING
|
|
| 9. |
161-00171
|
[4] |
STOPPER
|
|
