纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[025]) - WINTERIZATION-MAIN FRAME New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
136 次

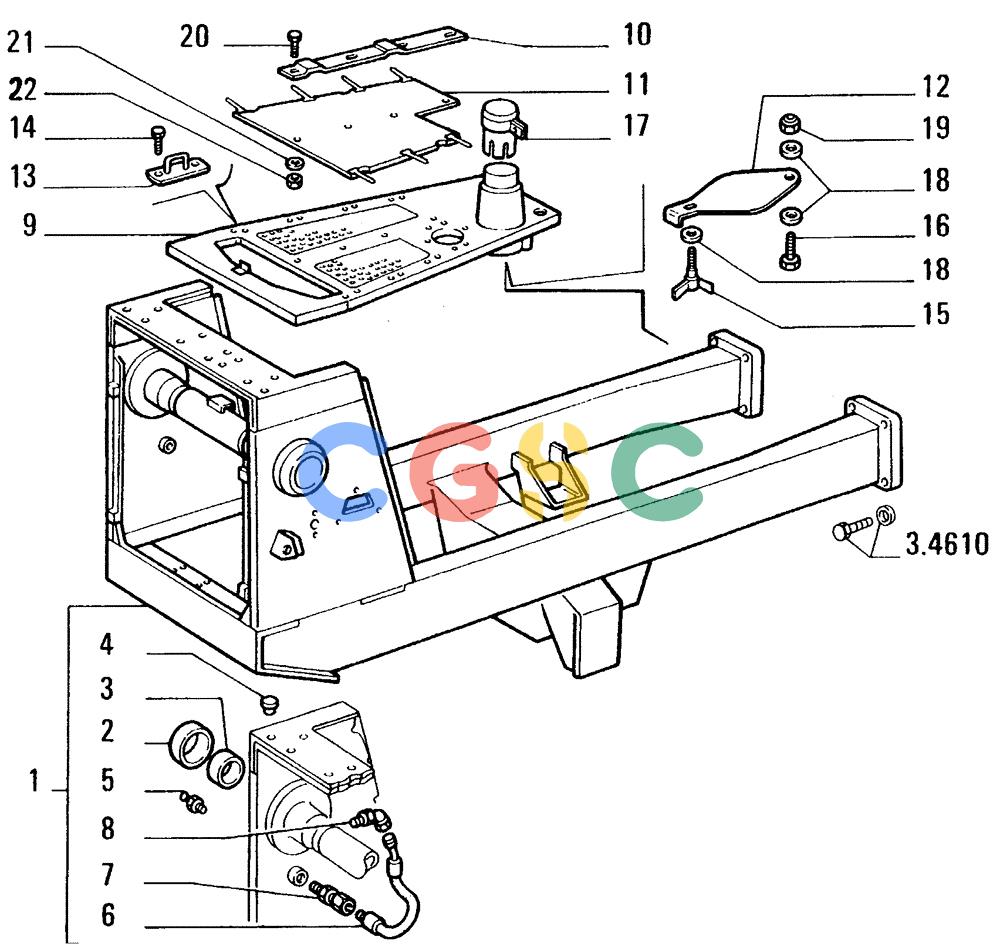

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79103376 | [1] | FRAME | LECMAIN FRAME - ASSEMBLY |
| 2. | 79087774 | [2] | BUSHING | LEC |
| 3. | 8292010 | [2] | BUSHING,76.2mm ID x 85mm OD x 50mm L | LEC |
| 4. | 4974163 | [6] | PLUG | LEC |
| 5. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 6. | 79092149 | [2] | FLEXIBLE HOSE | LECHOSE ASSY |
| 7. | 79066934 | [2] | HYD CONNECTOR | BHBFITTING |
| 8. | 79067014 | [2] | HYD CONNECTOR | LECFITTING |
| 9. | 79100053 | [1] | COWLING | LECHOOD Superseded by part number: 79108284 |
| 10. | 79100069 | [1] | PLATE | LEC |
| 11. | 79100068 | [1] | GUARD | LEC |
| 12. | 79100057 | [1] | DOOR | LEC |
| 13. | 79100085 | [7] | RETAINER | LEC |
| 14. | 14642594 | [14] | RIVET | NH |
| 15. | 16172621 | [1] | SCREW,Wing, M8 x 20mm, Cl 8.8, Cone Pt | JES |
| 16. | 86625003 | [1] | BOLT,Hex, M8 x 50mm, Cl 10.9 | FAR |
| 17. | 79099957 | [1] | PLUG | LEC |
| 18. | 14496531 | [3] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 19. | 16104121 | [1] | NUT,M8 x 1.25, Cl 10 | LECNUT, LOCK, M8 x 1.25, Cl 10 Superseded by part number: 17152821 |
| 20. | 10903631 | [4] | BOLT,Hex, M6 x 50mm, Cl 10.9 | LEC Superseded by part number: 86556136 |
| 21. | 14496431 | [4] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 22. | 12574221 | [4] | NUT,M6 x 1, Cl 10 | LECNUT, LOCK, M6 x 1, Cl 10 |
