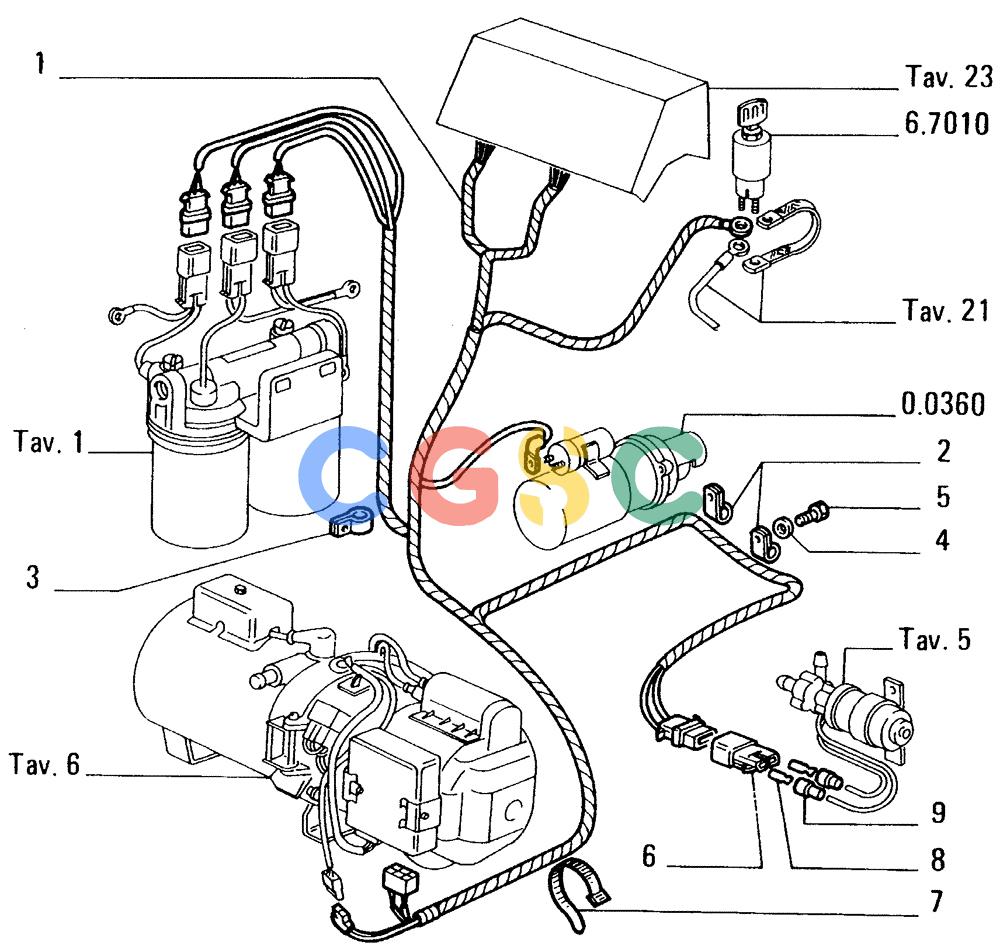

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[024]) - WINTERIZATION-ELECTRICAL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
201 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79100107 | [1] | ELECTRIC CABLE | LECCABLE |
| 2. | 10450090 | [3] | CLAMP,8mm, Coat, 9mm Bolt Hole, P Type | IMO8 x 9 |
| 3. | 10450290 | [1] | CLAMP,12mm, Coat, 9mm Bolt Hole, P Type | LECCLIP 74x9 Superseded by part number: 86625036 |
| 4. | 14496531 | [1] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 5. | 16043131 | [1] | BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd | LEC |
| 6. | 12331187 | [1] | MULTIPOLE CONNECTOR,Male | LECCONNECTOR Male |
| 7. | 79013422 | [15] | CABLE TIE,145mm L | LECSTRAP, CABLE, 145mm L |
| 8. | 12330244 | [2] | CABLE TERMINAL | LECWIRE TERMINAL |
| 9. | 87680710 | [2] | SEAL | SASSEAL |
