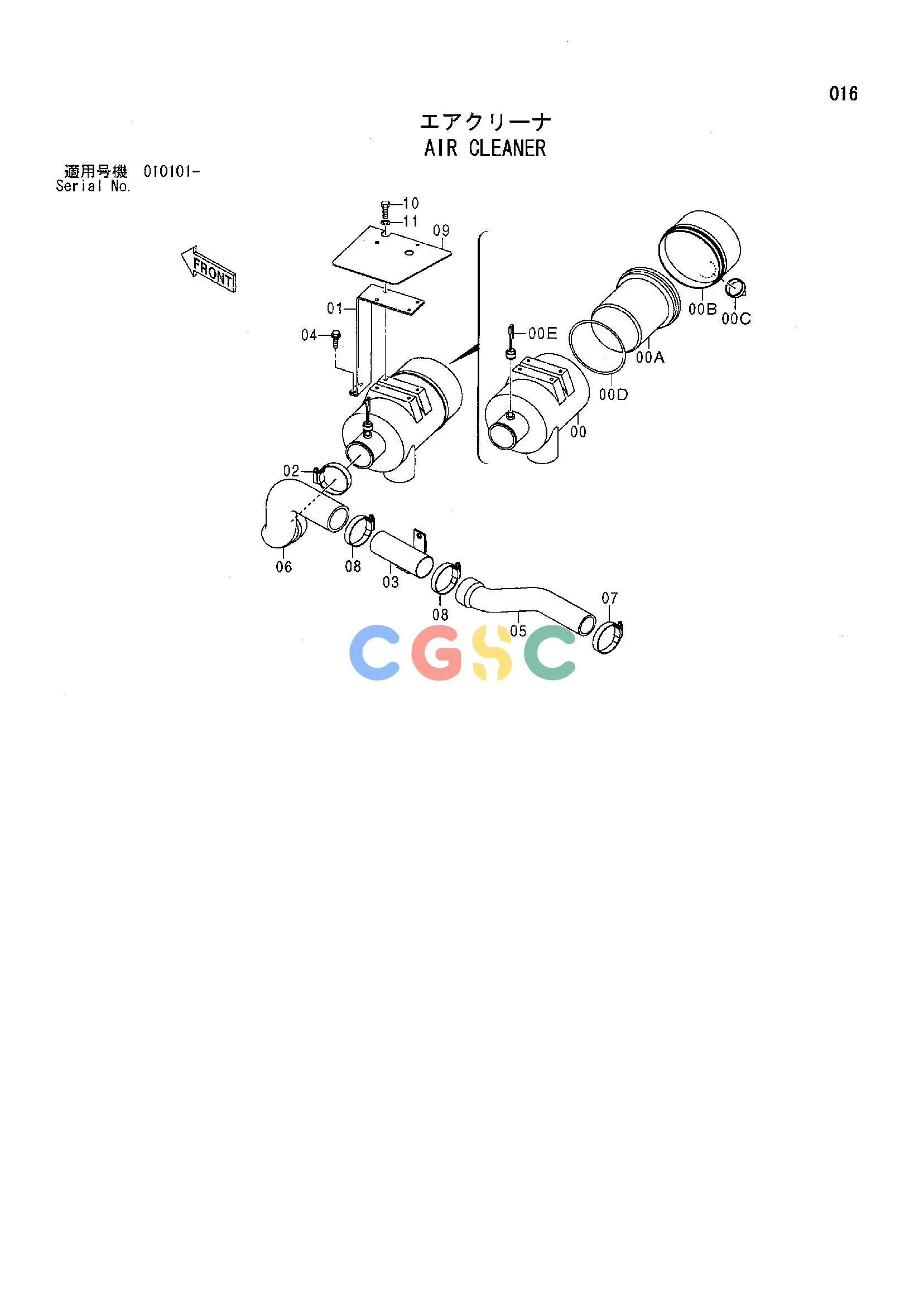

日立零件查询（CP210）AIR CLEANER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
958 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425988 | [1] | CLEANER;AIR | |
| 00A. | 438227 | [1] | ELEMENT | |
| 00B. | 426214 | [1] | COVER | |
| 00C. | 448407 | [1] | VALVE | |
| 00D. | 426215 | [1] | GASKET | |
| 00E. | 439375 | [1] | INDICATOR | |
| 01. | 426265 | [1] | BRACKET | |
| 02. | 438178 | [1] | CLAMP;HOSE | |
| 03. | 426348 | [1] | PIPE;AIR | |
| 04. | 500028 | [2] | BOLT;SEMS | |
| 05. | 425986 | [1] | HOSE;AIR | |
| 06. | 425987 | [1] | HOSE;AIR | |
| 07. | 947479 | [1] | CLAMP;HOSE | |
| 08. | 424735 | [2] | CLAMP;HOSE | |
| 09. | 426266 | [1] | COVER | |
| 10. | 947619 | [4] | BOLT | |
| 11. | 606020 | [4] | WASHER;SPRING | |
