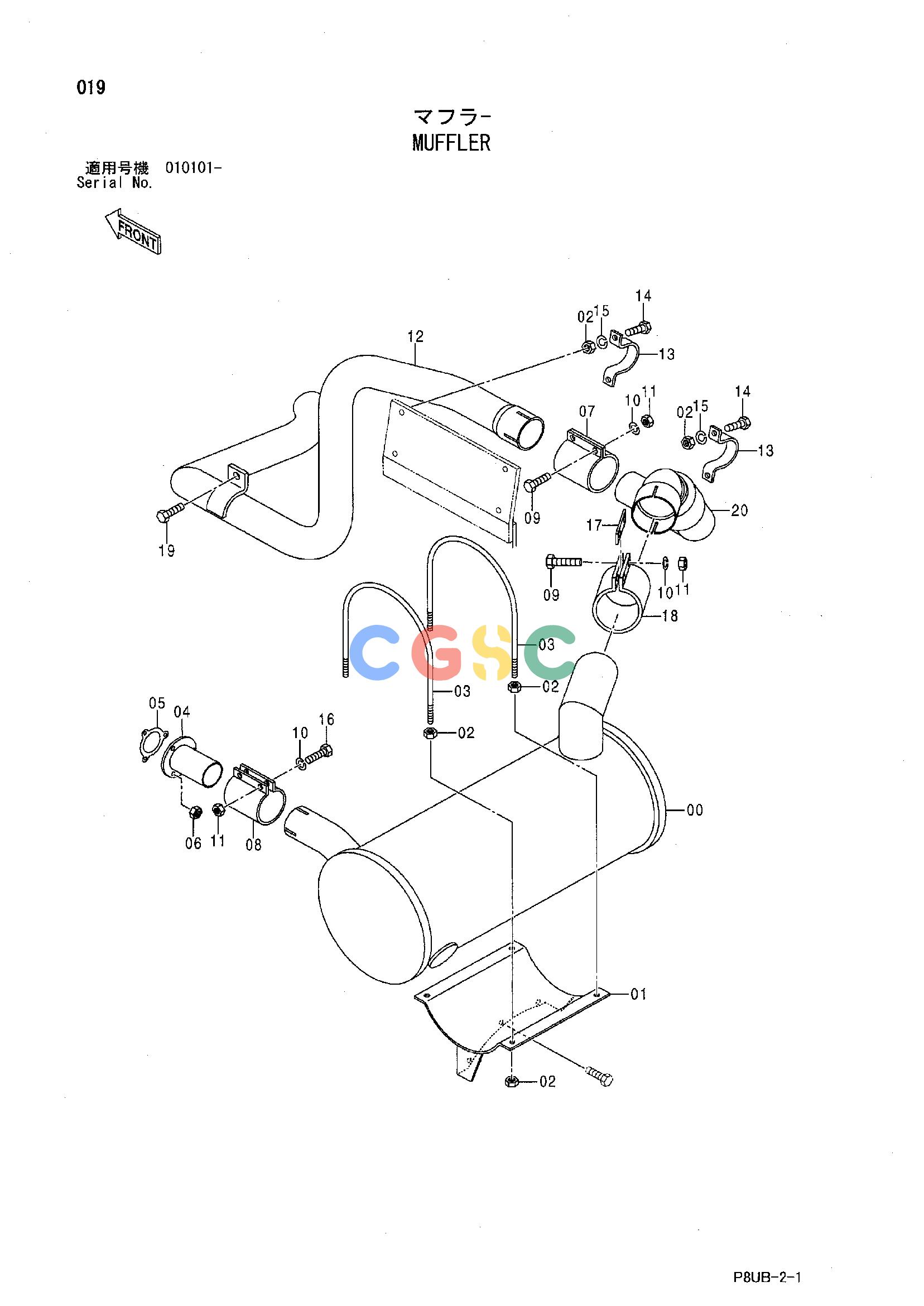

日立零件查询（CP210）MUFFLER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
517 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426247 | [1] | MUFFLER | |
| 01. | 426217 | [1] | BRACKET | |
| 02. | 947855 | [12] | NUT | |
| 03. | 426122 | [2] | BOLT;U | |
| 04. | 426218 | [1] | PIPE;EXHAUST | |
| 05. | 424114 | [1] | GASKET | |
| 06. | 424105 | [3] | NUT;U | |
| 07. | 424142 | [1] | CLAMP | |
| 08. | 424087 | [1] | CLAMP | |
| 09. | 947645 | [4] | BOLT | |
| 10. | 947888 | [6] | WASHER;SPRING | |
| 11. | 947856 | [6] | NUT | |
| 12. | 426305 | [1] | PIPE;EXHAUST | |
| 13. | 424023 | [2] | CLAMP;PIPE | |
| 14. | 947632 | [4] | BOLT | |
| 15. | 947887 | [4] | WASHER;SPRING | |
| 16. | 947647 | [2] | BOLT | |
| 17. | 426261 | [1] | PLATE | |
| 18. | 426144 | [1] | CLAMP | |
| 19. | 500028 | [1] | BOLT;SEMS | |
| 20. | 426312 | [1] | PIPE;EXHAUST | |
