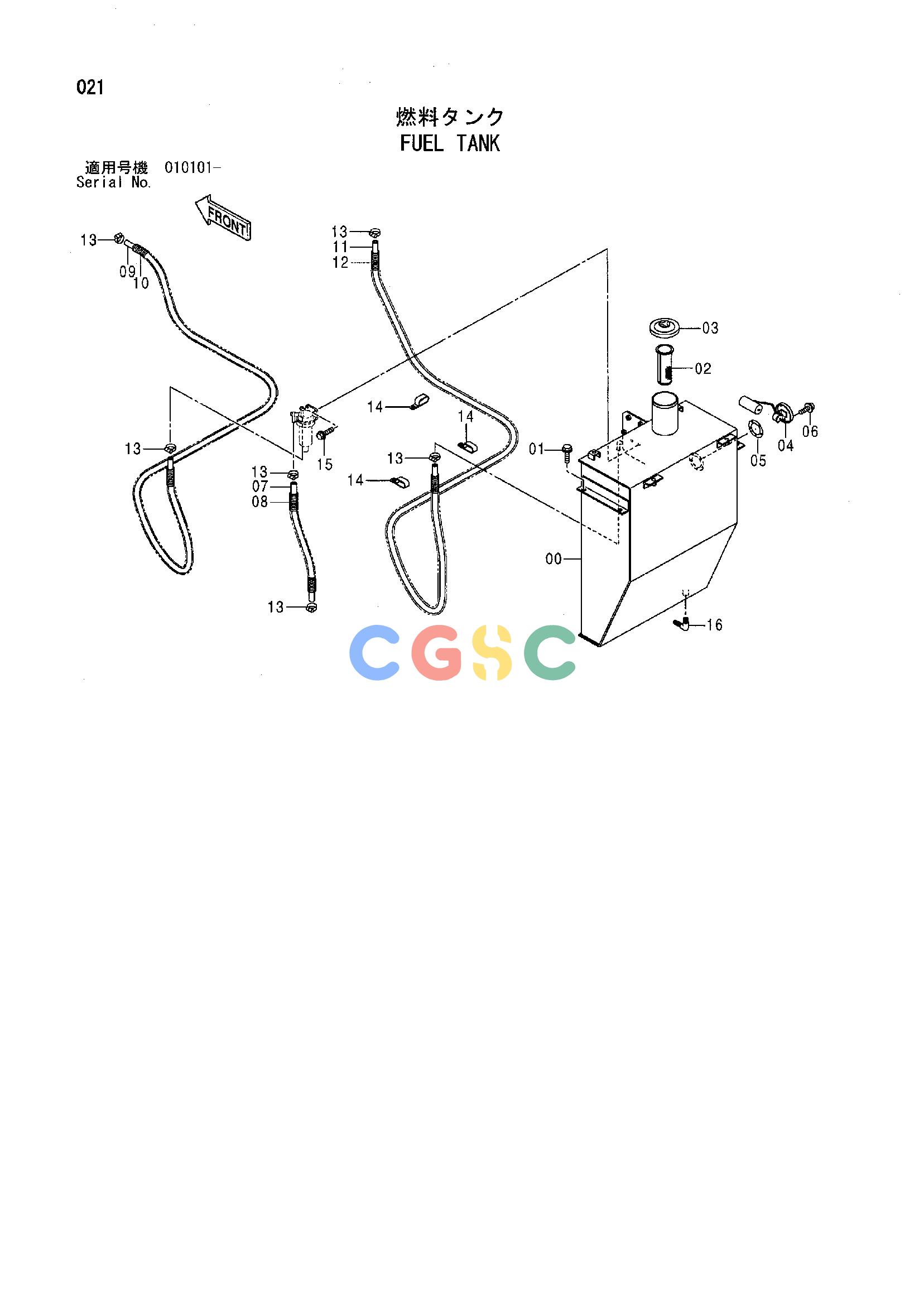

日立零件查询（CP210）FUEL TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
708 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426296 | [1] | TANK;FUEL | |
| 01. | 500193 | [4] | BOLT;SEMS | |
| 02. | 424038 | [1] | FILTER | |
| 03. | 424158 | [1] | CAP | |
| 04. | 424978 | [1] | FLOAT | |
| 05. | 424120 | [1] | PACKING | |
| 06. | 439860 | [5] | SCREW;SEMS | |
| 07. | 947285 | [1] | HOSE;FUEL | |
| 08. | 424357 | [1] | TUBE | |
| 09. | 947285 | [1] | HOSE;FUEL | |
| 10. | 424357 | [1] | TUBE | |
| 11. | 947285 | [1] | HOSE;FUEL | |
| 12. | 424357 | [1] | TUBE | |
| 13. | 313060 | [6] | CLAMP;HOSE | |
| 14. | 424954 | [3] | CLIP | |
| 15. | 947624 | [2] | BOLT;SEMS | |
| 16. | 426284 | [1] | HOSE;FITTING | |
