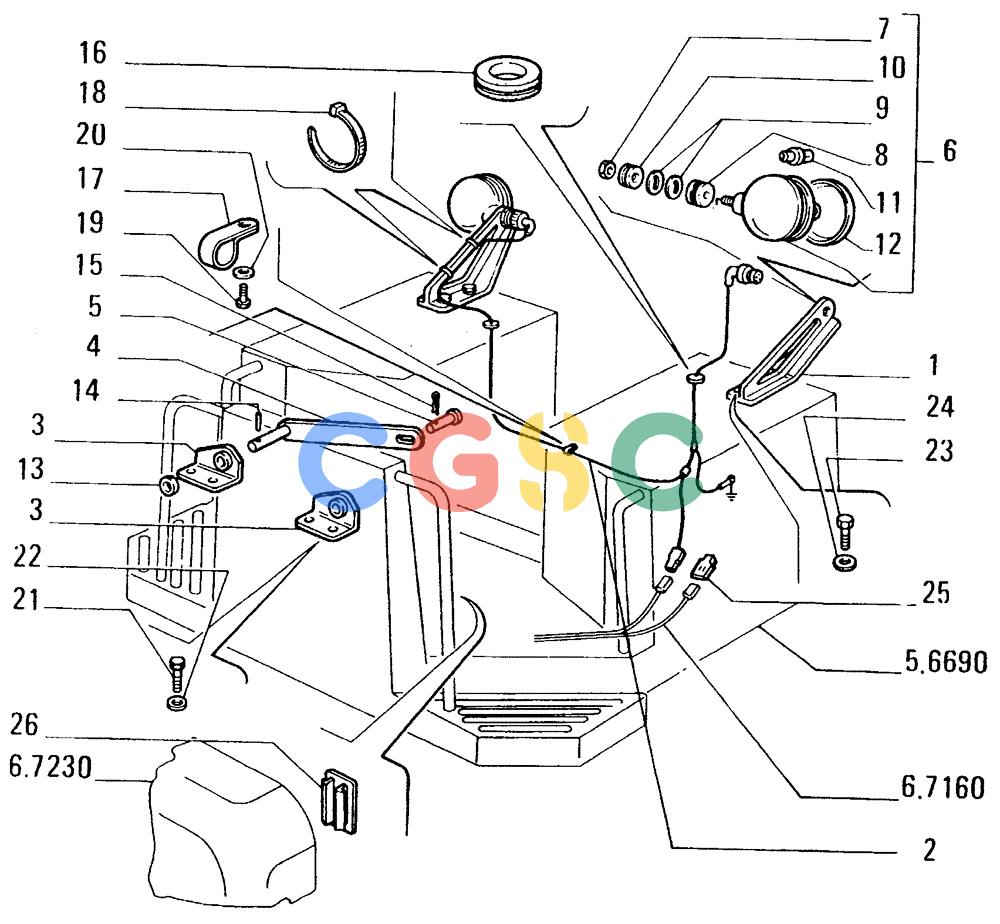

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6416[001]) - WITHOUT ROPS CANOPY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
652 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79094913 | [1] | SUPPORT | LEC- REAR LEFT |
| 1. | 79094916 | [1] | SUPPORT | LEC- REAR RIGHT |
| 2. | 79095522 | [1] | ELECTRIC CABLE | LECCABLE |
| 3. | 79094924 | [2] | BRACKET | LEC |
| 4. | 79094920 | [1] | BAR | LEC |
| 5. | 79094927 | [1] | PIN | LEC |
| 6. | 79073816 | [2] | HEADLAMP | LECFLOODLIGHT - ASSEMBLY Superseded by part number: 79073819 |
| 6. | 79094051 | [1] | HEADLAMP | LECFLOODLIGHT - RIGHT ASSEMBLY Superseded by part number: 79093993, 14151690 |
| 6. | 79097886 | [1] | HEADLAMP | LECFLOODLIGHT - LEFT ASSEMBLY Superseded by part number: 79097888 |
| 7. | 79073825 | [1] | NUT | LEC Superseded by part number: 10726711 |
| 8. | 79073822 | [1] | SPACER | LEC |
| 9. | 79073823 | [2] | PAD | LECBLOCK |
| 10. | 79073824 | [1] | WASHER | LEC |
| 11. | 79069460 | [1] | BULB | LECLAMP Superseded by part number: 14151690 |
| 12. | 79080111 | [1] | HEADLAMP LENS | LECREFLECTOR Superseded by part number: 79102125 |
| 13. | 578376 | [1] | RING | LEC |
| 14. | 14164370 | [1] | LOCK PIN,M4 x 30, Slotted | FORSPRING PIN 4,4x30 |
| 15. | 79046214 | [1] | KEY,9mm x 87mm L | LECCOTTER PIN |
| 16. | 10397780 | [1] | INSULATING RING | JESRING 22x38 |
| 17. | 10450090 | [5] | CLAMP,8mm, Coat, 9mm Bolt Hole, P Type | IMO8 x 9 |
| 18. | 79013422 | [4] | CABLE TIE,145mm L | LECSTRAP, CABLE, 145mm L |
| 19. | 16043031 | [5] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
| 20. | 10615679 | [5] | LOCK WASHER,Ext Tooth, M8 | BHBWASHER Superseded by part number: 10615671 |
| 21. | 11376231 | [4] | BOLT,Hex, M16 x 1.5 x 35, 10.9, Full Thd | MKTSCREW 16x1,5x35 Superseded by part number: 11376230 |
| 22. | 14496931 | [4] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 23. | 15983831 | [4] | BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9 | LEC |
| 24. | 14497031 | [4] | WASHER,M18 x 34 | LEC |
| 25. | 79086488 | [1] | UNIVERSAL JOINT | LECCOUPLING |
| 26. | 79035411 | [1] | PLUG | LEC |
