纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6420[001]) - FANA VERSION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
411 次

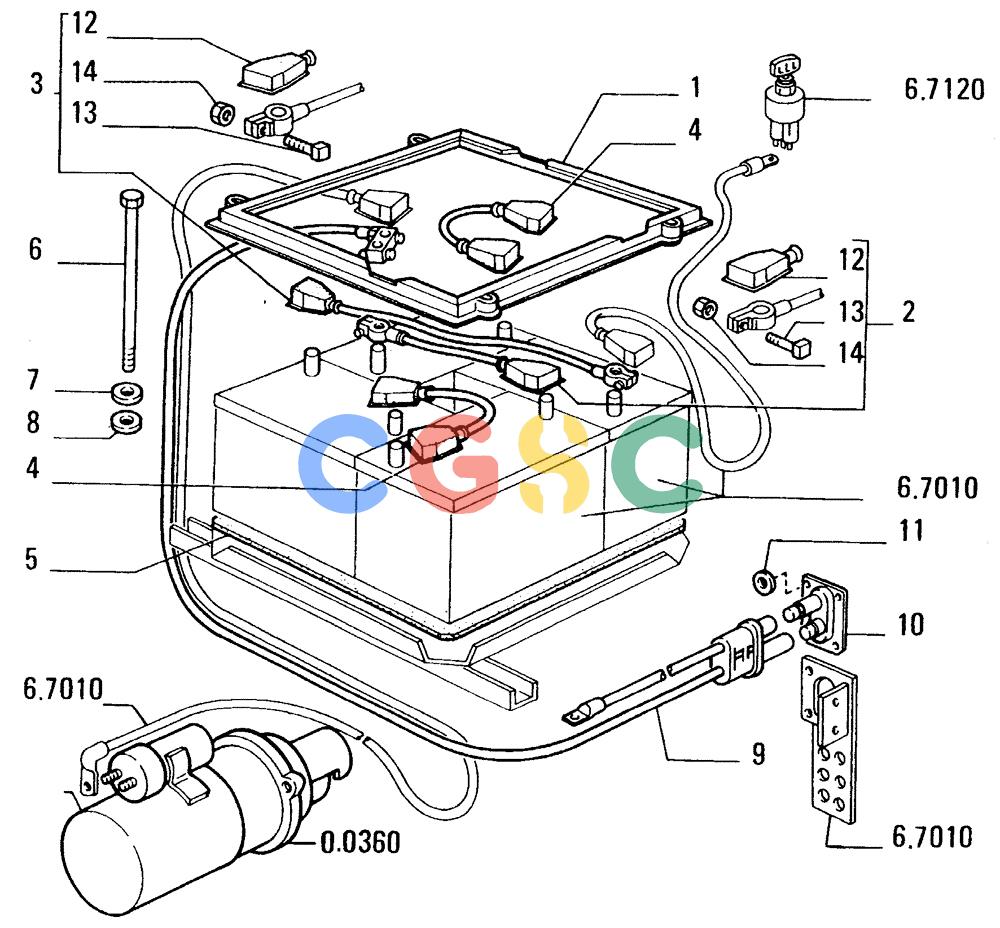

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79090112 | [1] | CAPPING | LECBEZEL |
| 2. | 79090094 | [1] | ELECTRIC CABLE | LECCABLE - ASSEMBLY |
| 3. | 79090095 | [1] | ELECTRIC CABLE | LECCABLE - ASSEMBLY |
| 4. | 45011273 | [2] | ELECTRIC CABLE | TORCABLE |
| 5. | 79090096 | [1] | PLATE | LEC |
| 6. | 79090097 | [4] | TIE-ROD | LECTIEROD |
| 7. | 10615779 | [4] | LOCK WASHER,Ext Tooth, M10 | MKTWASHER, LOCK, Ext Tooth, M10 Superseded by part number: 12605671 |
| 8. | 79005244 | [4] | WASHER,10.6mm ID x 25mm OD x 6mm Thk | LEC |
| 9. | 79096826 | [1] | POWER SOCKET | LECRECEPTACLE Superseded by part number: 76027602 |
| 10. | 73144555 | [1] | CAP | CMICONNECTION |
| 11. | 12645031 | [1] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 12. | 4950259 | [1] | PROTECTION CAP | LECBOOT |
| 13. | 11945008 | [2] | SCREW | LECSq. Hd, M6 x 1 x 30 Superseded by part number: 11945208 |
| 14. | 15896218 | [2] | NUT | TTF6x1x5 Superseded by part number: 86500688 |
