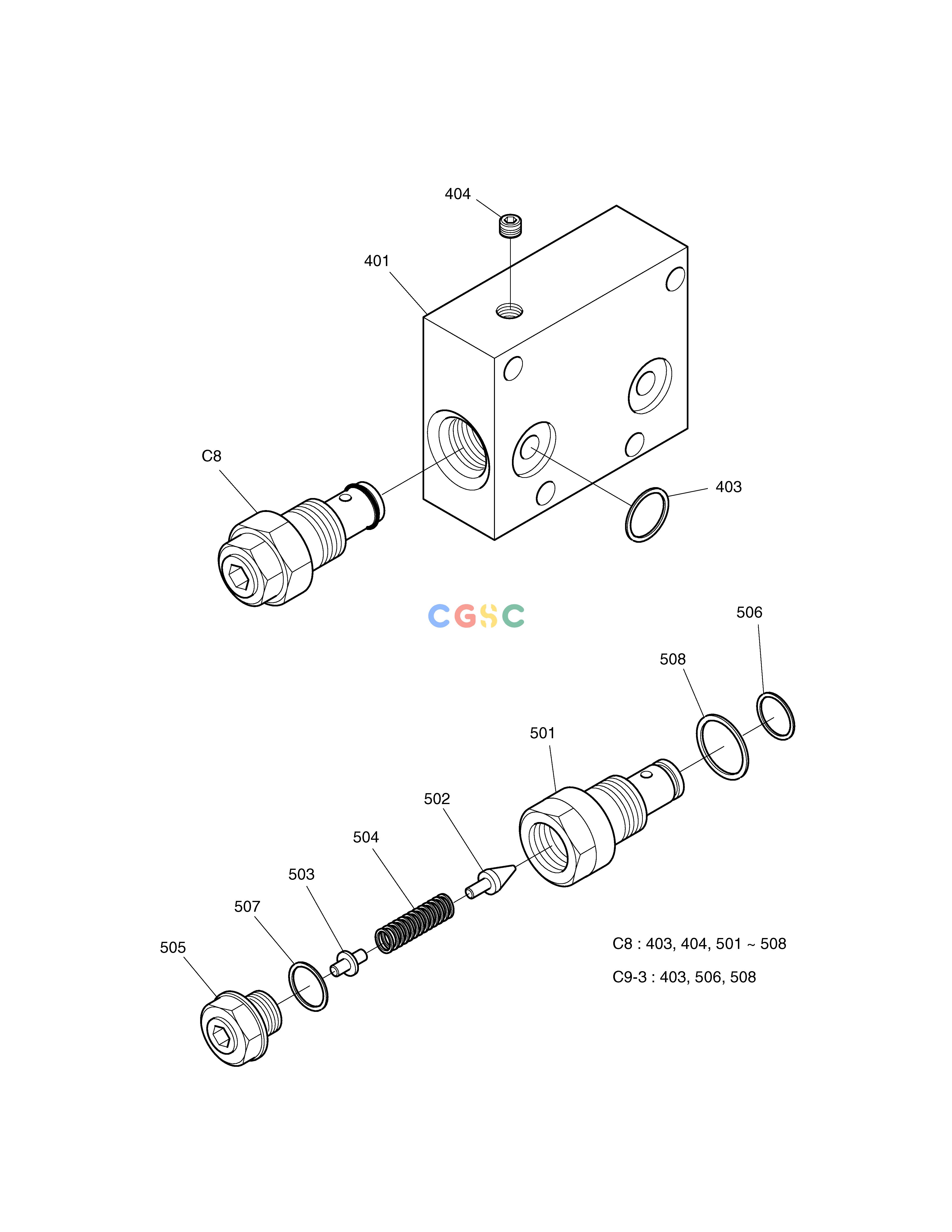

斗山零件查询OVERLOAD RELIEF SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00265A
|
[2] |
TRAVEL DEVICE
|
|
| -. |
ZR-GO1-H-5931A
|
[1] |
OVERLOAD RELIEF SUB ASS'Y
|
|
| 401. |
NA00079
|
[1] |
BODY
|
|
| 403. |
RO-P12-90
|
[2] |
O-RING
|
|
| 404. |
TPUA-1/16
|
[2] |
PLUG
|
|
| 501. |
NA00921
|
[2] |
. HEAD
|
|
| 502. |
NA00894
|
[2] |
|
|
| 503. |
NA00503
|
[2] |
BALL
|
|
| 504. |
NA01182
|
[2] |
. SPRING
|
|
| 505. |
NA00571
|
[2] |
|
|
| 506. |
RO-P9-90
|
[2] |
O-RING
|
|
| 507. |
RO-P10-90
|
[2] |
O-RING
|
|
| 508. |
RO-P14-90
|
[2] |
O-RING
|
|
| C8. |
ZR-O1-H-5931A
|
[2] |
RELIEF CARTRIDGE SUB ASS'Y
|
|
| C9-3. |
GHS-7-3-5931B
|
[1] |
SEAL KIT SUB ASS'Y
|
|
