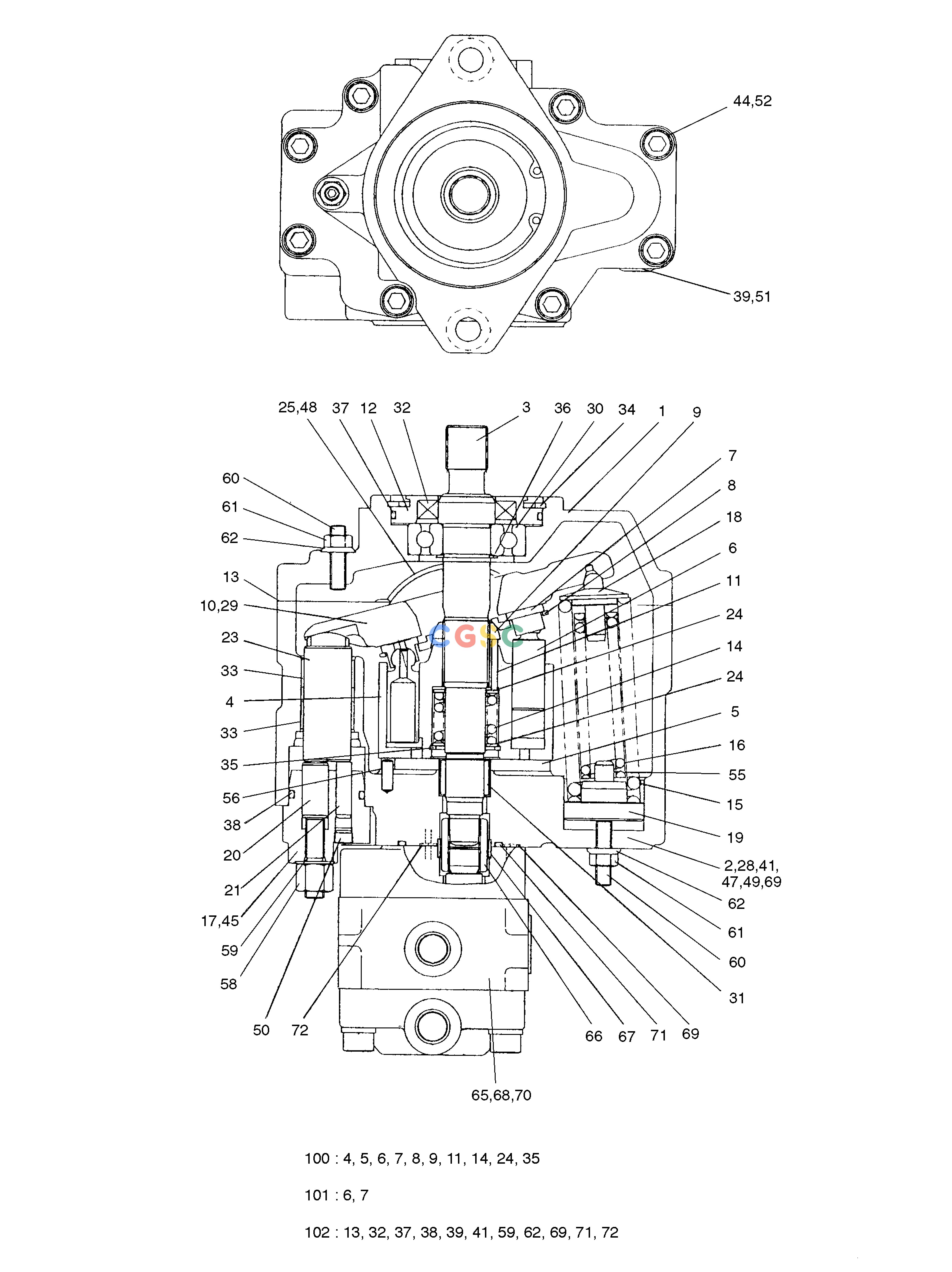

斗山零件查询MAIN PUMP SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
373 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00261A
|
[1] |
PUMP;MAIN
|
|
| 1. |
FZD-4323-1-01
|
[1] |
BODY S
|
|
| 10. |
FZD-4401-1-10
|
[1] |
PLATE;SWASH
|
|
| 100. |
PDBG-102200
|
[1] |
CYLINDER BARREL KIT
|
|
| 101. |
FZS-2230-3-42
|
[1] |
PISTON ASS'Y
|
|
| 102. |
PDDS-102610
|
[1] |
SEAL KIT
|
|
| 11. |
PS35-102000
|
[3] |
BEARING;NEEDLE
|
|
| 12. |
FZD-4020-12
|
[1] |
HOLDER;SEAL
|
|
| 13. |
FZD-4020-13-4
|
[1] |
PACKING
|
|
| 14. |
FZS-2210-14-36
|
[1] |
SPRING
|
|
| 15. |
FZD-4357-1-15
|
[1] |
SPRING T1
|
|
| 16. |
FZS-22301632T2
|
[1] |
SPRING T2
|
|
| 17. |
FZD-401917-7.5
|
[1] |
SLEEVE
|
|
| 18. |
FZD4402-1-18
|
[1] |
HOLDER;SPRING
|
|
| 19. |
FZD-4020-19
|
[1] |
GUIDE;SPRING
|
|
| 2. |
FZD-4551-1-02
|
[1] |
BODY H
|
|
| 20. |
FZD-4020-20
|
[1] |
ROD P
|
|
| 21. |
FZD-401921-7.5
|
[1] |
ROD G
|
|
| 23. |
FZD-4020-23
|
[1] |
PISTON;CONTROL
|
|
| 24. |
FZS-2620-22
|
[2] |
RETAINER
|
|
| 25. |
FZD-4323-1-25
|
[2] |
BUSH;THRUST
|
|
| 28. |
FZS-2448-29-05
|
[1] |
CHOCK
|
|
| 29. |
FZS-2448-29-05
|
[1] |
CHOCK
|
|
| 3. |
FZD-4527-2-03
|
[1] |
SHAFT
|
|
| 30. |
6305
|
[1] |
BEARING;BALL
|
|
| 31. |
TA2020Z
|
[1] |
BEARING;NEEDLE
|
|
| 32. |
SCJY-305210-V
|
[1] |
SEAL;OIL
|
|
| 33. |
CB85-2515
|
[2] |
BEARING;SLIDING
|
|
| 34. |
RH-80
|
[1] |
RING;SNAP
|
|
| 35. |
RH-35
|
[1] |
RING;SNAP
|
|
| 36. |
RA-25
|
[1] |
RING;SNAP
|
|
| 37. |
RO-G75-90
|
[1] |
O-RING
|
|
| 38. |
RO-G35-90
|
[1] |
O-RING
|
|
| 39. |
RO-P11-90
|
[1] |
O-RING
|
|
| 4. |
FZD-4020-1-04
|
[1] |
BARREL;CYLINDER
|
|
| 41. |
RO-P8-90
|
[2] |
O-RING
|
|
| 44. |
TH-10X35
|
[8] |
BOLT
|
|
| 45. |
TH-10X30
|
[2] |
BOLT
|
|
| 47. |
PP-H7-6X10
|
[2] |
PIN;PARALLEL
|
|
| 48. |
TXC-5X8
|
[2] |
SCREW
|
|
| 49. |
TPUA-1/16
|
[6] |
PLUG
|
|
| 5. |
FZD-4126-1-05
|
[1] |
PLATE;VALVE
|
|
| 50. |
TPHA-1/8
|
[1] |
PLUG
|
|
| 51. |
GPF1/4
|
[1] |
PLUG
|
|
| 52. |
WS-B-10
|
[8] |
WASHER;SPRING
|
|
| 55. |
PPS-W-10X32
|
[1] |
PIN;SPRING
|
|
| 56. |
PPS-W-6X16
|
[1] |
PIN;SPRING
|
|
| 58. |
FZD-4020-58
|
[1] |
BOLT ASS'Y
|
|
| 59. |
RO-P8-90
|
[1] |
O-RING
|
|
| 6. |
FZS-2230-06-42
|
[10] |
PISTON
|
|
| 60. |
THS-A-8X35
|
[2] |
SCREW;STUD
|
|
| 61. |
NH-A-8
|
[2] |
NUT
|
|
| 62. |
WD8X16X2.0
|
[2] |
WASHER;SEAL
|
|
| 65. |
DNP21-9.54.5
|
[1] |
GEAR PUMP ASS'Y
|
|
| 66. |
FZD-4019166285
|
[1] |
COUPLING
|
|
| 67. |
FZS-2036-73
|
[1] |
COLLAR
|
|
| 68. |
TB11-8X25
|
[2] |
BOLT
|
|
| 69. |
RO-P7-90
|
[1] |
O-RING
|
|
| 7. |
FZS-2230-07-42
|
[10] |
SHOE
|
|
| 70. |
HTW-8
|
[2] |
WASHER
|
|
| 71. |
RO-G55-90
|
[1] |
O-RING
|
|
| 72. |
RO-P8-90
|
[1] |
O-RING
|
|
| 8. |
FZS-2230-08-42
|
[1] |
HOLDER;SHOE
|
|
| 9. |
PS67-102001
|
[1] |
HOLDER;BARREL
|
|
