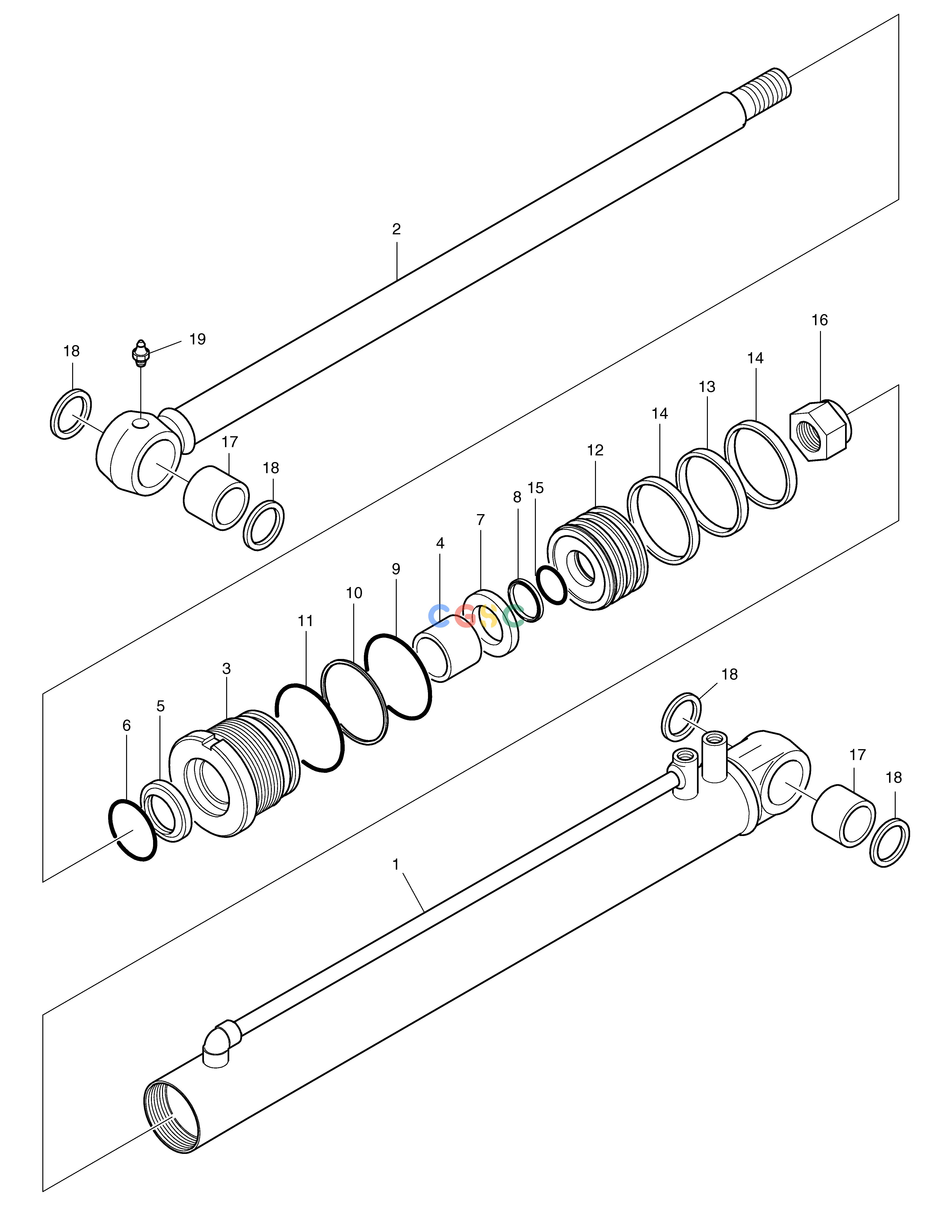

斗山零件查询SWING CYLINDER SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
218 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9217AKT
|
[1] |
SEAL KIT;SWING CYL.
|
|
| -. |
2440-9300E
|
[1] |
CYLINDER;SWING
|
|
| 1. |
4111-0N0-D291
|
[1] |
TUBE ASS'Y
|
|
| 10. |
6113-112-0550
|
[1] |
RING;BACK UP
|
D501712
|
| 11. |
6111-212-0600
|
[1] |
O-RING 1BG-60
|
D500824
|
| 12. |
4711-3N0-4060
|
[1] |
PISTON
|
|
| 13. |
6119-171-0600
|
[1] |
SEAL;SLIPPER
|
|
| 14. |
6116-111-60B0
|
[2] |
RING;WEAR
|
D511151
|
| 15. |
6111-212-0250
|
[1] |
O-RING 1BG-25
|
D510123
|
| 16. |
6223-322-0240
|
[1] |
NUT;NYLON
|
|
| 17. |
6341-170-4000
|
[2] |
BUSH
|
|
| 18. |
6120-252-0350
|
[4] |
PIN;WIPPER
|
|
| 19. |
6350-112-0070
|
[1] |
NIPPLE;GREASE
|
|
| 2. |
4511-0N0-4651
|
[1] |
PISTON ROD ASS'Y
|
|
| 3. |
4811-3N0-3940
|
[1] |
ROD COVER
|
|
| 4. |
6340-100-3970
|
[1] |
BUSH
|
|
| 5. |
6120-181-0350
|
[1] |
WIPPER;DUST
|
|
| 6. |
6611-100-0470
|
[1] |
STOPPER
|
|
| 7. |
6112-111-0350
|
[1] |
U-PACKING
|
D500808
|
| 8. |
6113-312-0350
|
[1] |
RING;BACK UP
|
D501715
|
| 9. |
6111-212-0550
|
[1] |
O-RING 1BG-55
|
D501261
|
