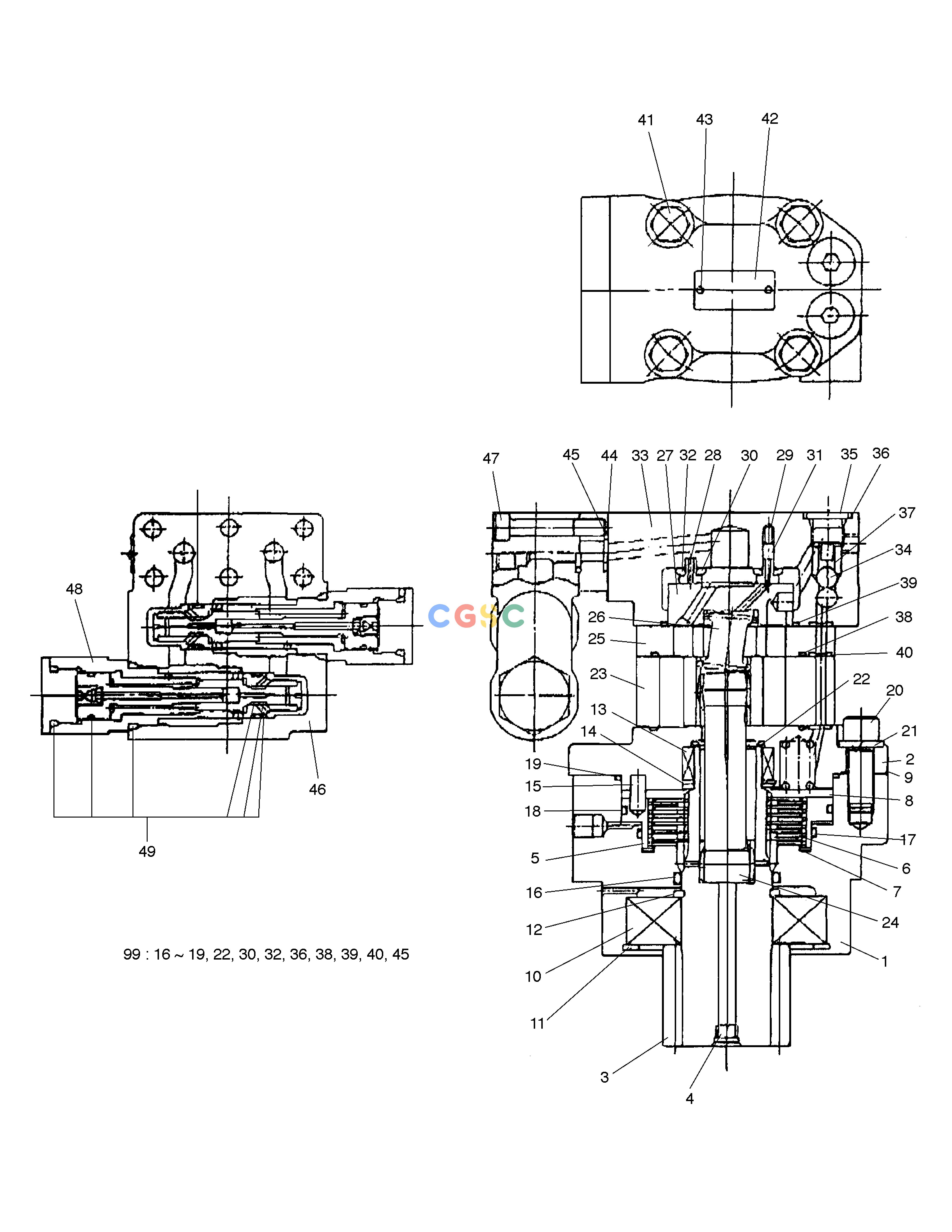

斗山零件查询SWING MOTOR SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
595 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2401-9217
|
[1] |
SWING MOTOR
|
|
| 1. |
AD0784C
|
[1] |
HOUSING;BEARING
|
|
| 10. |
AA0006A-5
|
[1] |
BEARING;BALL
|
|
| 11. |
AA00017A-100
|
[1] |
STOP RING φ100
|
|
| 12. |
AD0741A
|
[1] |
RING;RETAINING
|
|
| 13. |
AD0789A
|
[1] |
BEARING;REAR
|
|
| 14. |
AA0032A-47
|
[1] |
STOP RING
|
|
| 15. |
A42027-6
|
[2] |
PIN
|
|
| 16. |
AD0680A
|
[1] |
X-RING
|
|
| 17. |
AA0014B-85
|
[1] |
O-RING 1BG85
|
|
| 18. |
AA0014B-100
|
[1] |
O-RING 1BG100
|
|
| 19. |
AA0015B-156
|
[1] |
O-RING
|
|
| 2. |
AD0733C
|
[1] |
FLANGE;MOUNTING
|
|
| 20. |
A41059-1
|
[4] |
BOLT;SOCKET
|
|
| 21. |
A41060
|
[4] |
WASHER;SPRING
|
|
| 22. |
9050
|
[1] |
SEAL
|
|
| 23. |
7403CH-601
|
[1] |
ROLLER
|
|
| 24. |
AD0633C-11
|
[1] |
DRIVE
|
|
| 25. |
8432S-4
|
[1] |
PLATE;VALVE
|
|
| 26. |
8433
|
[1] |
DRIVE;VALVE
|
|
| 27. |
8435S-6
|
[1] |
VALVE
|
|
| 28. |
8915-1
|
[1] |
PLATE;BALANCE
|
|
| 29. |
7383
|
[2] |
SPRING
|
|
| 3. |
AD0781B
|
[1] |
GEAR;PINION
|
|
| 30. |
9135-1
|
[1] |
SEAL;INNER FACE
|
|
| 31. |
14351
|
[2] |
PIN
|
|
| 32. |
9135-2
|
[1] |
SEAL;OUTER FACE
|
|
| 33. |
AD0736C
|
[1] |
HOUSING;VALVE
|
|
| 34. |
AA0013A-1
|
[2] |
BALL;STEEL
|
|
| 35. |
AH0110A
|
[2] |
PLUG
|
|
| 36. |
A40001-14
|
[2] |
O-RING(IBP-14)
|
|
| 37. |
AH0111A-2
|
[2] |
SPRING
|
|
| 38. |
9022S-6
|
[2] |
O-RING
|
|
| 39. |
9022S-2
|
[1] |
O-RING
|
|
| 4. |
A42041
|
[2] |
PLUG;SOCKET
|
|
| 40. |
9022S-12
|
[3] |
O-RING
|
|
| 41. |
14314
|
[4] |
BOLT;HEX
|
|
| 42. |
NA00825
|
[1] |
|
|
| 43. |
NA00994
|
[2] |
RIVET
|
|
| 44. |
AE0085B
|
[1] |
PLATE;SUB
|
|
| 45. |
A40001-16
|
[2] |
O-RING
|
|
| 46. |
AHO3470
|
[1] |
BODY;VALVE
|
|
| 47. |
AA0033A-50
|
[6] |
BOLT
|
|
| 48. |
AH0352B-00
|
[2] |
CARTRIDGE ASS'Y
|
|
| 49. |
MA5507
|
[1] |
SEAL KIT;RELIEF V/V(49.50.51.52.53)
|
|
| 5. |
AD0734B
|
[1] |
PISTON;BRAKE
|
|
| 6. |
AD0787A
|
[6] |
DISC;INNER
|
|
| 7. |
AE0738A
|
[6] |
DISC;OUTER
|
|
| 8. |
AD0739A
|
[1] |
PLATE;BUSH
|
|
| 9. |
AD0053B-1
|
[8] |
SPRING COIL
|
|
| 99. |
AD0816A
|
[1] |
SEAL KIT
|
|
