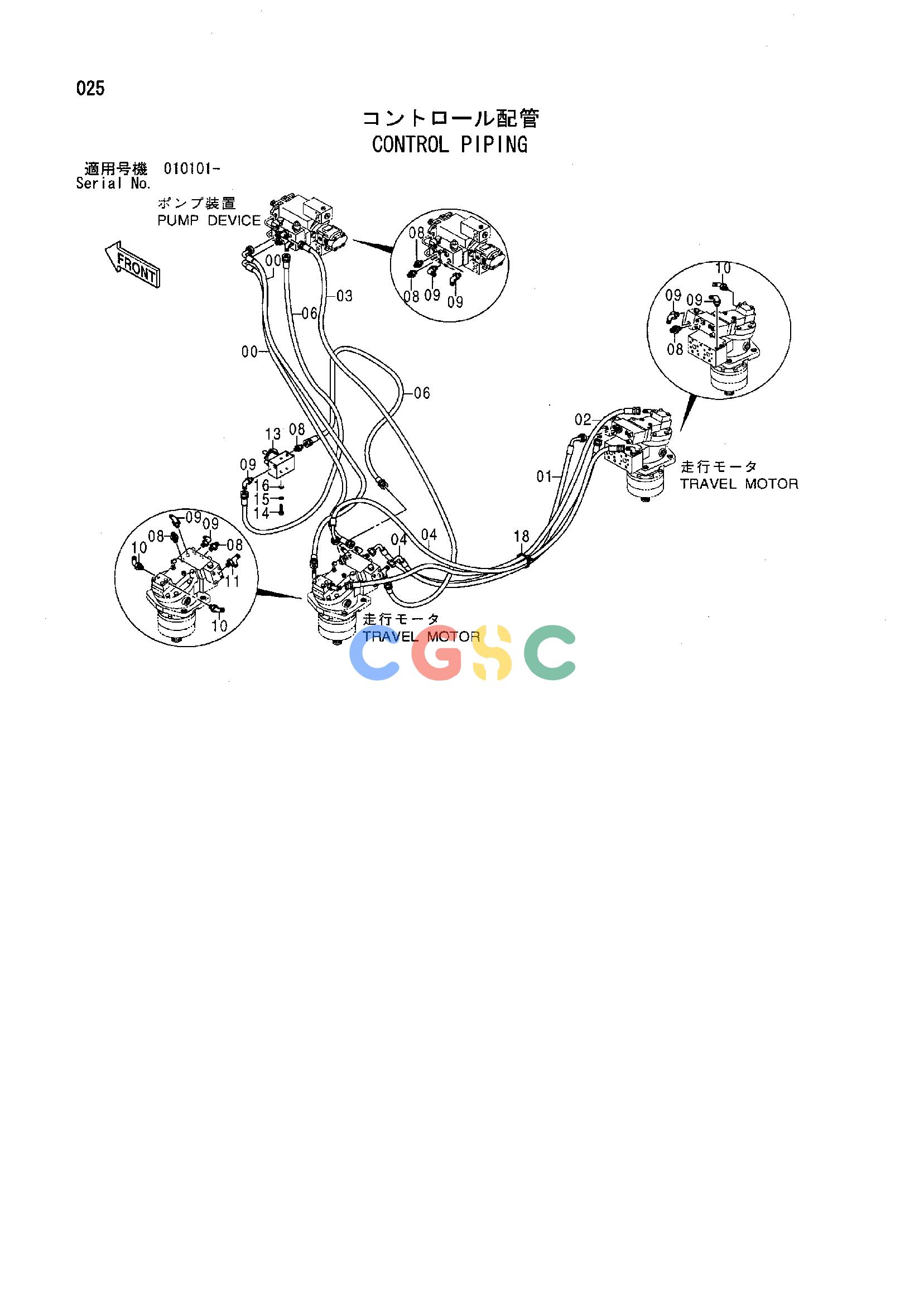

日立零件查询（CP210）CONTROL PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
373 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426283 | [2] | HOSE | |
| 01. | 424297 | [1] | HOSE | |
| 02. | 424298 | [1] | HOSE | |
| 03. | 424122 | [1] | HOSE | |
| 04. | 426168 | [2] | HOSE | |
| 06. | 426158 | [2] | HOSE | |
| 08. | 424075 | [6] | ADAPTER;S | |
| 08A. | 438402 | [1] | O-RING | |
| 09. | 424047 | [7] | ELBOW;S | |
| 09A. | 438402 | [1] | O-RING | |
| 10. | 424072 | [3] | ELBOW;S | |
| 10A. | 438402 | [1] | O-RING | |
| 11. | 424080 | [1] | TEE;S | |
| 11A. | 438402 | [1] | O-RING | |
| 13. | 424434 | [1] | VALVE | |
| 14. | 500078 | [2] | BOLT | |
| 15. | 947887 | [2] | WASHER;SPRING | |
| 16. | 947324 | [2] | WASHER;PLANE | |
| 18. | 424024 | [6] | CLIP;BAND | |
