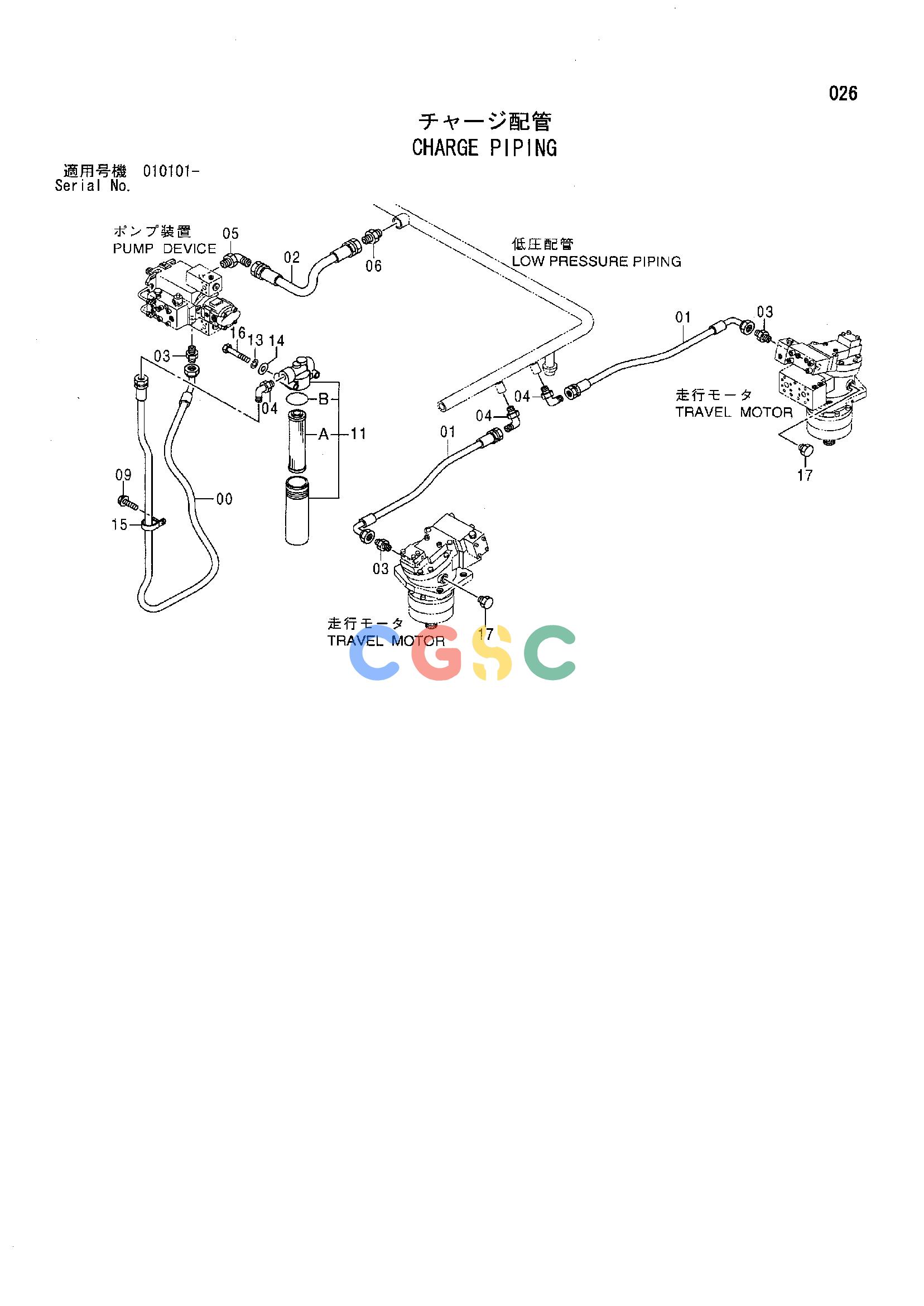

日立零件查询（CP210）CHARGE PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
615 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426171 | [1] | HOSE | |
| 01. | 426173 | [2] | HOSE | |
| 02. | 426174 | [1] | HOSE | |
| 03. | 424125 | [3] | ADAPTER;S | |
| 03A. | 947520 | [1] | O-RING | |
| 04. | 424049 | [3] | ELBOW;S | |
| 04A. | 430623 | [1] | O-RING | |
| 05. | 424050 | [1] | ELBOW;S | |
| 05A. | 947520 | [1] | O-RING | |
| 06. | 424102 | [1] | ADAPTER;S | |
| 06A. | 947520 | [1] | O-RING | |
| 09. | 500048 | [3] | BOLT;SEMS | |
| 11. | 424106 | [1] | FILTER;OIL | |
| 11A. | 424686 | [1] | ELEMENT;FILTER | |
| 11B. | 424739 | [1] | O-RING | |
| 13. | 947887 | [2] | WASHER;SPRING | |
| 14. | 947324 | [2] | WASHER;PLANE | |
| 15. | 424659 | [2] | CLIP | |
| 16. | 500034 | [2] | BOLT | |
| 17. | 425547 | [2] | PLUG | |
