纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6545[001]) - FORESTRY PROTECTIONS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
416 次

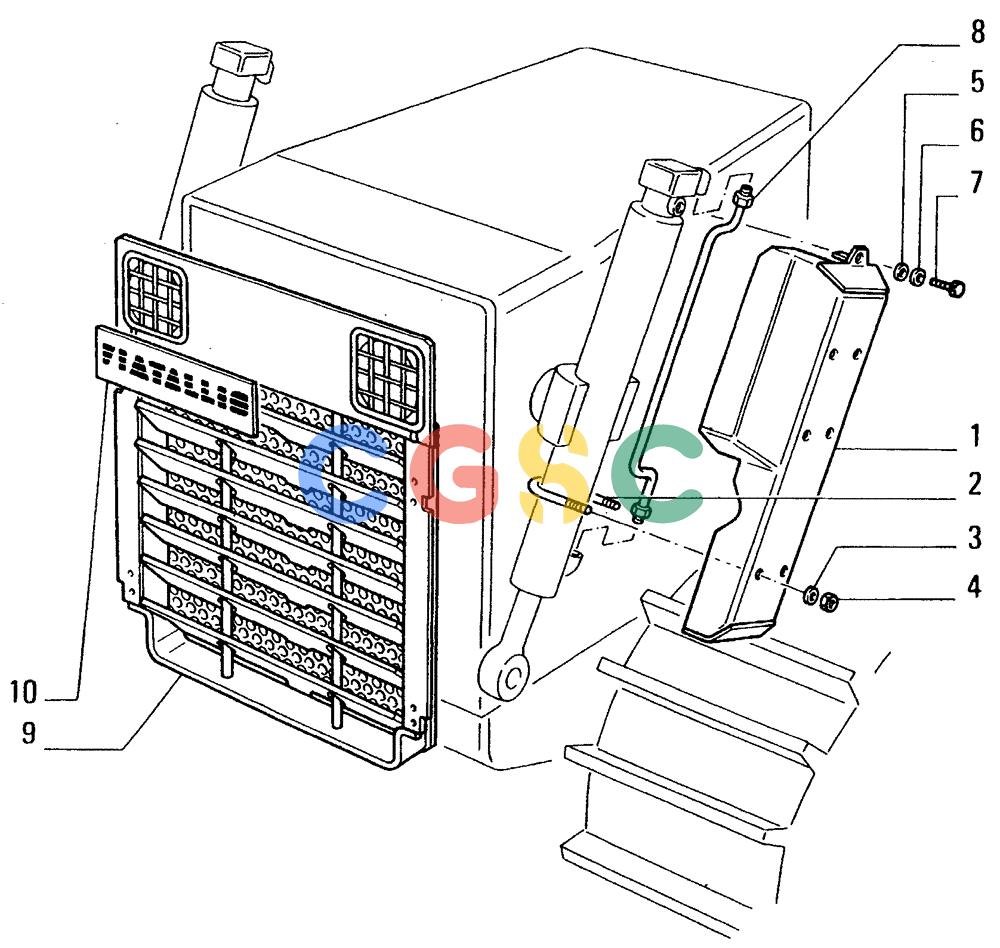

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79085245 | [1] | GUARD | LEC- RIGHT |
| 1. | 79087068 | [1] | GUARD | LEC- LEFT |
| 2. | 79087074 | [6] | BRACKET | LEC |
| 3. | 79005244 | [12] | WASHER,10.6mm ID x 25mm OD x 6mm Thk | LEC |
| 4. | 12577221 | [12] | LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND | LECNUT 10x1,5x12,3 |
| 5. | 14496731 | [2] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 6. | 10615879 | [2] | LOCK WASHER,Serr, M12 | LECWASHER, LOCK, Serr, M12 Superseded by part number: 10615870 |
| 7. | 15973931 | [2] | BOLT,Hex, M12 x 1.5 x 25mm, Cl 10.9, Full Thd | LECSCREW 12x1,5x25 |
| 8. | 79085242 | [1] | RIGID TUBE | LECTUBE - RIGHT |
| 8. | 79087076 | [1] | RIGID TUBE | LECTUBE - LEFT |
| 9. | 79090398 | [1] | GUARD | LEC Superseded by part number: 75128256, 73157414 |
| 10. | 79041020 | [1] | MAKERS BADGE | LECTRADE MARK |
