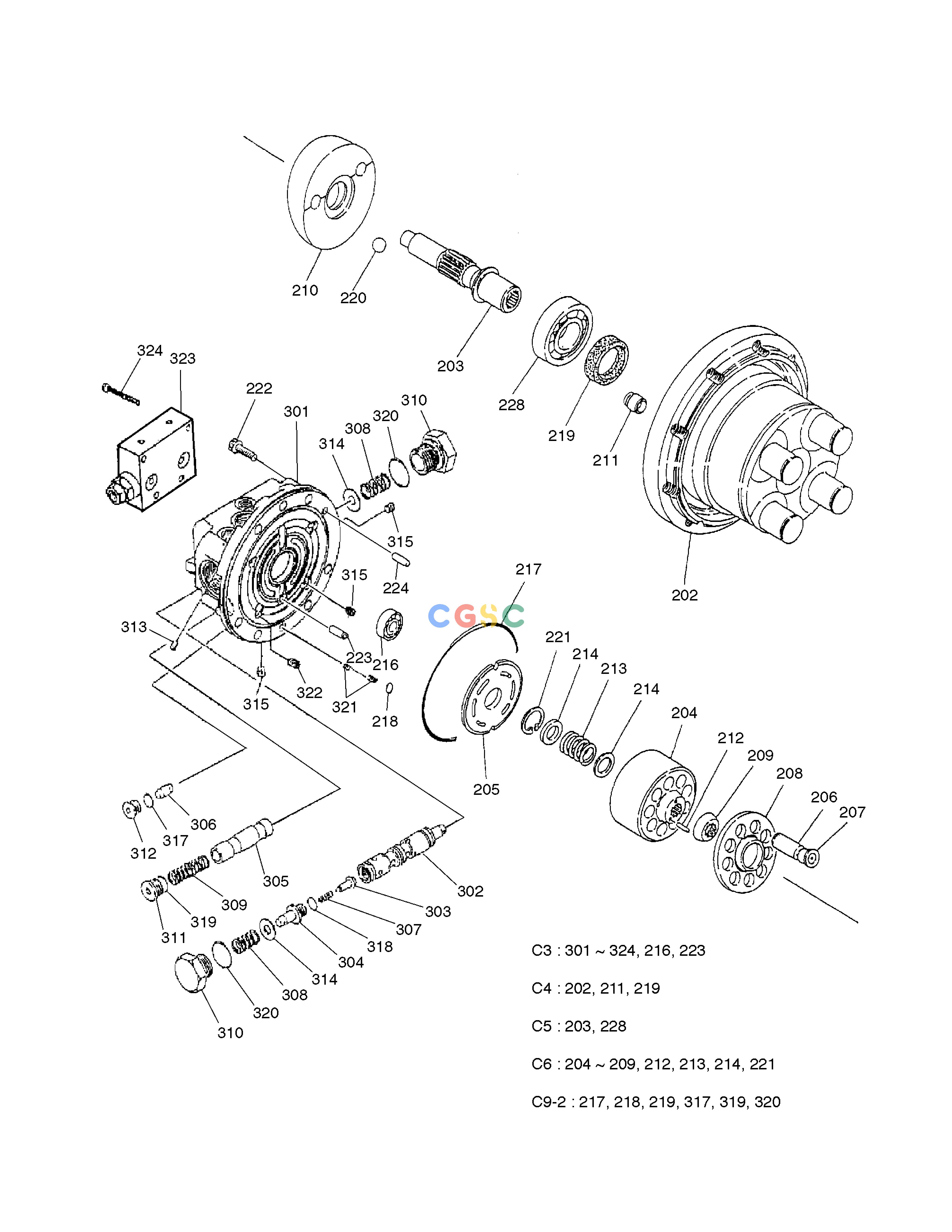

斗山零件查询TRAVEL MOTOR SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
636 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00265A
|
[2] |
TRAVEL DEVICE
|
|
| 202. |
FZD-4333-1-02
|
[1] |
BODY 2
|
|
| 203. |
FZD-4333-1-03
|
[1] |
SHAFT
|
|
| 204. |
FZS-2448-04
|
[1] |
CYLINDER;BARREL
|
|
| 205. |
FZS-2448-05
|
[1] |
PLATE;VALVE
|
|
| 206. |
FZS-2720-063-F
|
[9] |
PISTON
|
|
| 207. |
FZS-2720-073-F
|
[9] |
SHOE
|
|
| 208. |
FZS-2448-08
|
[1] |
HOLDER;SHOE
|
|
| 209. |
FZS-2610-09
|
[1] |
HOLDER;BARREL
|
|
| 210. |
FZD-4349-3-10
|
[1] |
SWASH PLATE
|
|
| 211. |
FZD-4336-1-11
|
[1] |
CONTROL PISTON
|
|
| 212. |
FZS-2448-14
|
[3] |
PIN
|
|
| 213. |
PS30-101000
|
[1] |
SPRING C
|
|
| 214. |
PS29-101000
|
[2] |
RETAINER
|
|
| 216. |
#6201
|
[1] |
BEARING
|
|
| 217. |
RO-G125-90
|
[1] |
O-RING
|
|
| 218. |
RO-P7-90
|
[1] |
O-RING
|
|
| 219. |
SCJY254010
|
[1] |
OIL SEAL
|
|
| 220. |
YB-5/8
|
[2] |
BALL
|
|
| 221. |
RH-28
|
[1] |
RING;SNAP
|
|
| 222. |
TH-10X25
|
[7] |
BOLT;SOCKET HEAD M10X25
|
|
| 223. |
PPS-W-5X12
|
[1] |
PIN;SPRING
|
|
| 224. |
PP-H7-8X15
|
[1] |
PIN
|
|
| 228. |
#6205
|
[1] |
BEARING
|
|
| 301. |
FZD-2448-01
|
[1] |
BODY 1
|
|
| 302. |
FZS-2448-18F-1
|
[1] |
SPOOL
|
|
| 303. |
FZS-2448-19
|
[2] |
VALVE;CHECK
|
|
| 304. |
FZS-2448-20
|
[2] |
SPRING GUIDE
|
|
| 305. |
FZS-2448-21
|
[1] |
SPOOL
|
|
| 306. |
FZS-2448-22
|
[1] |
SHUTTLE SPOOL
|
|
| 307. |
FZS-2448-23-05
|
[2] |
SPRING V1
|
|
| 308. |
FZS-2448-24-7
|
[2] |
SPRING V2
|
|
| 309. |
FZS-2448-25-9
|
[1] |
SPRING V3
|
|
| 310. |
FZS-2448-26
|
[2] |
PLUG
|
|
| 311. |
FZS-2448-27
|
[2] |
PLUG
|
|
| 312. |
FZS-2448-28
|
[2] |
PLUG
|
|
| 313. |
HL68-5X5-05
|
[2] |
CHOKE
|
|
| 314. |
FZS-2448-30
|
[2] |
RING
|
|
| 315. |
TPUA-1/16
|
[5] |
PLUG
|
|
| 317. |
RO-P8-90
|
[2] |
O-RING
|
|
| 318. |
RO-P12.5-70
|
[2] |
O-RING
|
|
| 319. |
RO-P14-90
|
[2] |
O-RING
|
|
| 320. |
RO-P25-90
|
[2] |
O-RING
|
|
| 321. |
HL68-5X5-05
|
[1] |
CHOKE
|
|
| 323. |
ZR-GO1-H-5931A
|
[1] |
OVERLOAD RELIEF SUB ASS'Y
|
|
| 324. |
TH-6X30
|
[4] |
BOLT;SOCKET M6X30
|
|
| C3. |
MHB-1B-AAR2448
|
[1] |
BODY 1 KIT
|
|
| C4. |
MHB-1B-2-4333
|
[1] |
BODY 2 KIT
|
|
| C5. |
MHSH-1B-1-4333
|
[1] |
SHAFT SUB ASS'Y
|
|
| C6. |
MHCB-1-2448
|
[1] |
CYLINDER BARREL KIT
|
|
| C9-2. |
MHS-1B-1-4336
|
[1] |
SEAL KIT
|
|
