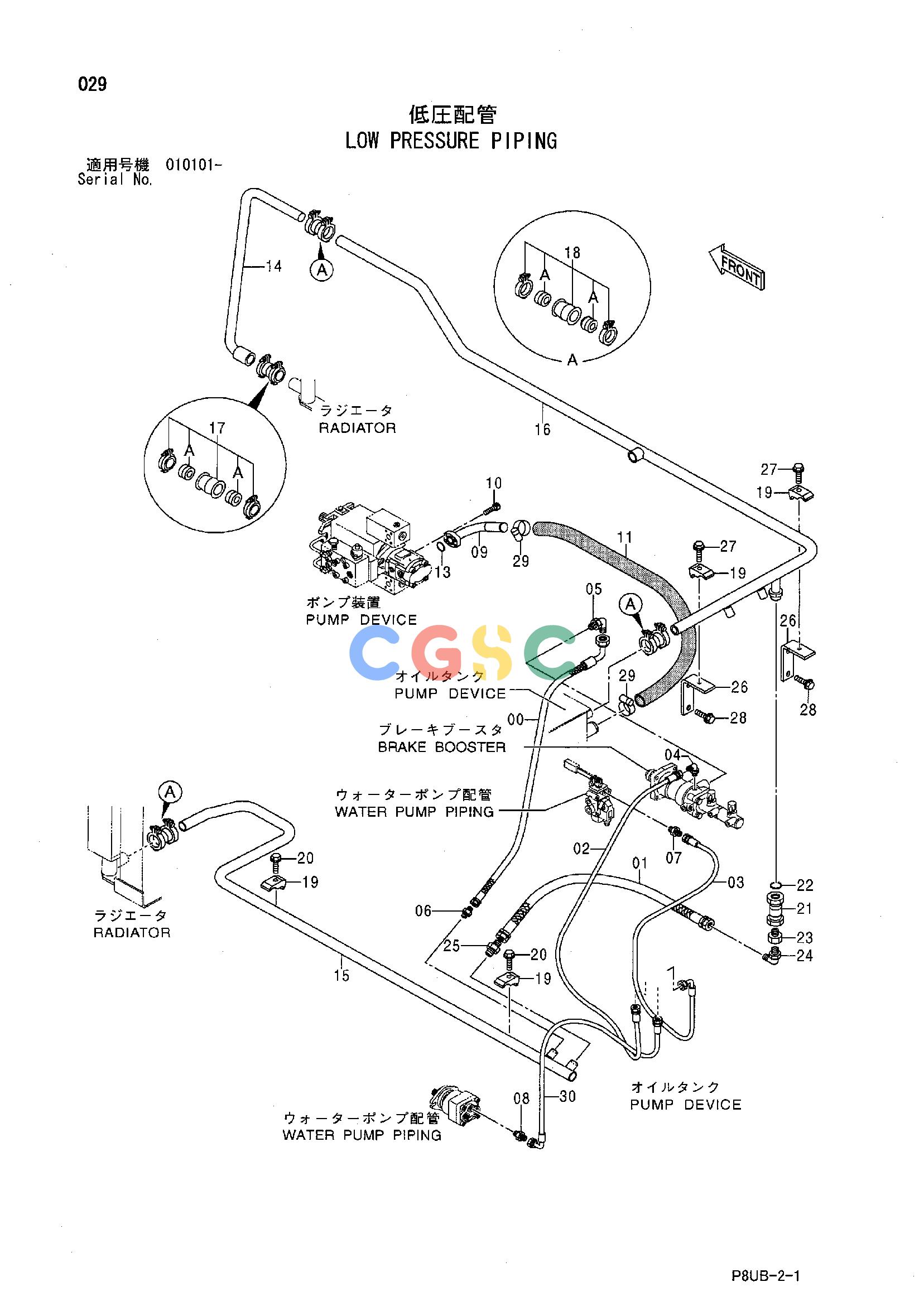

日立零件查询（CP210）LOW PRESSURE PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
264 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426172 | [1] | HOSE | |
| 01. | 426176 | [1] | HOSE | |
| 02. | 426159 | [1] | HOSE | |
| 03. | 426251 | [1] | HOSE | |
| 04. | 424047 | [1] | ELBOW;S | |
| 04A. | 438402 | [1] | O-RING | |
| 05. | 424049 | [1] | ELBOW;S | |
| 05A. | 430623 | [1] | O-RING | |
| 06. | 424085 | [1] | ADAPTER;S | |
| 06A. | 430623 | [1] | O-RING | |
| 07. | 424161 | [1] | ADAPTER;S | |
| 08. | 426150 | [1] | ADAPTER;S | |
| 08A. | 947519 | [1] | O-RING | |
| 09. | 426326 | [1] | PIPE;SUCTION | |
| 10. | 947805 | [4] | BOLT;SOCKET | |
| 11. | 426253 | [1] | HOSE;RUBBER | |
| 13. | 424191 | [1] | O-RING | |
| 14. | 426346 | [1] | PIPE | |
| 15. | 426324 | [1] | PIPE | |
| 16. | 426325 | [1] | PIPE | |
| 17. | 424028 | [1] | COUPLING | |
| 17A. | 426149 | [2] | SEAL;RING | |
| 18. | 424029 | [3] | COUPLING | |
| 18A. | 426148 | [2] | SEAL;RING | |
| 19. | 424062 | [9] | CLAMP;PIPE | |
| 20. | 500049 | [7] | BOLT;SEMS | |
| 21. | 425108 | [1] | VALVE | |
| 22. | 424168 | [1] | O-RING | |
| 23. | 424115 | [1] | REDUCER;S | |
| 24. | 424050 | [1] | ELBOW;S | |
| 24A. | 947520 | [1] | O-RING | |
| 25. | 424102 | [1] | ADAPTER;S | |
| 25A. | 947520 | [1] | O-RING | |
| 26. | 426356 | [2] | BRACKET | |
| 27. | 500133 | [2] | BOLT;SEMS | |
| 28. | 500028 | [4] | BOLT;SEMS | |
| 29. | 448186 | [2] | CLAMP;HOSE | |
| 30. | 426293 | [1] | HOSE | |
