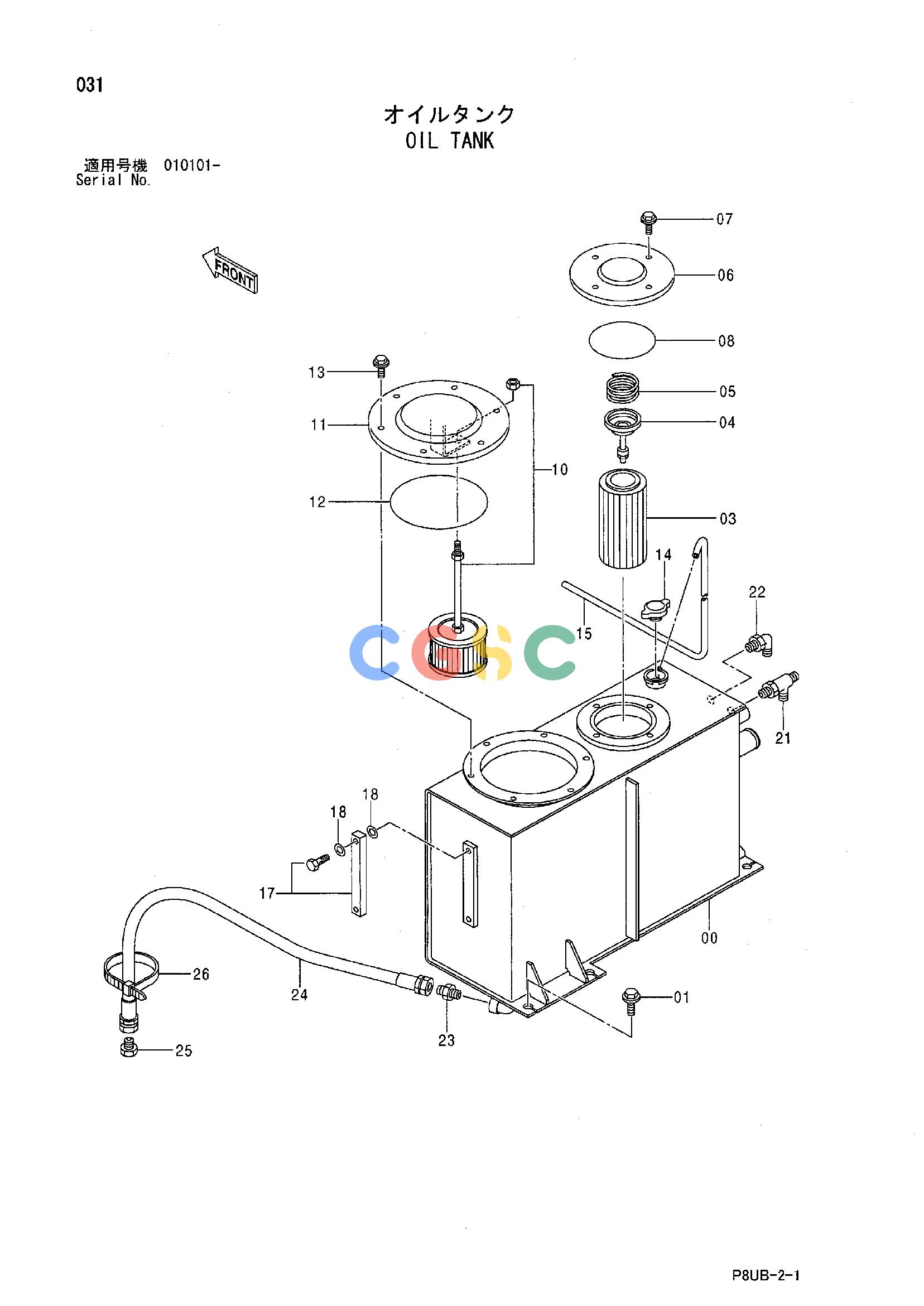

日立零件查询（CP210）OIL TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
250 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426301 | [1] | TANK;OIL | |
| 01. | 500193 | [4] | BOLT;SEMS | |
| 03. | 424306 | [1] | ELEMENT;FILTER | |
| 04. | 424033 | [1] | VALVE | |
| 05. | 424034 | [1] | SPRING | |
| 06. | 426139 | [1] | COVER | |
| 07. | 500048 | [4] | BOLT;SEMS | |
| 08. | 426220 | [1] | O-RING | |
| 10. | 425990 | [1] | FILTER;SUCTION | |
| 11. | 426219 | [1] | COVER | |
| 12. | 424190 | [1] | O-RING | |
| 13. | 500028 | [6] | BOLT;SEMS | |
| 14. | 424985 | [1] | CAP | |
| 15. | 425598 | [1] | HOSE;VINYL | |
| 17. | 424175 | [1] | GAUGE;LEVEL | |
| 18. | 162010 | [4] | WASHER;SEAL | |
| 21. | 424121 | [1] | TEE;S | |
| 21A. | 947519 | [1] | O-RING | |
| 22. | 426161 | [1] | ELBOW;S | |
| 22A. | 947519 | [1] | O-RING | |
| 23. | 426155 | [1] | ADAPTER;S | |
| 24. | 426165 | [1] | HOSE | |
| 25. | 424968 | [1] | PLUG | |
| 26. | 424024 | [1] | CLIP;BAND | |
