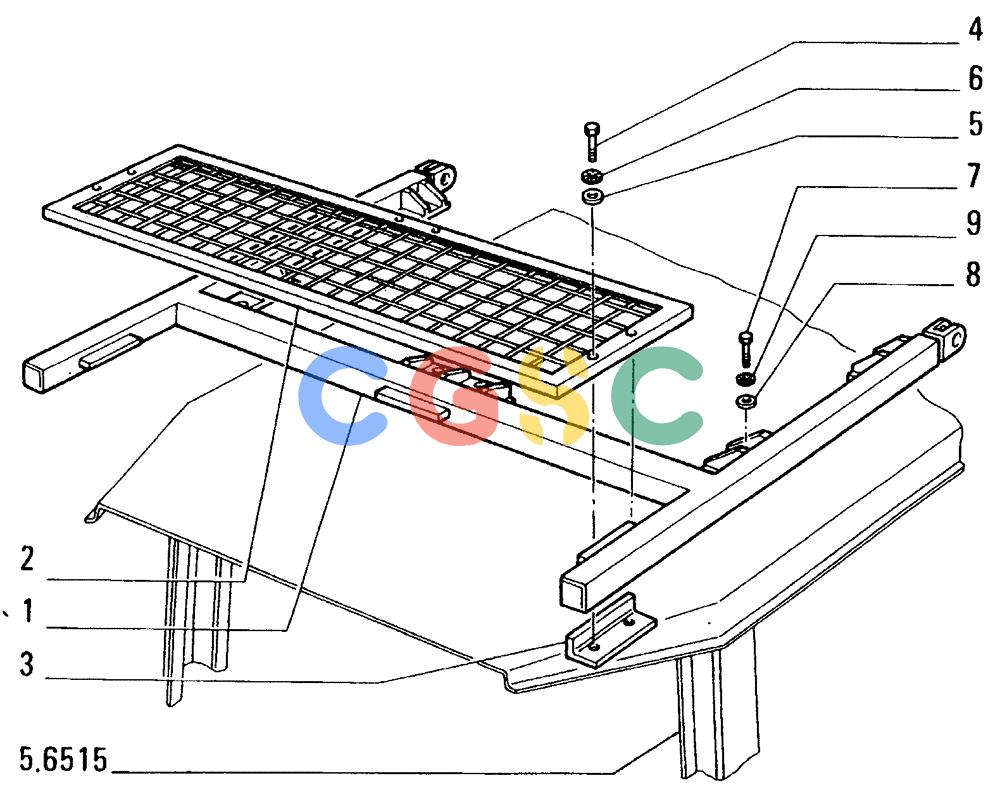

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6546[002]) - SWEEPS-UPPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
751 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79086382 | [1] | GUARD | LECSWEEPS |
| 2. | 79086399 | [1] | GRILLE | LECNET |
| 3. | 76001715 | [3] | BRACKET | LEC |
| 4. | 11107331 | [6] | SCREW,Hex, M10 x 55mm, Cl 10.9 | LEC |
| 5. | 14496631 | [6] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 6. | 10615779 | [6] | LOCK WASHER,Ext Tooth, M10 | MKTWASHER, LOCK, Ext Tooth, M10 Superseded by part number: 12605671 |
| 7. | 11112631 | [8] | BOLT,Hex, M12 x 35mm, Cl 10.9 | LECBOLT, Hex, M12 x 35, 10.9 Superseded by part number: 626-12035 |
| 8. | 79005242 | [8] | WASHER,12.6mm ID x 28mm OD x 7mm Thk | LEC |
| 9. | 10615879 | [8] | LOCK WASHER,Serr, M12 | LECWASHER, LOCK, Serr, M12 Superseded by part number: 10615870 |
