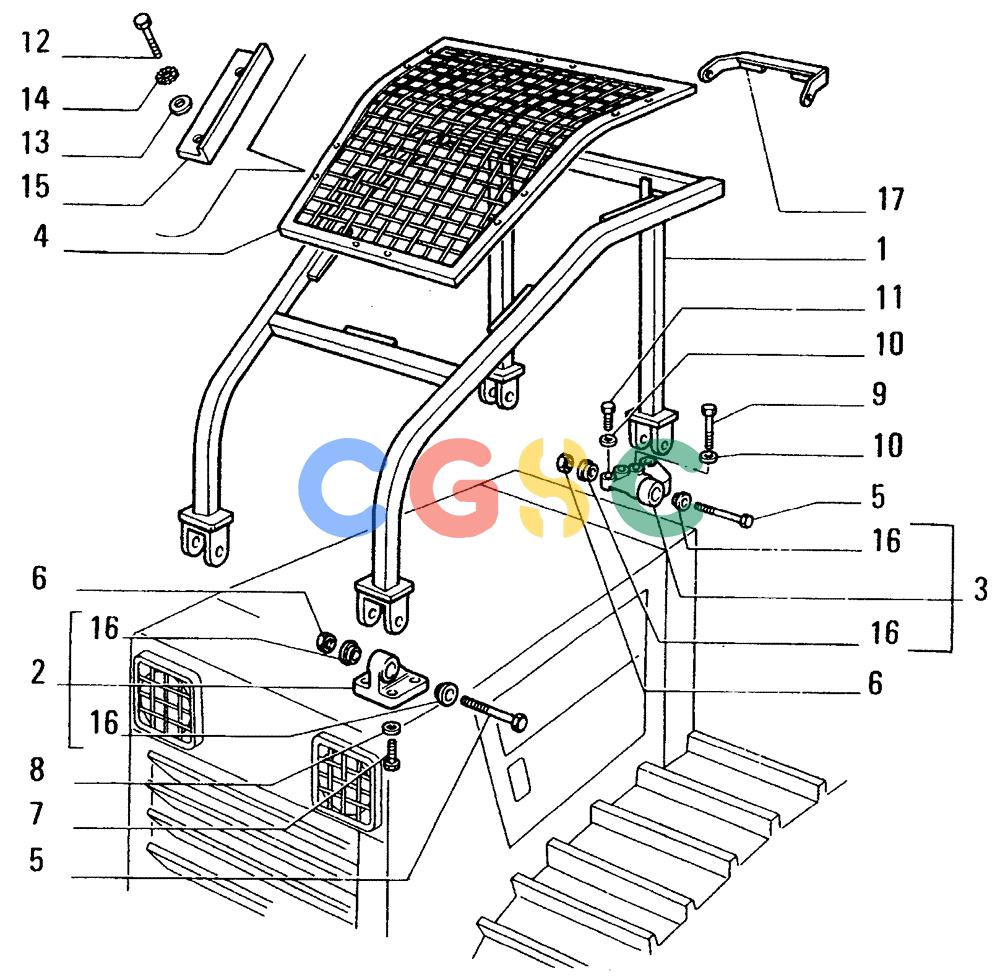

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79086224 | [1] | GUARD | LECSWEEPS |
| 2. | 79090473 | [2] | SUPPORT | LEC Superseded by part number: 79109793 |
| 3. | 79093067 | [1] | SUPPORT | LEC |
| 3. | 79093069 | [1] | SUPPORT | LEC |
| 4. | 79086337 | [1] | GRILLE | LECNET |
| 5. | 79085442 | [4] | SCREW,M24 x 2 x 2mm | LEC |
| 6. | 12575321 | [4] | NUT,M24 x 2, Cl 10 | LECNUT, LOCK, M24 x 2, Cl 10 |
| 7. | 11408631 | [6] | BOLT,Hex, M20 x 1.5 x 45, 10.9, Full Thd | LEC Superseded by part number: 514-1211 |
| 8. | 79032222 | [6] | WASHER,21mm ID x 40mm OD x 8mm Thk | LEC |
| 9. | 15981831 | [4] | BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9 | MKT Superseded by part number: 15981830 |
| 10. | 79005240 | [8] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 11. | 15835231 | [4] | BOLT,Hex, M16 x 1.5 x 70mm, Cl 10.9 | BHBBOLT, Hex, M16 x 1.5 x 70, 10.9 |
| 12. | 11107331 | [12] | SCREW,Hex, M10 x 55mm, Cl 10.9 | LEC |
| 13. | 14496631 | [12] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 14. | 10615779 | [12] | LOCK WASHER,Ext Tooth, M10 | MKTWASHER, LOCK, Ext Tooth, M10 Superseded by part number: 12605671 |
| 15. | 76001715 | [6] | BRACKET | LEC |
| 16. | 79060730 | [2] | BUSHING | LEC |
| 17. | 79100808 | [1] | SUPPORT | LEC Superseded by part number: 76029095 |
