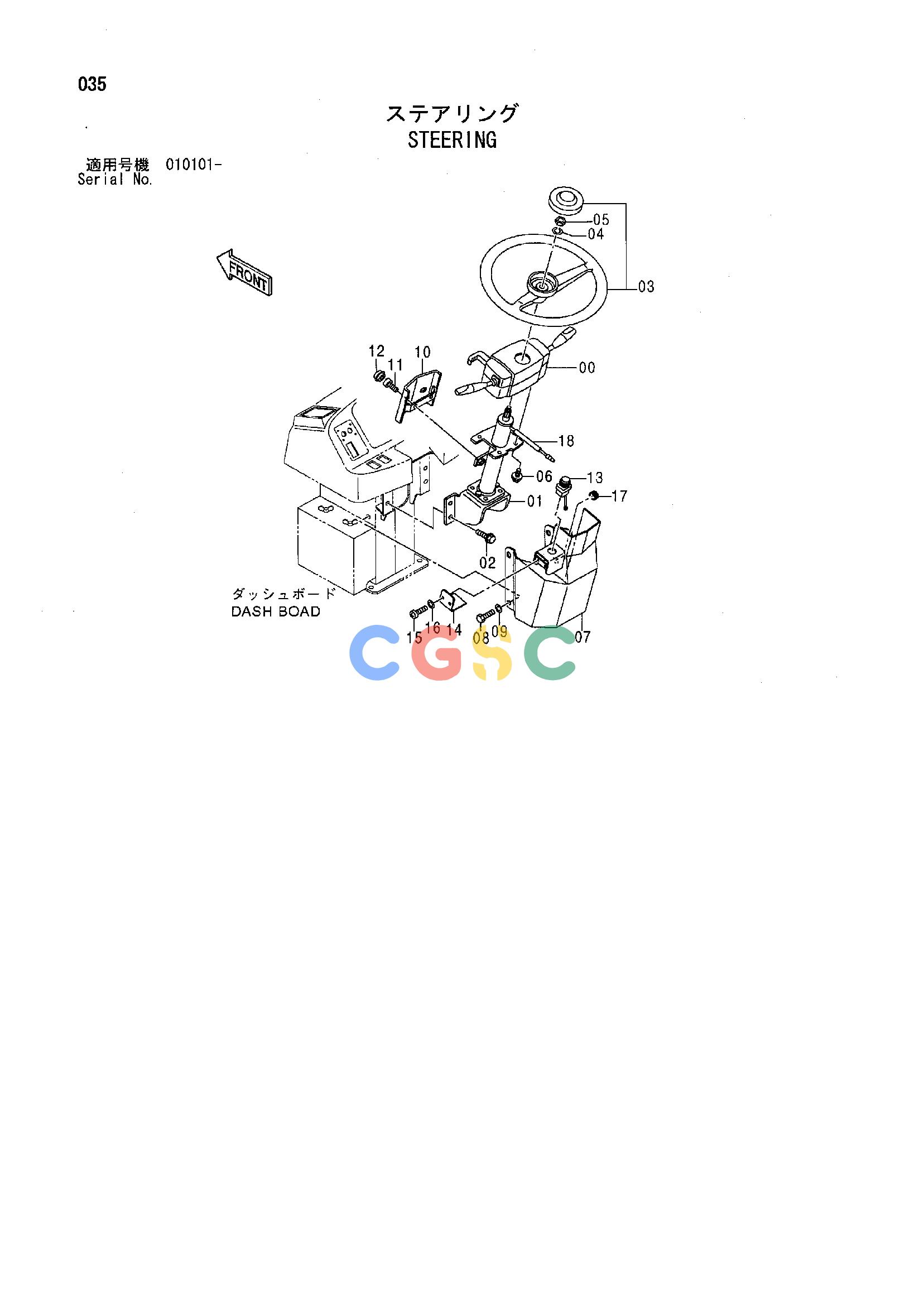

日立零件查询（CP210）STEERING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
585 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 424734 | [1] | SWITCH | |
| 01. | 424323 | [1] | COLUMN;STEERING | |
| 02. | 500028 | [4] | BOLT;SEMS | |
| 03. | 439177 | [1] | WHEEL;STEERING | |
| 04. | 947888 | [1] | WASHER;SPRING | |
| 05. | 947856 | [1] | NUT | |
| 06. | 947619 | [3] | BOLT;SEMS | |
| 07. | 426308 | [1] | COVER | |
| 08. | 947631 | [4] | BOLT | |
| 09. | 947887 | [4] | WASHER;SPRING | |
| 10. | 424177 | [1] | COVER | |
| 11. | 426226 | [2] | BOLT;SOCKET | |
| 12. | 424146 | [2] | CAP | |
| 13. | 925329 | [1] | SWITCH | |
| 14. | 426263 | [1] | COVER | |
| 15. | 424222 | [2] | SCREW | |
| 16. | 947886 | [2] | WASHER;SPRING | |
| 17. | 426151 | [1] | BUSHING;RUBBER | |
| 18. | 424419 | [1] | TUBE | |
