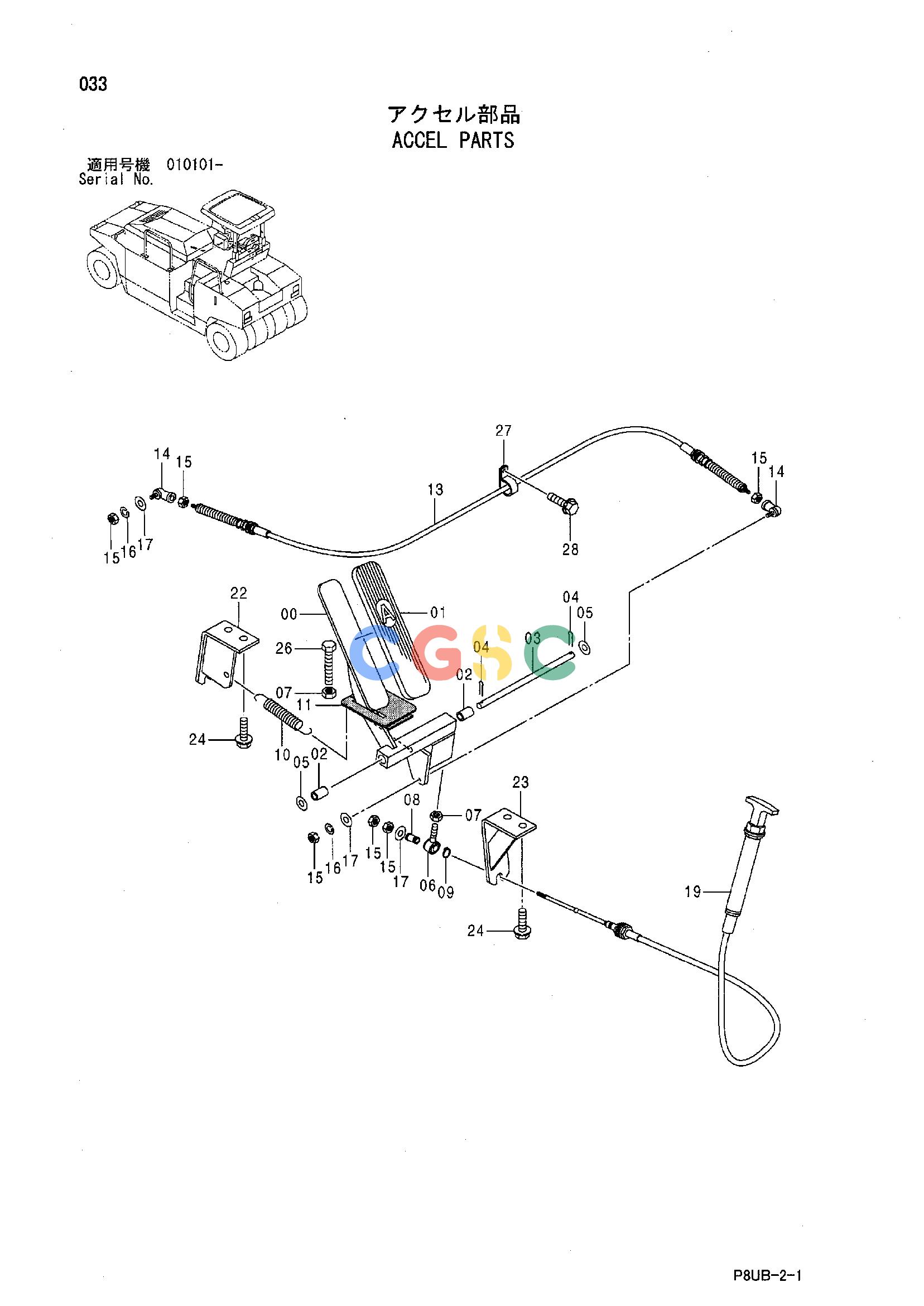

日立零件查询（CP210）ACCEL PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
434 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426302 | [1] | PEDAL;ACCEL | |
| 01. | 424113 | [1] | COVER | |
| 02. | 424052 | [2] | BUSHING | |
| 03. | 424324 | [1] | PIN | |
| 04. | 630008 | [2] | PIN;SPLIT | |
| 05. | 947326 | [2] | WASHER;PLANE | |
| 06. | 424019 | [1] | END;ROD | |
| 07. | 947855 | [2] | NUT | |
| 08. | 424325 | [1] | SEAT;ROD | |
| 09. | 150002 | [1] | RING;RETAINING | |
| 10. | 424153 | [1] | SPRING;TENSION | |
| 11. | 424326 | [1] | BUSHING;RUBBER | |
| 13. | 425991 | [1] | CABLE;CONTROL | |
| 14. | 424025 | [2] | JOINT;BALL | |
| 15. | 947852 | [6] | NUT | |
| 16. | 947855 | [2] | WASHER;SPRING | |
| 17. | 947321 | [2] | WASHER;PLANE | |
| 19. | 425992 | [1] | CABLE;CONTROL | |
| 22. | 426316 | [1] | BRACKET | |
| 23. | 426317 | [1] | BRACKET | |
| 24. | 500048 | [4] | BOLT;SEMS | |
| 26. | 424218 | [1] | BOLT | |
| 27. | 426146 | [1] | CLIP | |
| 28. | 500028 | [1] | BOLT;SEMS | |
