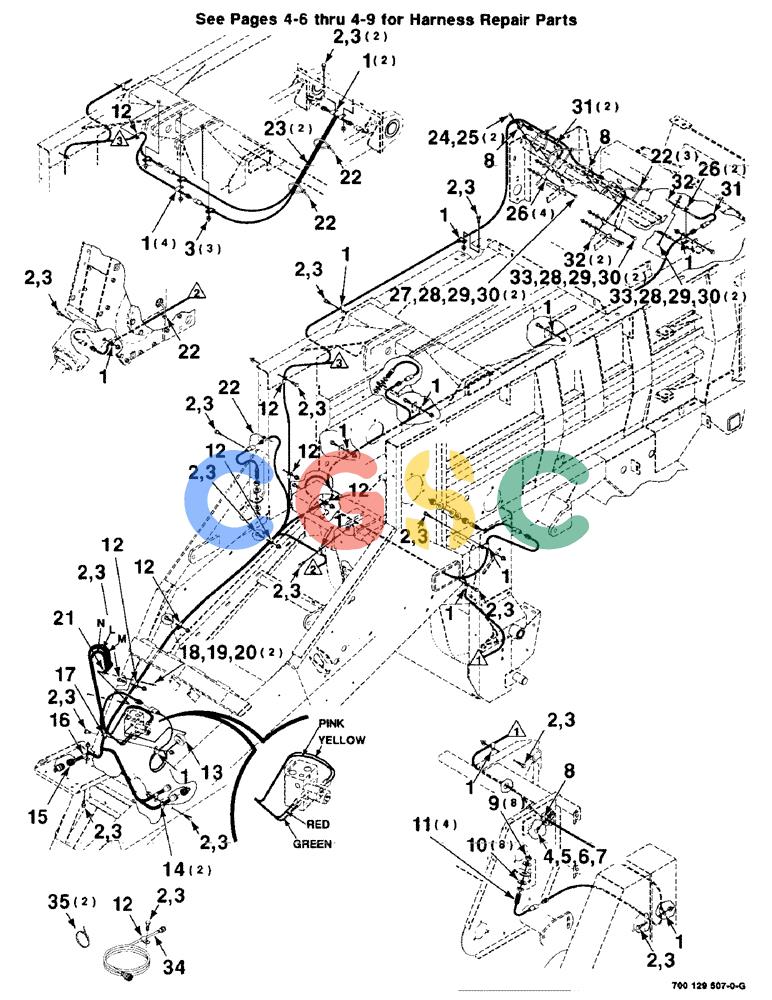

| 1. |
515-2395
|
[19] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86572009
|
| 2. |
121-226
|
[18] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 3. |
232-5316
|
[21] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 4. |
433-512
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 5. |
496-21034
|
[1] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 6. |
492-11031
|
[1] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 7. |
425-105
|
[1] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 8. |
700708090
|
[3] |
CLAMP
|
L
3/8 CLAMP Superseded by part number: 86637978
|
| 9. |
425-1512
|
[8] |
JAM NUT,Jam, 3/4"-10, G5
|
IH
3/4-16 HJN GR2 Superseded by part number: 219758
|
| 10. |
705566
|
[8] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 11. |
700706398
|
[4] |
SENSOR
|
CAS
PTO SENSOR
|
| 12. |
515-23159
|
[8] |
CLAMP,5/8", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86594406
|
| 13. |
70013064
|
[1] |
PRESSURE TRANSDUCER ASM
|
|
| 14. |
515-25127
|
[2] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Superseded by part number: 86632595
|
| 15. |
700713985
|
[1] |
HARNESS
|
CAS
-WIRE, MAIN
|
| 16. |
S95446
|
[1] |
CLAMP,1 5/16", Insul, 1/2" Bolt
|
CAS
1-1/4 CLAMP
|
| 17. |
515-23190
|
[1] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86624005
|
| 18. |
700710188
|
[2] |
SCREW
|
CAS
#6-32 X 3/4 CRPHMS GR2 STLNS
|
| 19. |
492-11006
|
[2] |
LOCK WASHER,#6
|
CAS
Washer, Lock, #6 Superseded by part number: 87276
|
| 20. |
225-14106
|
[2] |
NUT,#6-32
|
CAS
Superseded by part number: 88458, 87779111
|
| 21. |
700706645
|
[1] |
TERMINAL STRIP
|
CAS
STRIP
|
| 22. |
L18337
|
[7] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 23. |
700710751
|
[2] |
HARNESS
|
CAS
CABLE
|
| 24. |
163-16
|
[2] |
SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"
|
CAS
1/4-20 X 3/4 HWHMS
|
| 25. |
1703354
|
[2] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 26. |
751321
|
[6] |
CLAMP
|
CAS
1/4 CLAMP Superseded by part number: 80272535
|
| 27. |
413-412
|
[2] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
|
CAS
Superseded by part number: 9707580, 72187189
|
| 28. |
496-11028
|
[6] |
WASHER,9/32" x 5/8" x .065, HDN
|
CAS
1/4 HARDENED PLAIN WASHER Superseded by part number: 86632587
|
| 29. |
492-11025
|
[6] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 30. |
425-104
|
[6] |
NUT,1/4"-20, Cl 5
|
CAS
Superseded by part number: 7770, 72187220
|
| 31. |
700113863
|
[3] |
SENSOR
|
CAS
SWITCH ASSEMBLY
|
| 32. |
700706340
|
[3] |
MAGNET
|
CAS
|
| 33. |
434-412
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
|
CAS
1/4-20 X 3/4 RHSNB Superseded by part number: 280638
|
| 34. |
700706459
|
[1] |
WIRE HARNESS
|
CAS
HARNESS-CABLE
|
| 35. |
529070
|
[2] |
CABLE TIE,368.3mm L
|
NH
TIE-CABLE
|
