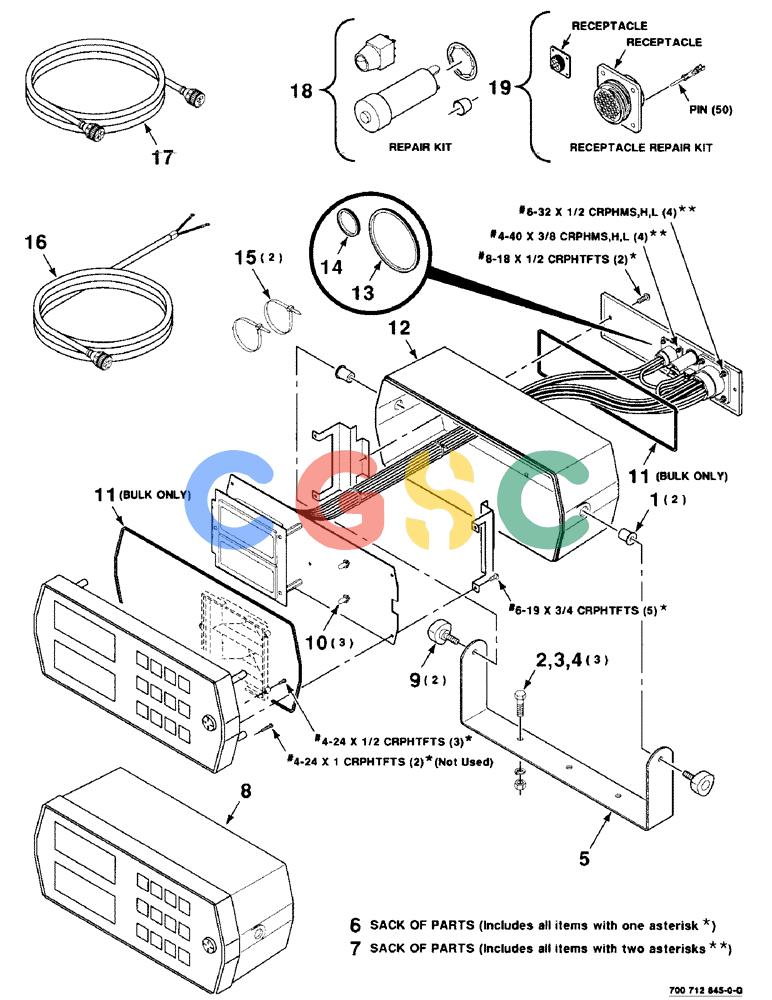

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (4-04) - CONSOLE CONTROL BOX ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
374 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700707294
|
[2] |
PUSH-ON NUT
|
CAS
RUBBER WELL NUT Superseded by part number: 694147
|
| 2. |
51200165
|
[3] |
SCREW,Hex, 1/4"-20 x 1", G5
|
HFI
1/4-20 X 1 C
|
| 3. |
492-11025
|
[3] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 4. |
425-104
|
[3] |
NUT,1/4"-20, Cl 5
|
CAS
Superseded by part number: 7770, 72187220
|
| 5. |
700114077
|
[1] |
SUPPORT
|
CAS
-CONTROL BOX
|
| 6. |
700707378
|
[1] |
KIT
|
CAS
SACK OF PARTS, Includes Items in art marked with Asterisk
|
| 7. |
700707377
|
[1] |
KIT
|
CAS
SACK OF PARTS, Includes Items in art marked with Asterisk
|
| 8. |
700715031
|
[1] |
CONSOLE
|
CAS
CONTROL BOX COMPLETE, (Includes Ref: 6, 7, 10, 11, 12, 13, 14, 21 and 22) Superseded by part number: 700720301
|
| 9. |
700707295
|
[2] |
KNOB
|
CAS
|
| 10. |
700707457
|
[3] |
BULB
|
CAS
LAMP AND HOLDER
|
| 11. |
700707383
|
[1] |
GASKET
|
CAS
-SPONGE CORD (BULK-10 FOOT)
|
| 12. |
700707296
|
[1] |
PANEL
|
CAS
COVER
|
| 13. |
700711660
|
[1] |
SEAL
|
CAS
Superseded by part number: S114398
|
| 14. |
700712102
|
[1] |
SEAL
|
CAS
|
| 15. |
L18337
|
[2] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 16. |
700707598
|
[1] |
WIRE HARNESS
|
IH
CABLE ASSEMBLY (USED FROM CONTROLLER TO BATTERY)
|
| 17. |
700712135
|
[1] |
WIRE HARNESS
|
CAS
CABLE ASSEMBLY (USED FROM CONTROLLER TO AUXILIARY POWER SOURCE)
|
| 18. |
700707382
|
[1] |
REPAIR KIT
|
CAS
KIT-REPAIR
|
| 19. |
700712134
|
[1] |
REPAIR KIT
|
CAS
KIT-RECEPTACLE REPAIR
|
