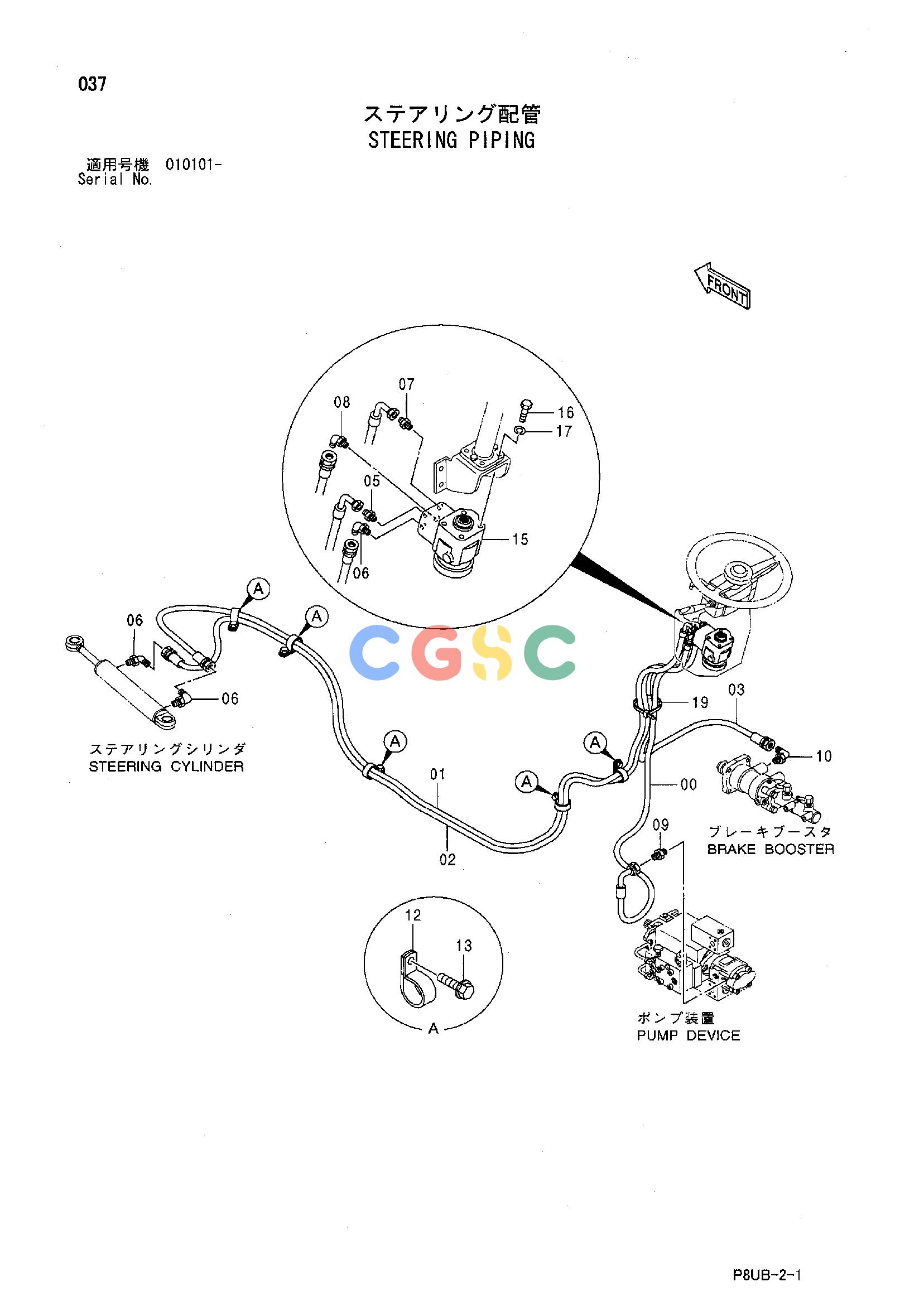

日立零件查询（CP210）STEERING PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
735 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 424138 | [1] | HOSE | |
| 01. | 424145 | [1] | HOSE | |
| 02. | 424137 | [1] | HOSE | |
| 03. | 424104 | [1] | HOSE | |
| 05. | 424076 | [1] | ADAPTER;S | |
| 05A. | 947519 | [1] | O-RING | |
| 06. | 424048 | [3] | ELBOW;S | |
| 06A. | 947519 | [1] | O-RING | |
| 07. | 424094 | [1] | ADAPTER;S | |
| 07A. | 947519 | [1] | O-RING | |
| 08. | 424091 | [1] | ELBOW;S | |
| 08A. | 947519 | [1] | O-RING | |
| 09. | 424085 | [1] | ADAPTER;S | |
| 09A. | 430623 | [1] | O-RING | |
| 10. | 424049 | [1] | ELBOW;S | |
| 10A. | 430623 | [1] | O-RING | |
| 12. | 424069 | [5] | CLIP | |
| 13. | 500048 | [5] | BOLT;SEMS | |
| 15. | 424312 | [1] | VALVE;STEERING | |
| 16. | 502036 | [4] | BOLT | |
| 17. | 604006 | [4] | WASHER;SPRING | |
| 19. | 424646 | [1] | CLIP;BAND | |
