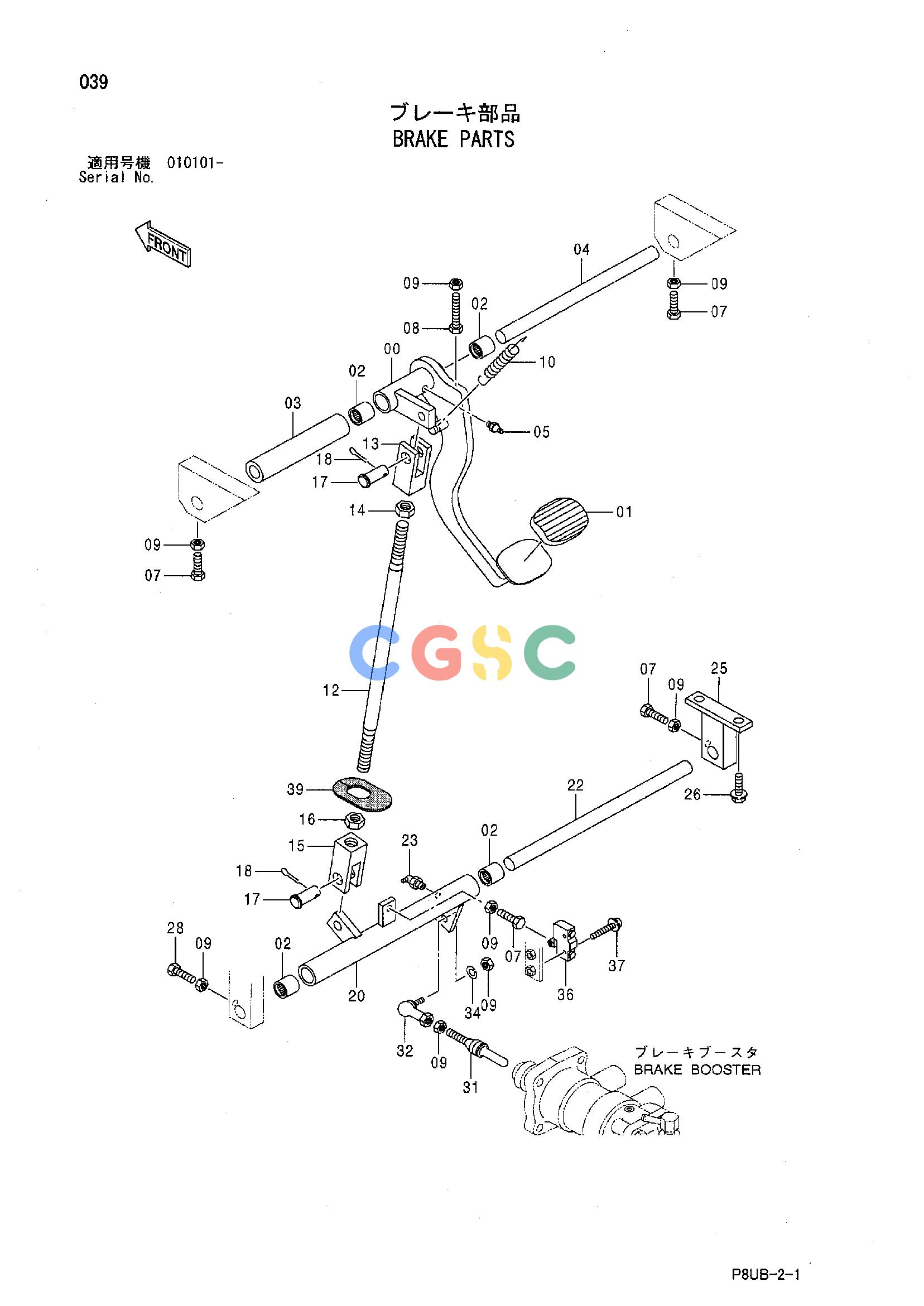

日立零件查询（CP210）BRAKE PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
638 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 424173 | [1] | PEDAL | |
| 01. | 424151 | [1] | COVER | |
| 02. | 424027 | [4] | BRG.;NEEDLE | |
| 03. | 424329 | [1] | SPACER | |
| 04. | 424133 | [1] | PIN | |
| 05. | 310001 | [1] | FITTING;GREASE | |
| 07. | 424216 | [4] | BOLT | |
| 08. | 424217 | [1] | BOLT | |
| 09. | 947855 | [8] | NUT | |
| 10. | 424015 | [1] | SPRING;TENSION | |
| 12. | 424327 | [1] | ROD | |
| 13. | 424040 | [1] | END;FORK(R) | |
| 14. | 947857 | [1] | NUT | |
| 15. | 424041 | [1] | END;FORK(L) | |
| 16. | 424212 | [1] | NUT;L | |
| 17. | 424186 | [2] | PIN | |
| 18. | 630012 | [2] | PIN;SPLIT | |
| 20. | 424497 | [1] | LEVER | |
| 22. | 424330 | [1] | PIN | |
| 23. | 310040 | [1] | FITTING;GREASE | |
| 25. | 426352 | [1] | BRACKET | |
| 26. | 500035 | [2] | BOLT;SEMS | |
| 28. | 500157 | [1] | BOLT | |
| 31. | 424328 | [1] | ROD | |
| 32. | 928066 | [1] | JOINT;BALL | |
| 34. | 947887 | [1] | WASHER;SPRING | |
| 36. | 424112 | [1] | SWITCH;LIMIT | |
| 37. | 424197 | [2] | SCREW;SEMS | |
| 39. | 424156 | [1] | RUBBER | |
