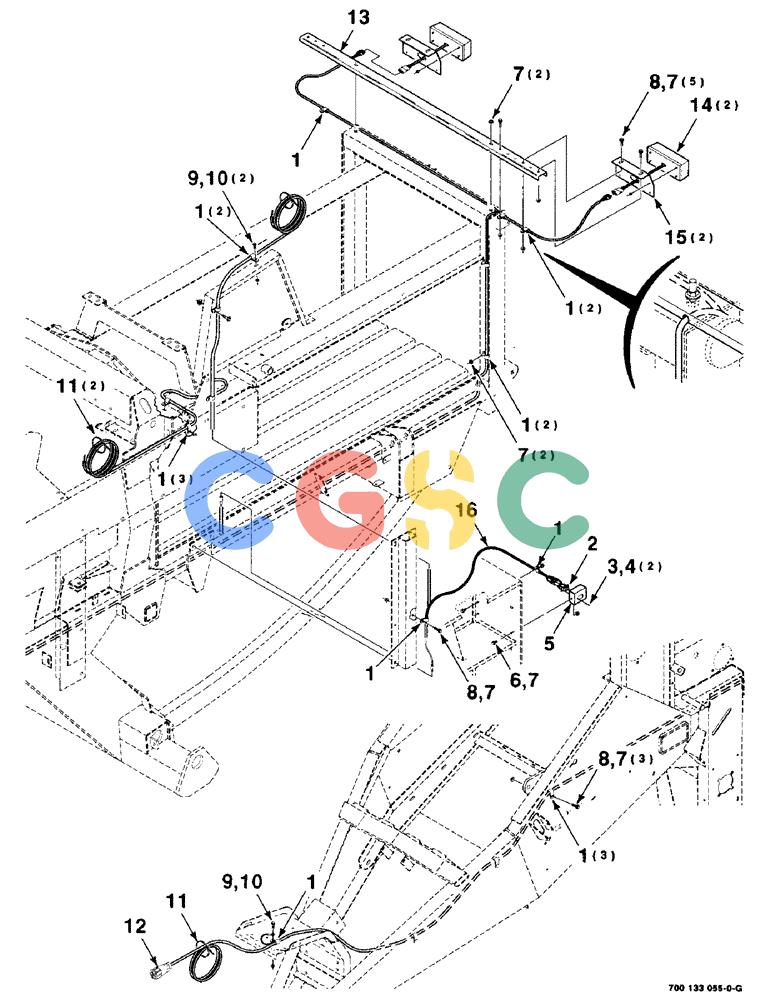

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (4-06) - LIGHTS ASSEMBLY, TAIL AND FLASHER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1013 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
515-2395
|
[16] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86572009
|
| 2. |
700715143
|
[1] |
SWITCH
|
CAS
-ROCKER
|
| 3. |
440-1066
|
[2] |
SCREW,Cross Pan Hd, #6-32 x 3/8"
|
CAS
#6-32 X 3/8 CRPHMS GR 60M
|
| 4. |
492-11006
|
[2] |
LOCK WASHER,#6
|
CAS
Washer, Lock, #6 Superseded by part number: 87276
|
| 5. |
700133171
|
[1] |
SUPPORT
|
HFI
-SWITCH
|
| 6. |
409-7612
|
[1] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 7. |
232-5316
|
[14] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 8. |
121-226
|
[9] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 9. |
121-108
|
[3] |
BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr
|
CAS
5/16-18 X 1 HWHMS
|
| 10. |
232-5315
|
[3] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 11. |
529070
|
[3] |
CABLE TIE,368.3mm L
|
NH
TIE-CABLE
|
| 12. |
700715892
|
[1] |
HARNESS
|
CAS
-LIGHTS
|
| 13. |
700123423
|
[1] |
CHANNEL
|
CAS
|
| 14. |
700714721
|
[2] |
LAMP
|
CAS
LIGHT-TAIL
|
| 15. |
700133170
|
[2] |
COVER PLATE
|
HFI
PLATE-LIGHT Superseded by part number: 700133748
|
| 16. |
700715773
|
[1] |
HARNESS
|
CAS
-WIRE
|
