纽荷兰零件查询(FD14E) - CRAWLER DOZER (96.7130[001]) - COLD WEATHER STARTING AID New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
246 次

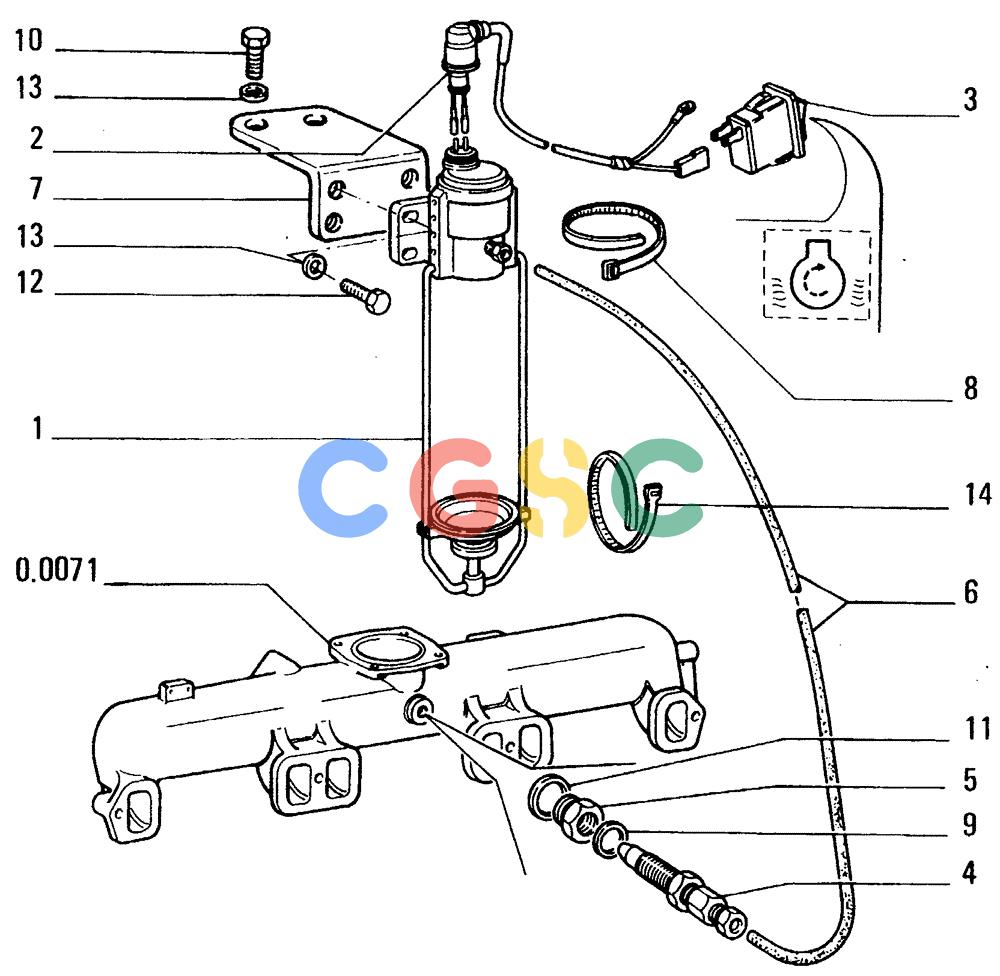

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79072961 | [1] | SUPPORT | LEC |
| 2. | 79093735 | [1] | ELECTRIC CABLE | LECCABLE |
| 3. | 79070430 | [1] | SWITCH | LEC |
| 4. | 79075454 | [1] | NOZZLE | LEC |
| 5. | 4663081 | [1] | HYD CONNECTOR,1/2" x M10 x 1 | TORFITTING |
| 6. | 76009059 | [1] | HOSE,2.00 mm ID | LEC2.00 mm ID |
| 7. | 79093741 | [1] | BRACKET | LEC |
| 8. | 79013422 | [15] | CABLE TIE,145mm L | LECSTRAP, CABLE, 145mm L |
| 9. | 10284460 | [1] | WASHER,M10.2 x 16 x 1.5, Copper | IMOWASHER, SEALING, M10.2 x 16 x 1.5, Copper |
| 10. | 16043334 | [2] | BOLT,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043331 |
| 11. | 79028876 | [1] | SEAL,21.5mm ID x 28.7mm OD x 2.5mm Thk | LECSEAL |
| 12. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHBBOLT, Hex, M8 x 25, 10.9 Superseded by part number: 43234 |
| 13. | 14496531 | [6] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 14. | 4982514 | [1] | CABLE TIE | LECCLAMP Superseded by part number: 87615202 |
